Fabricated & Custom Strainer Products
We can engineer, design and fabricate a strainer to satisfy a specific requirement. The items illustrated below represent only a few of the almost limitless fabricated shapes and sizes of strainers which we can supply.
- Simplex & Duplex Strainers

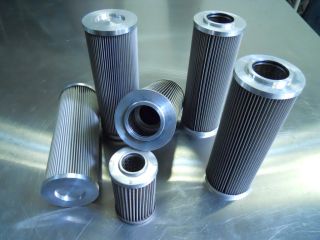

- Pleated Strainers
- Suction Strainer

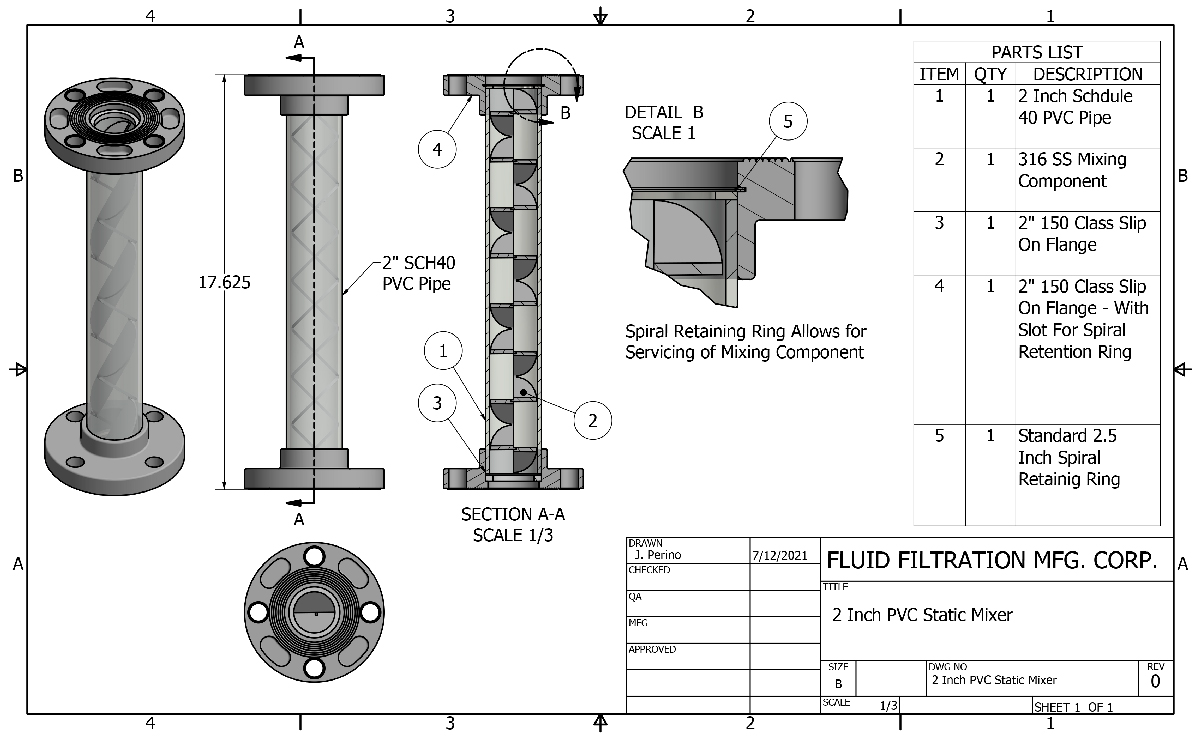

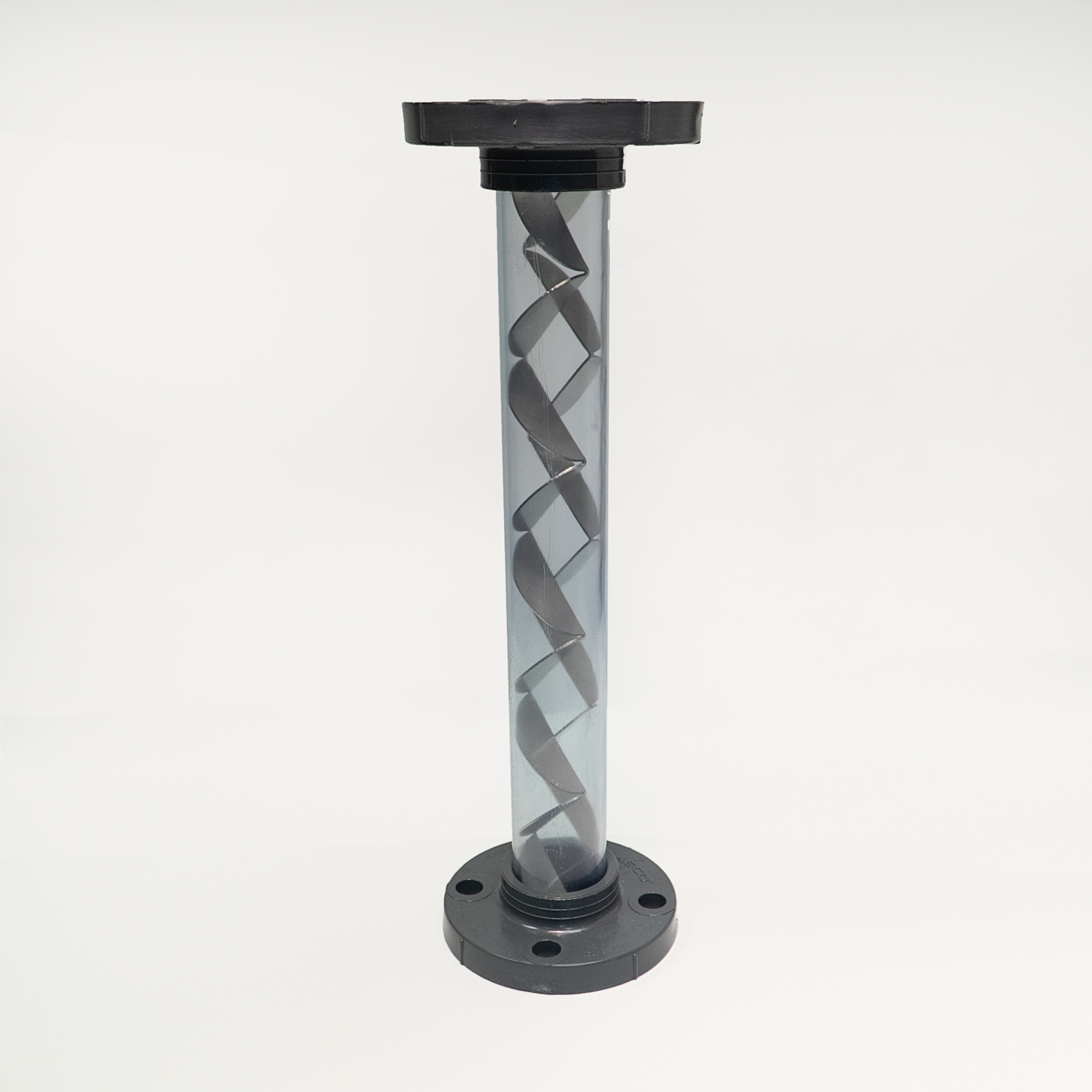

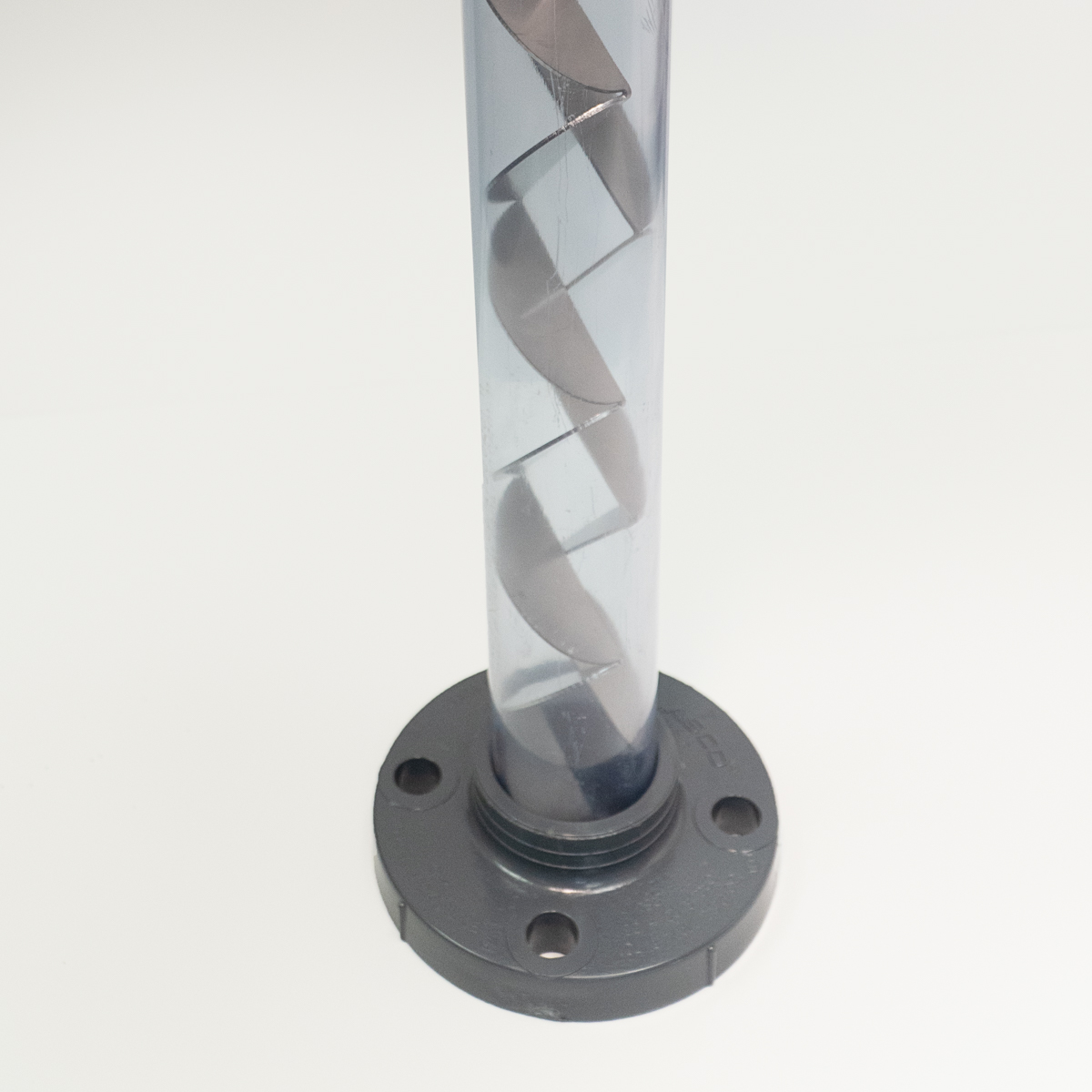

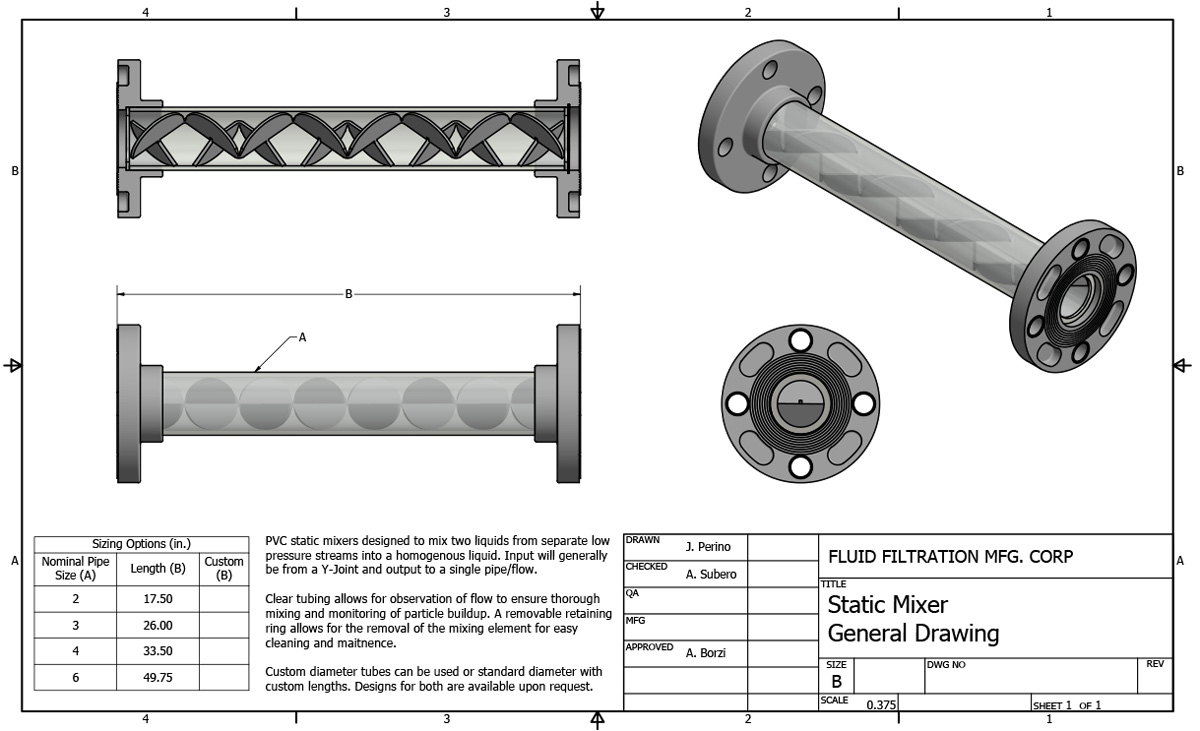

- Static Mixer
- Cartridge Housing
- Custom Products
Click above to preview all drawings |
|

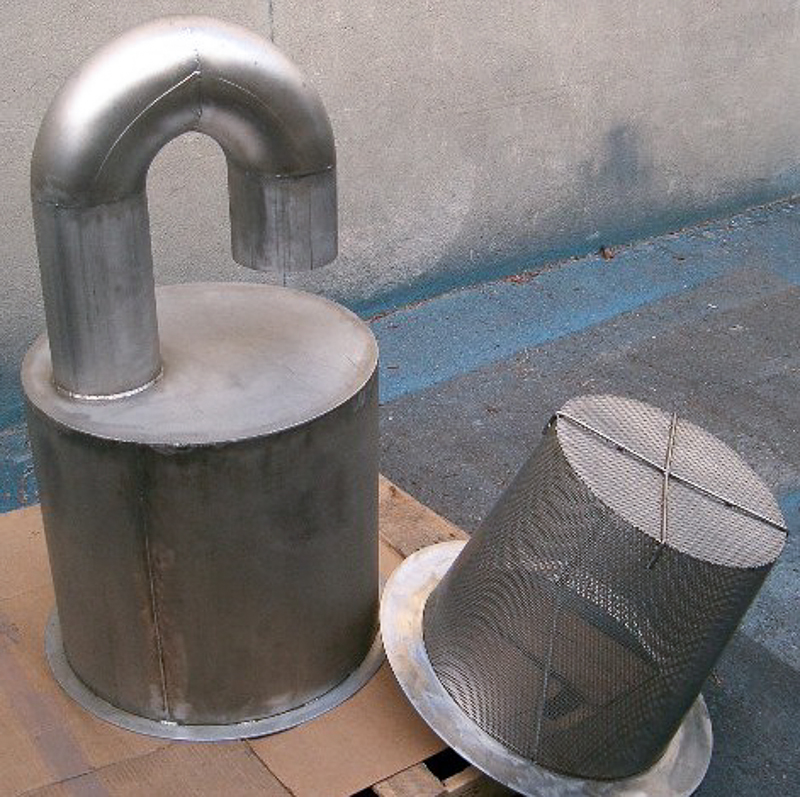

Stainless Steel 316 Housing with Inverted Cone Type Inner Screen.

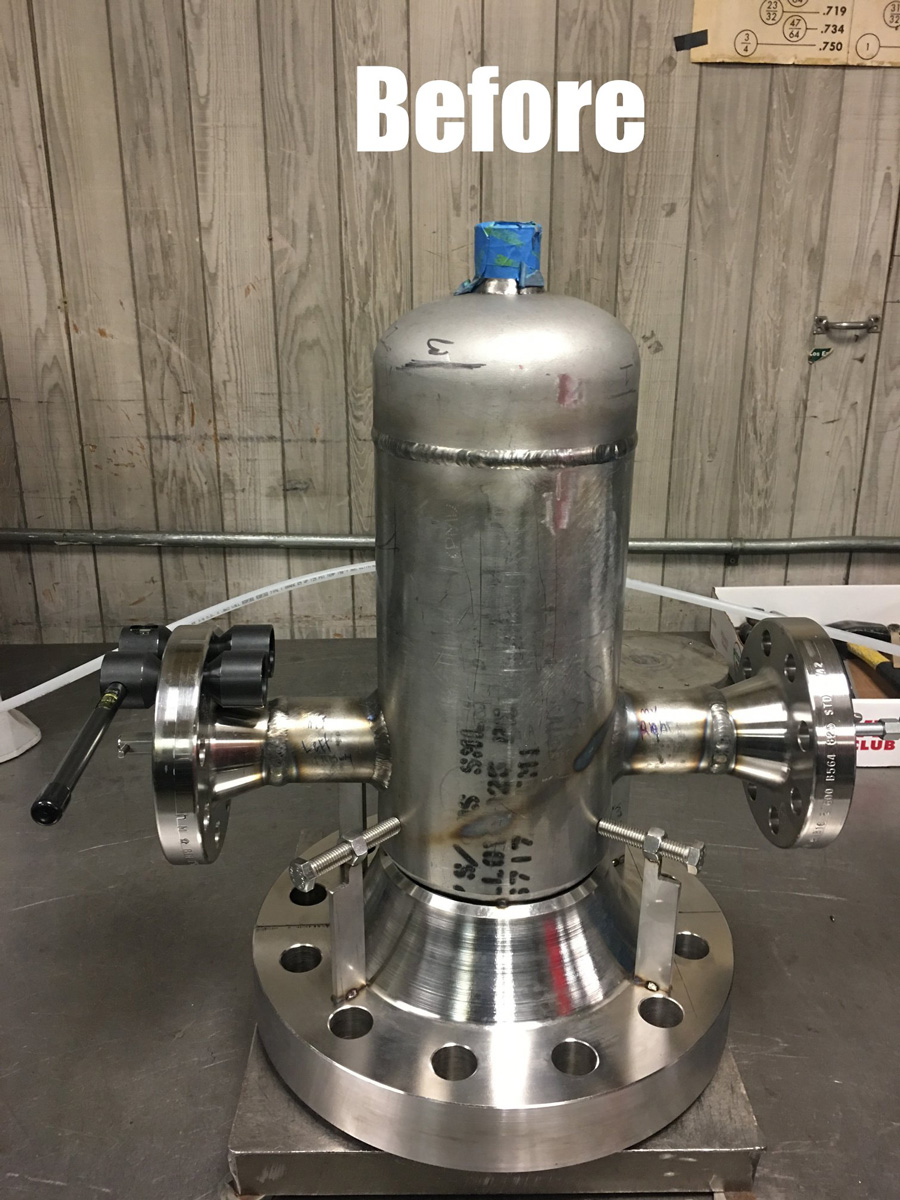

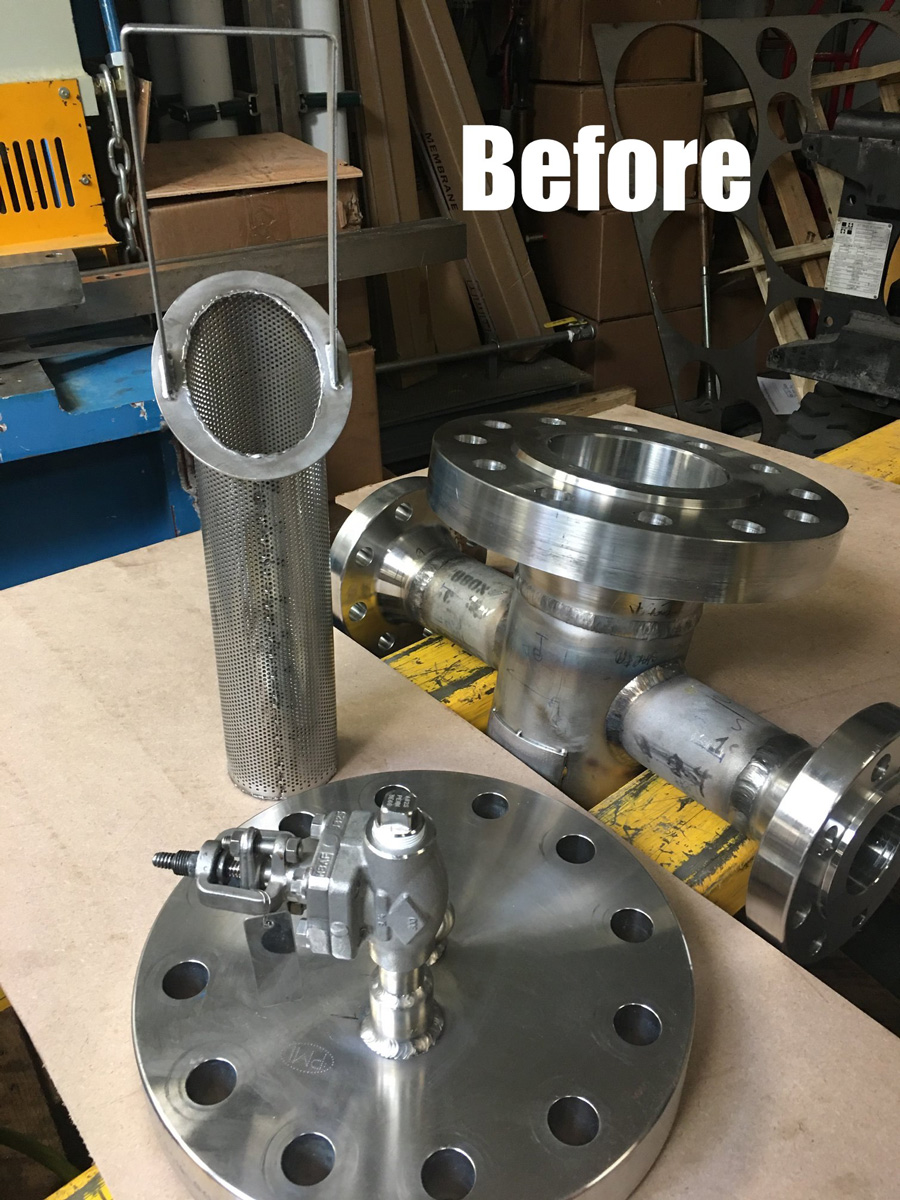

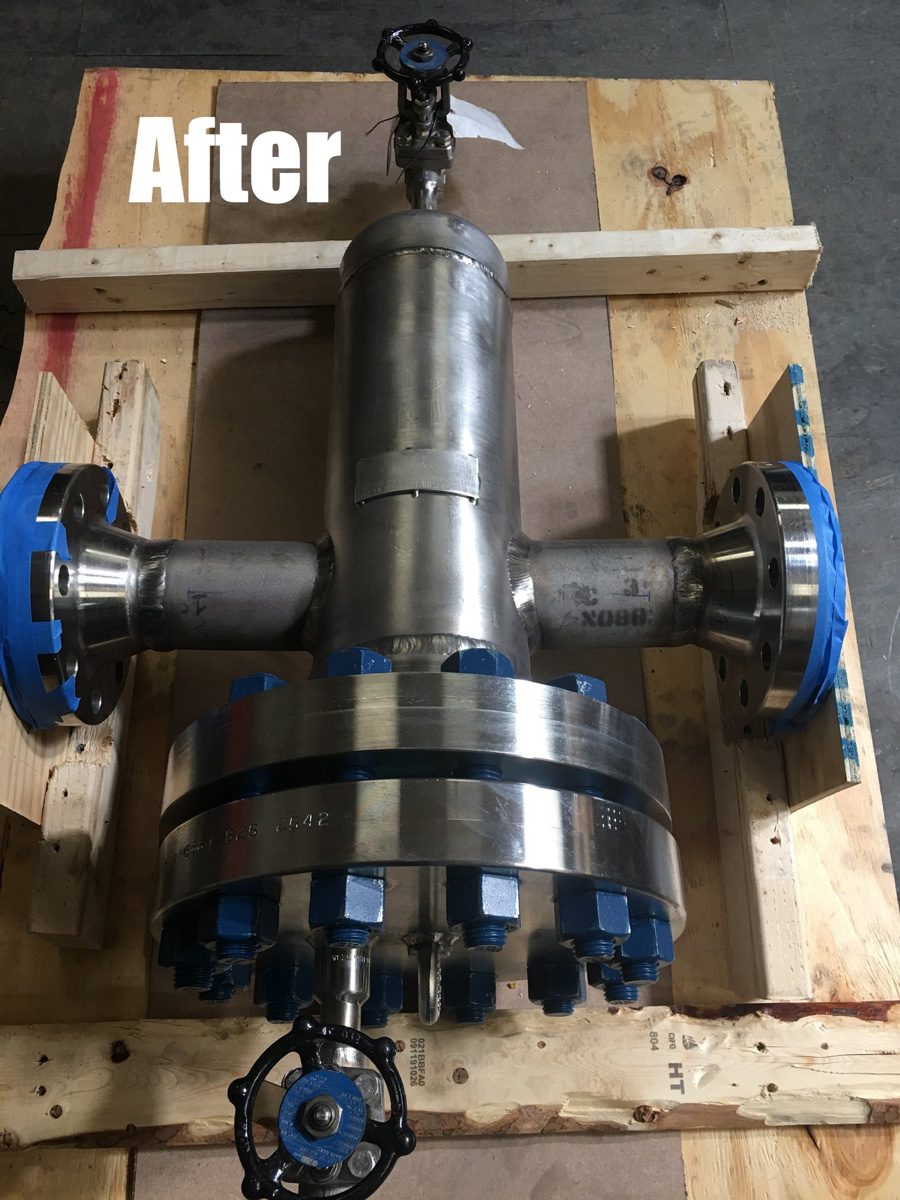

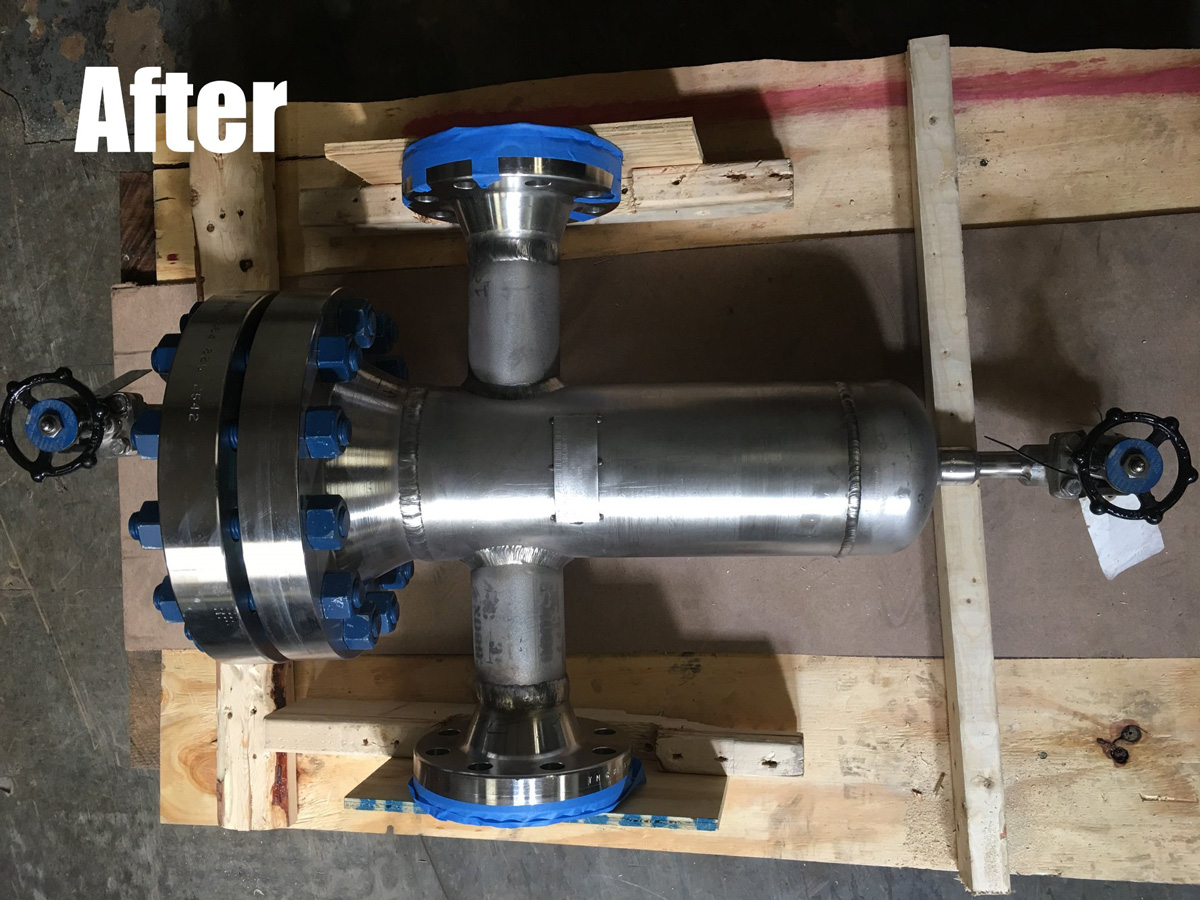

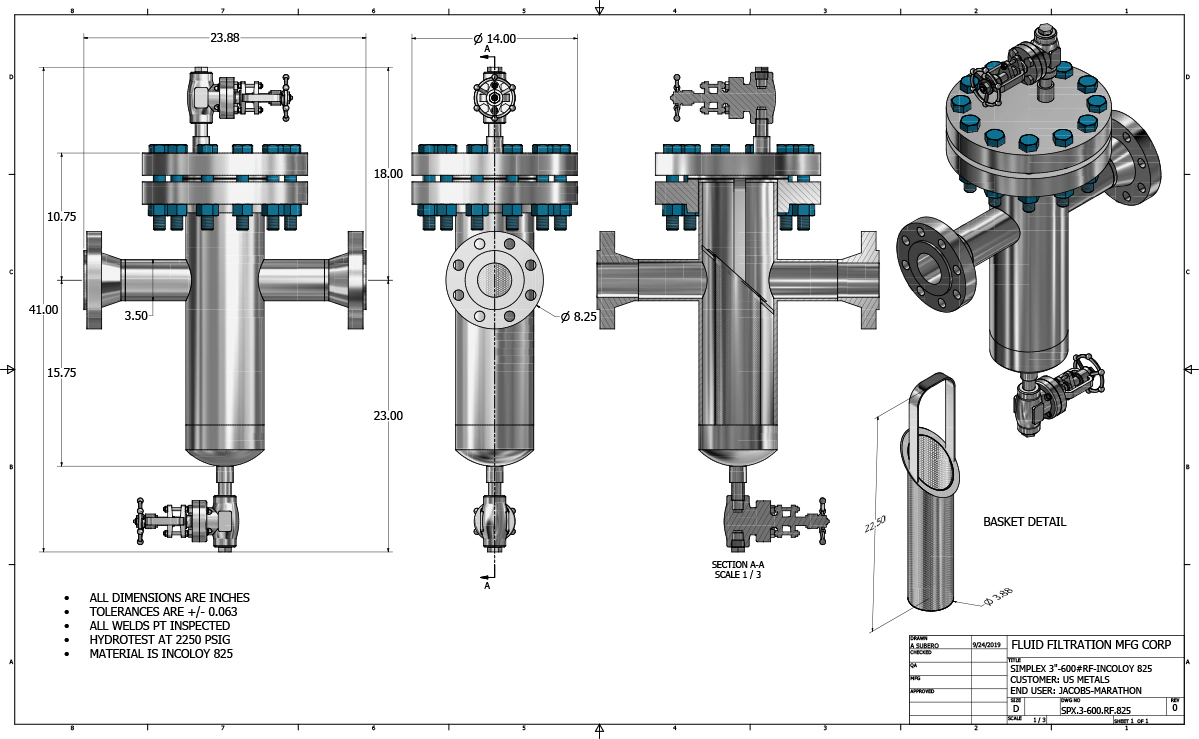

Incoloy 825 Fabricated Strainer Size 2.0" & 3.0". (before and after product)

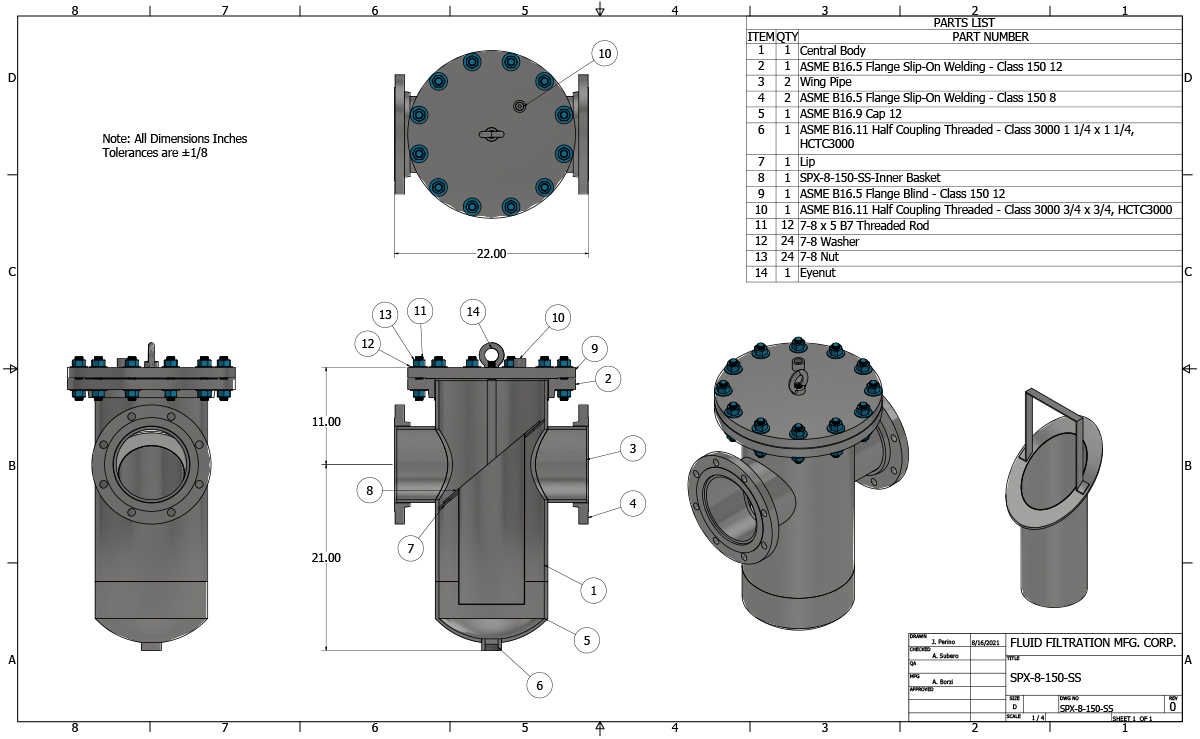

Fabricated simplex strainer, 316 Stainless Steel, size 8.0" 150# flange
Fabricated simplex strainer, 316 Stainless Steel, size 4.0" with easy opening tube turn cover

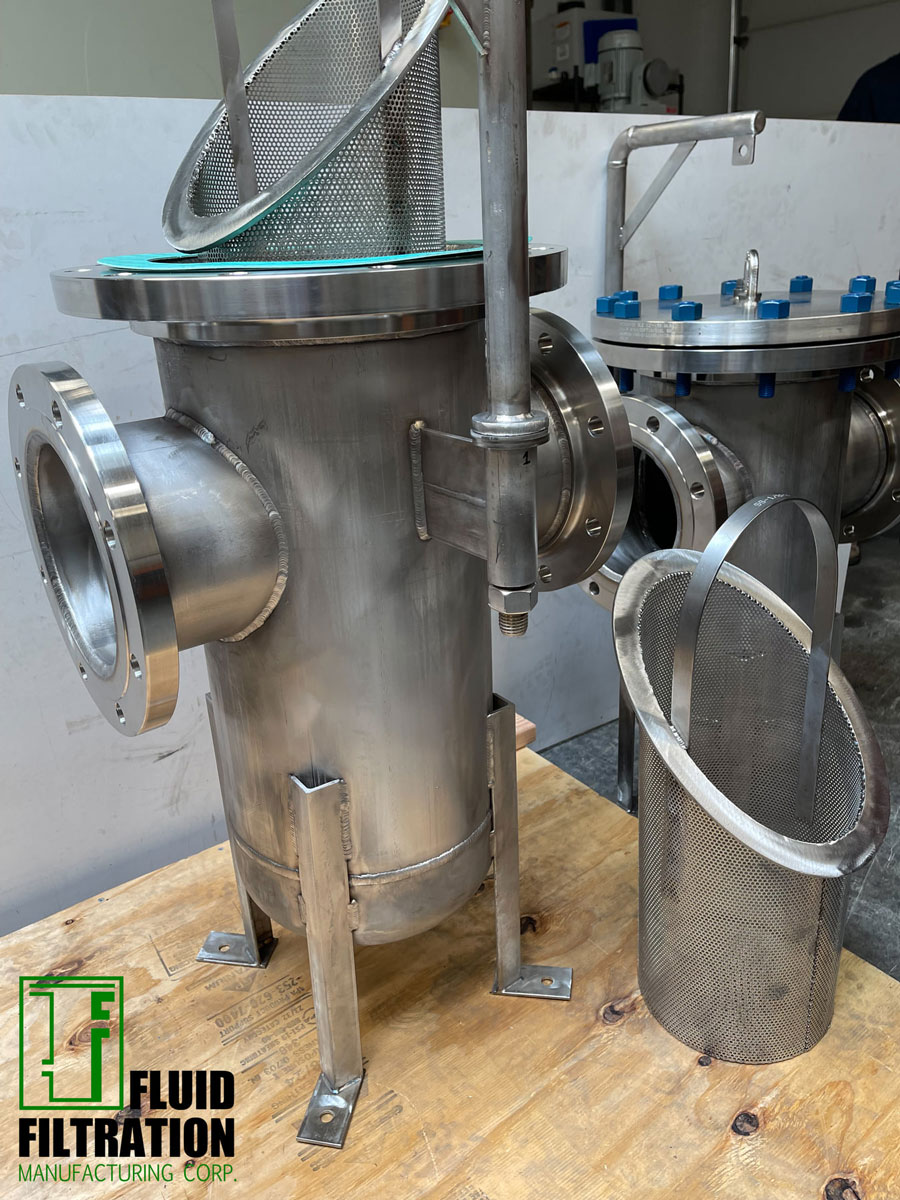

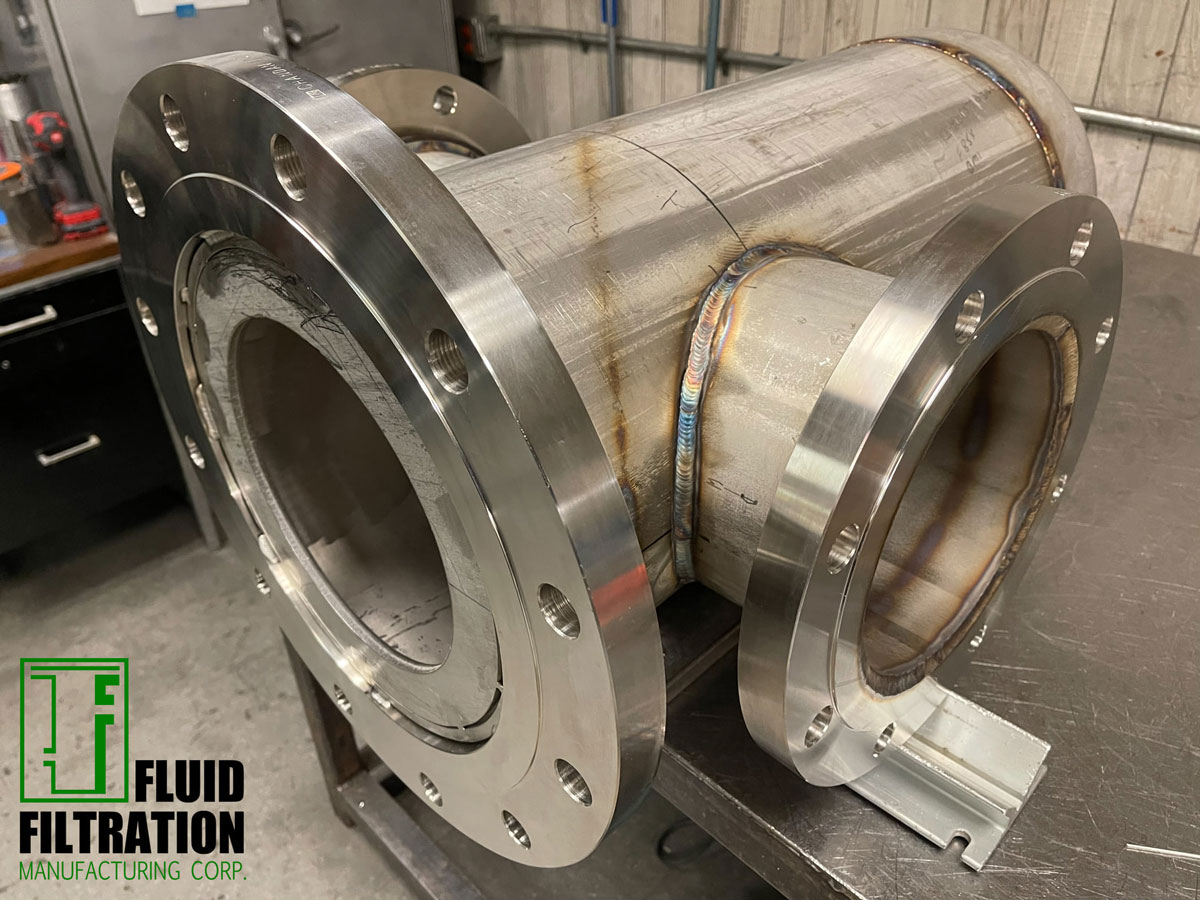

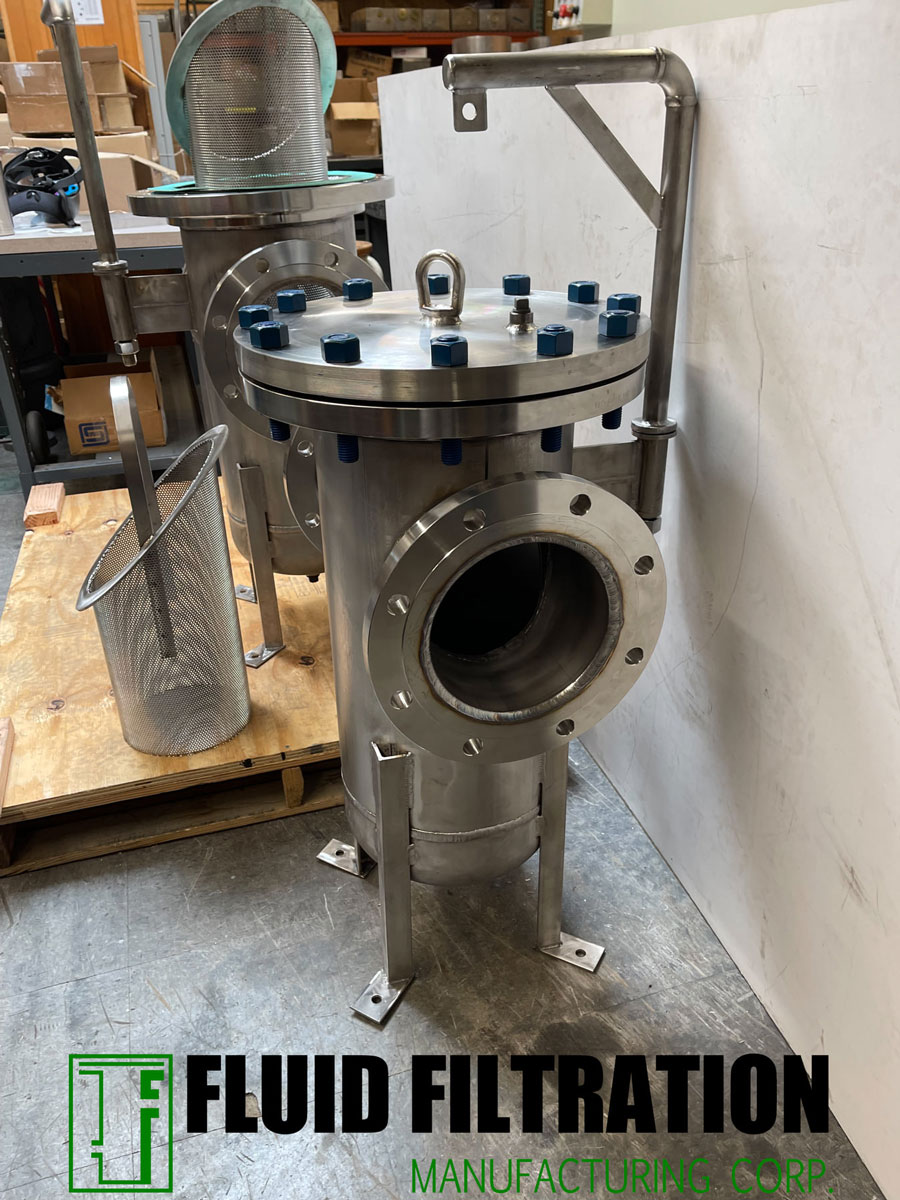

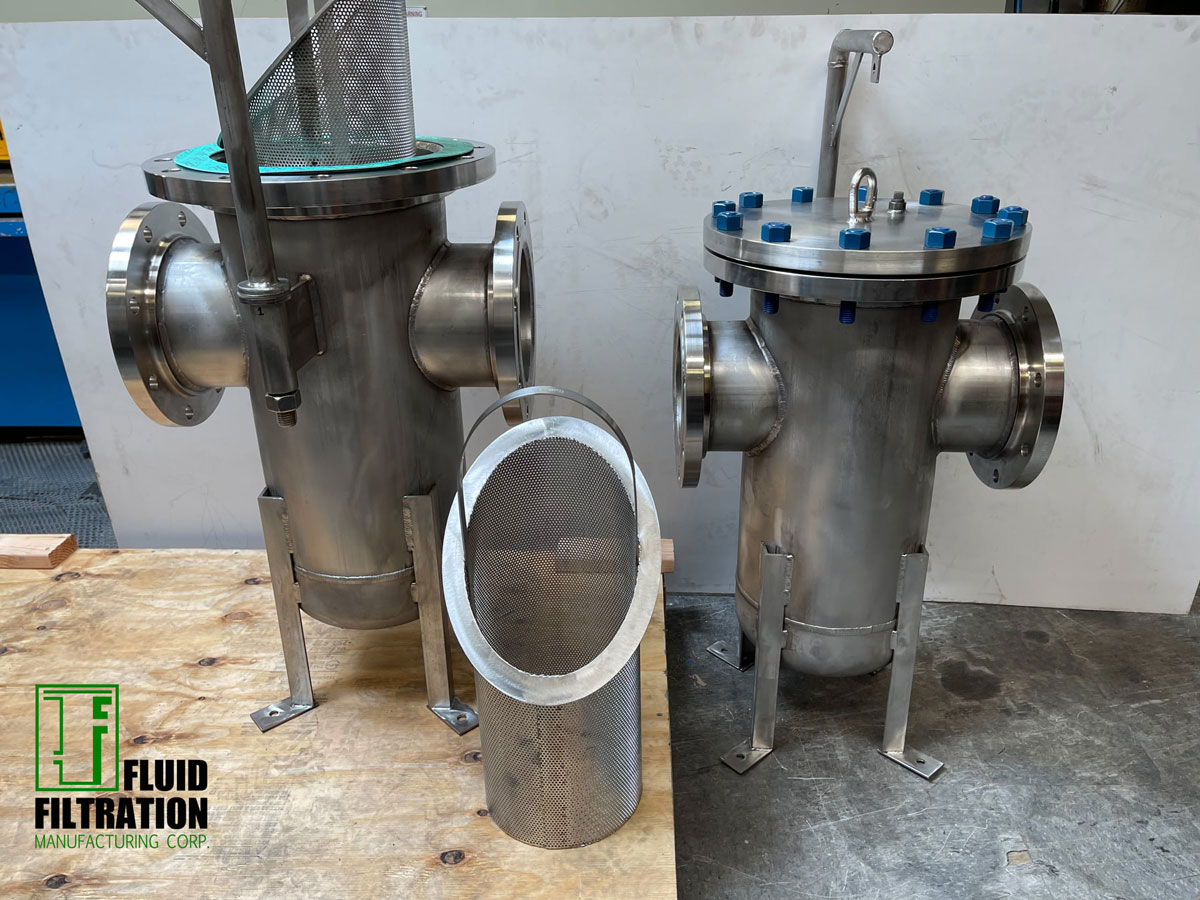

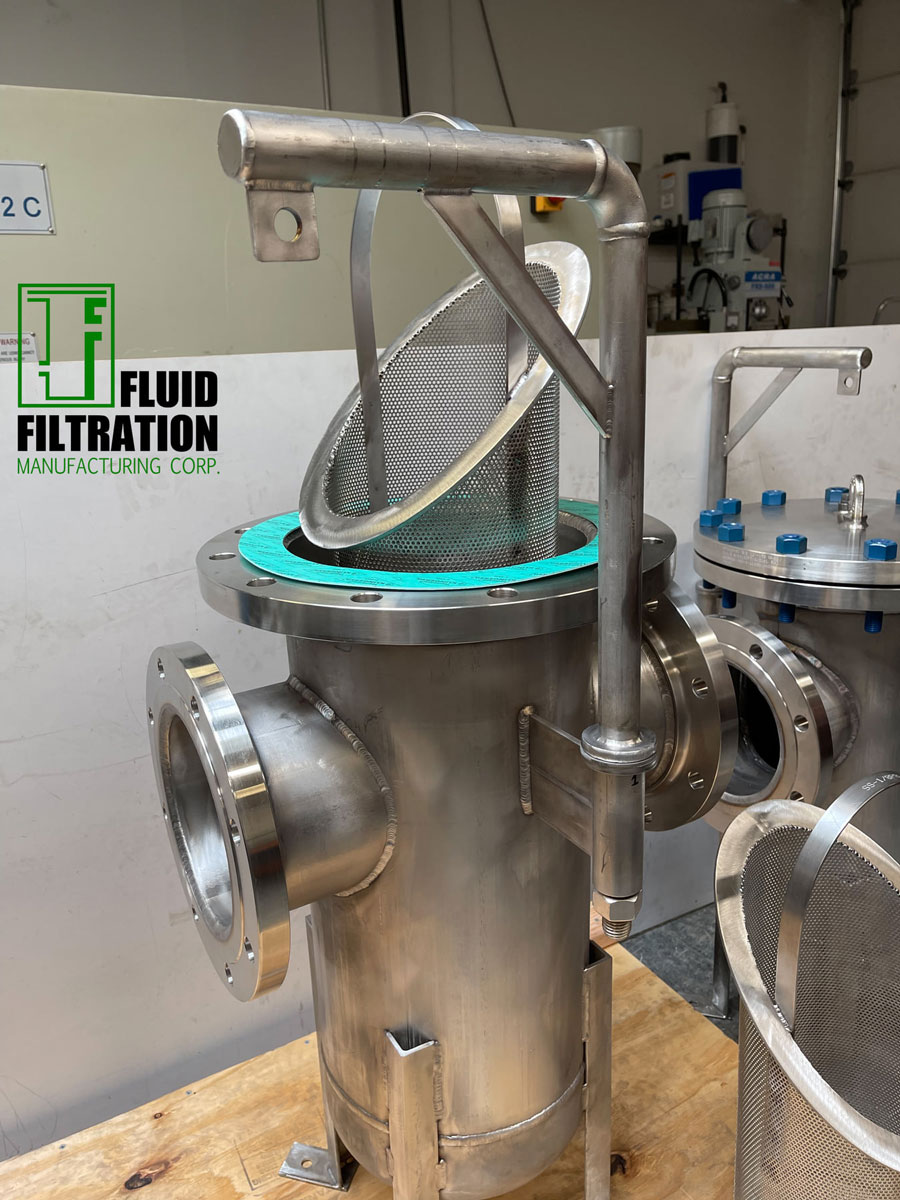

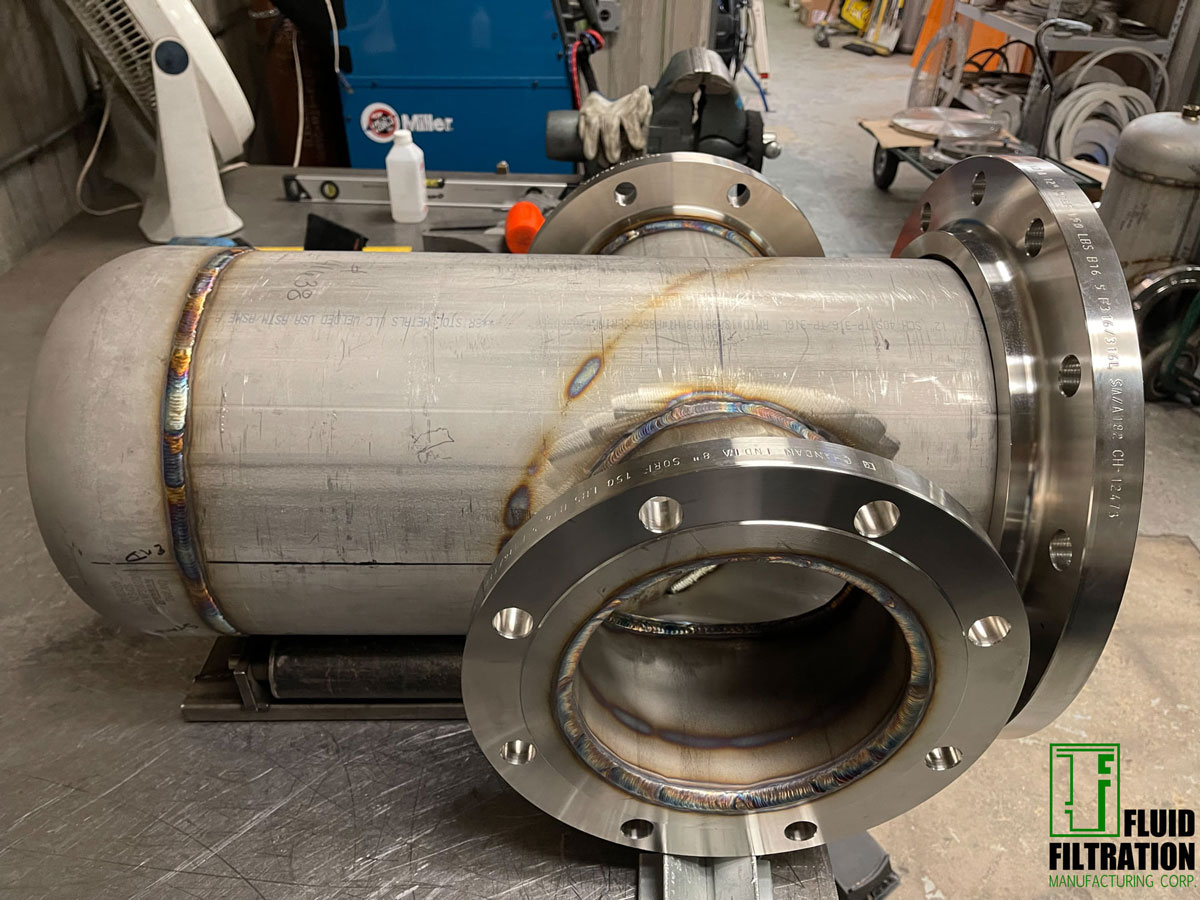

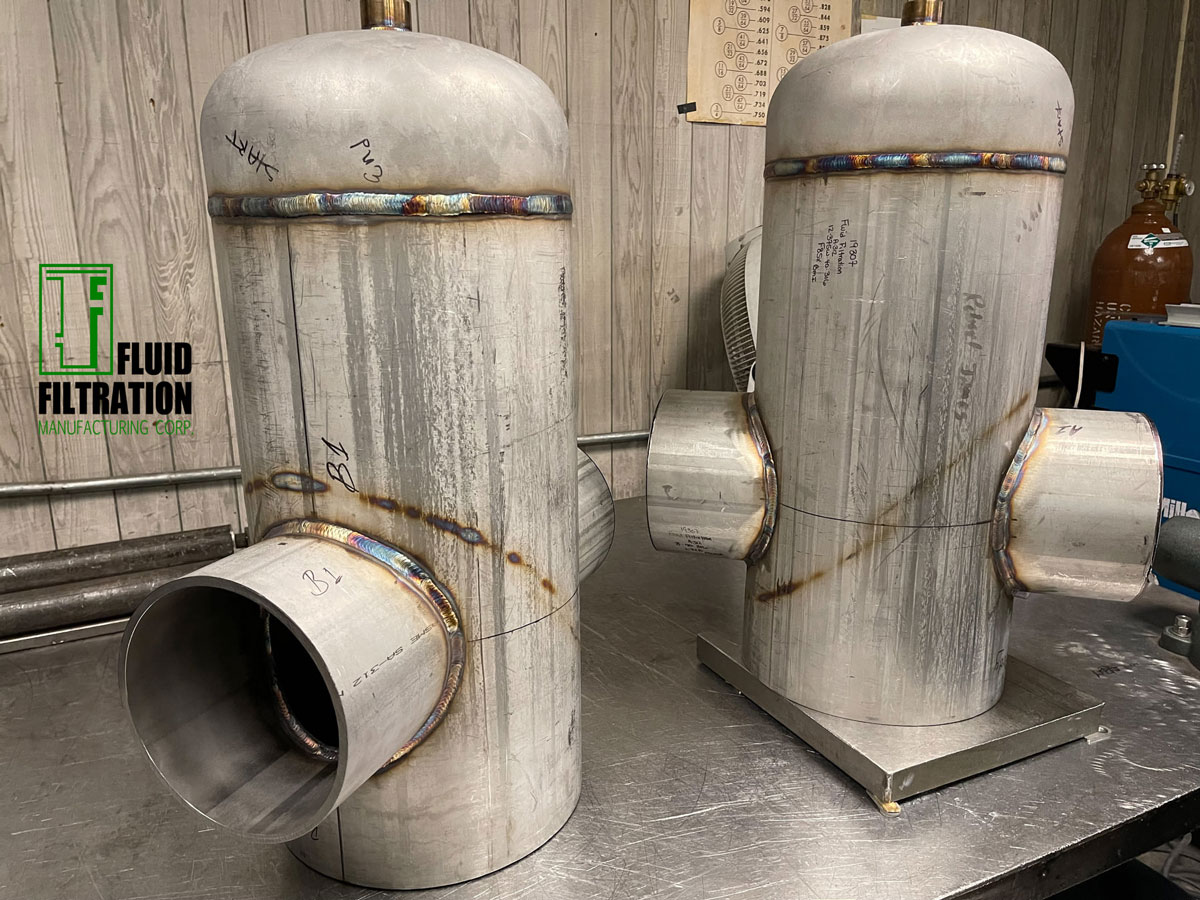

300 lbs. Flanged Fabricated Stainless Steel 316 Simplex Strainer with Davitt Arm for cover removal

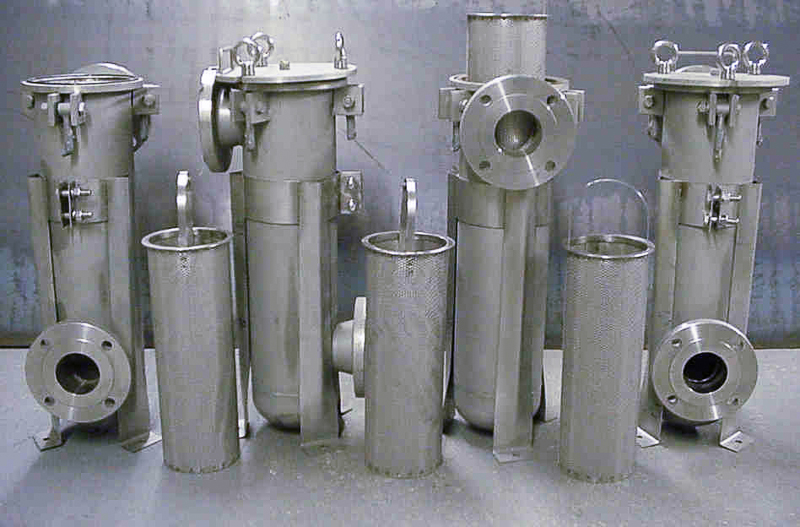

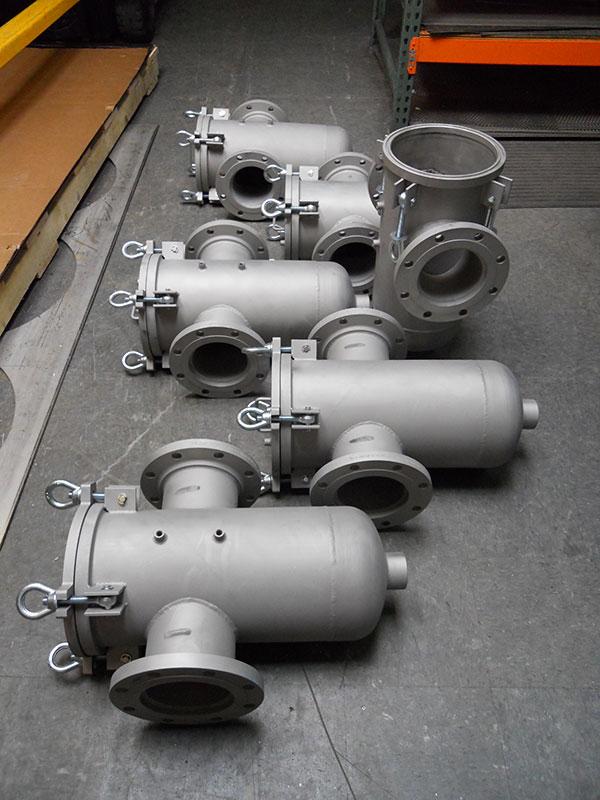

Fabricated Stainless Steel 316 simplex strainers

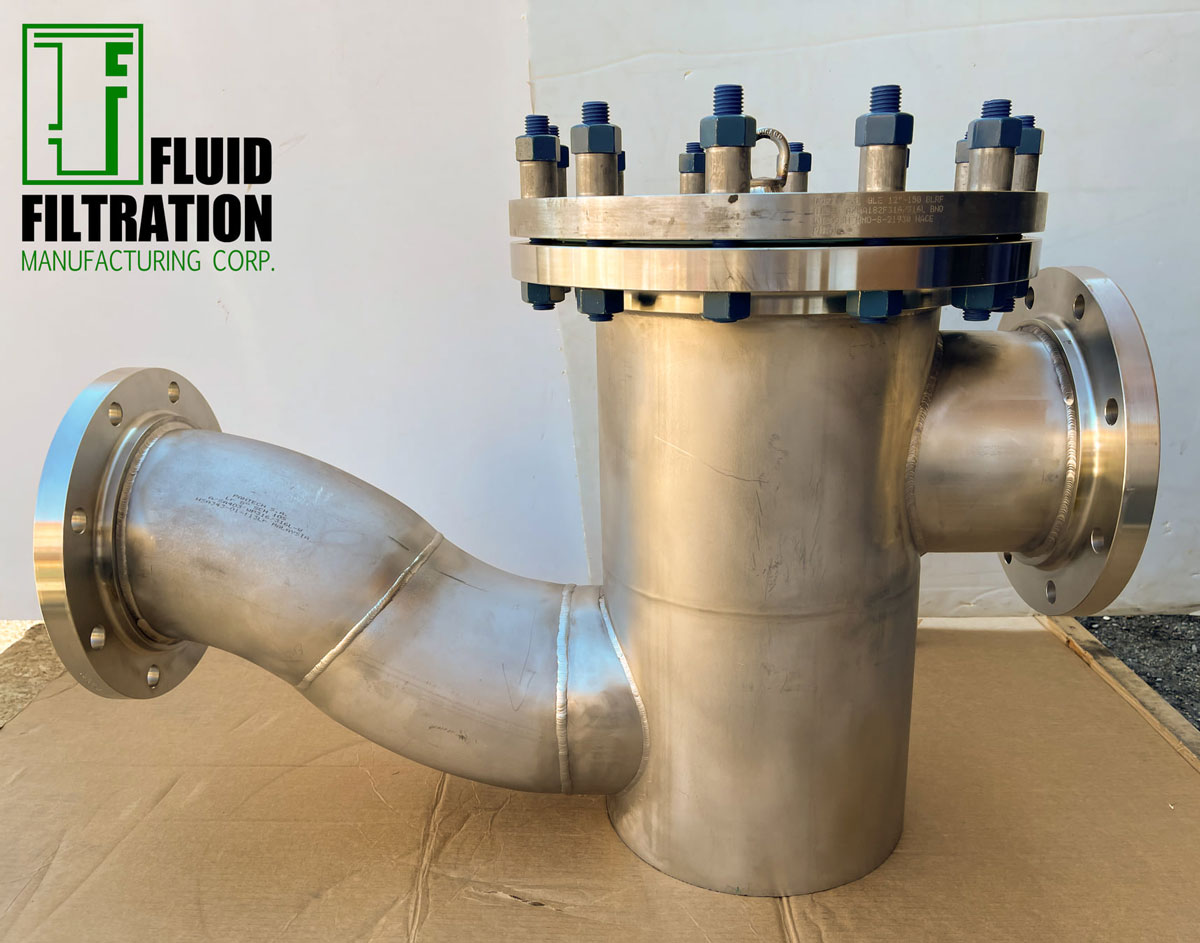

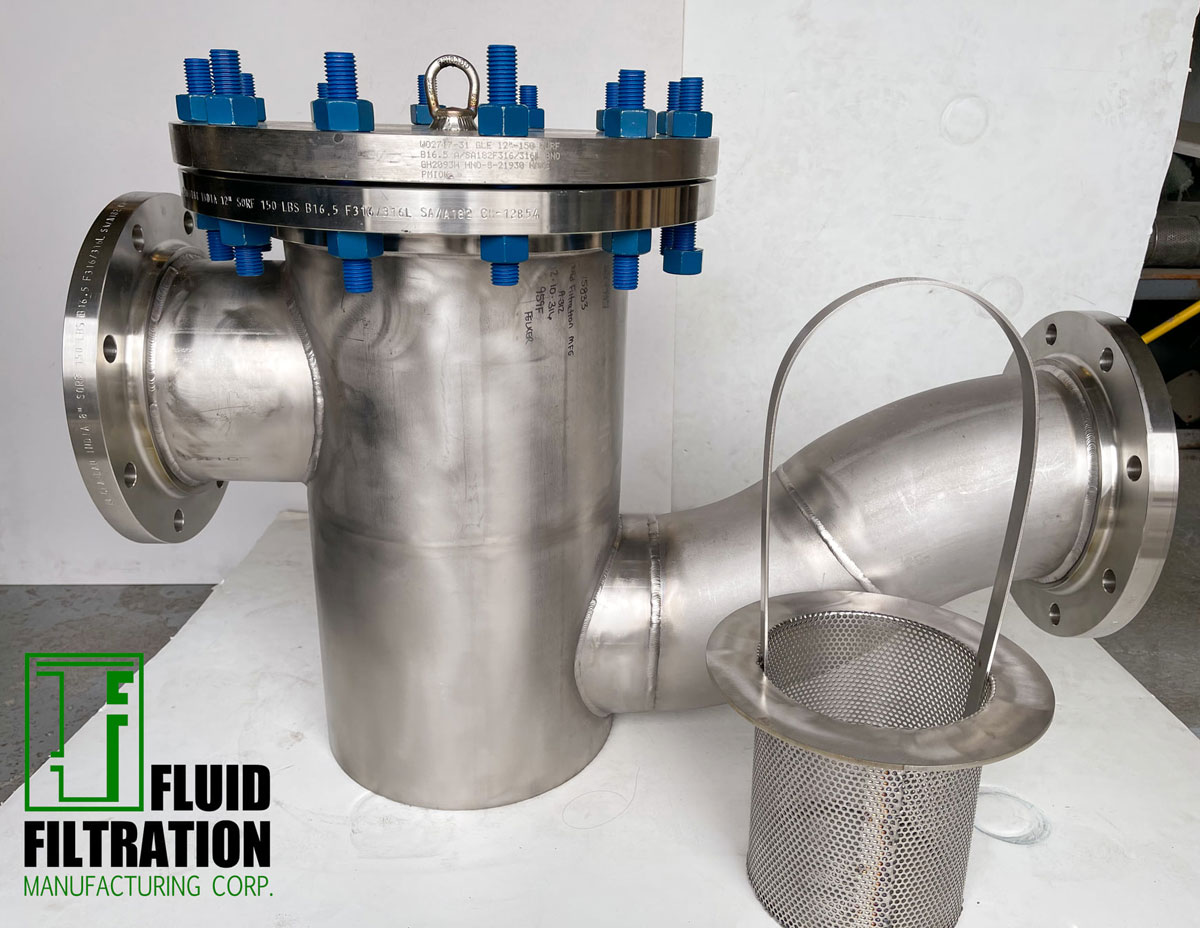

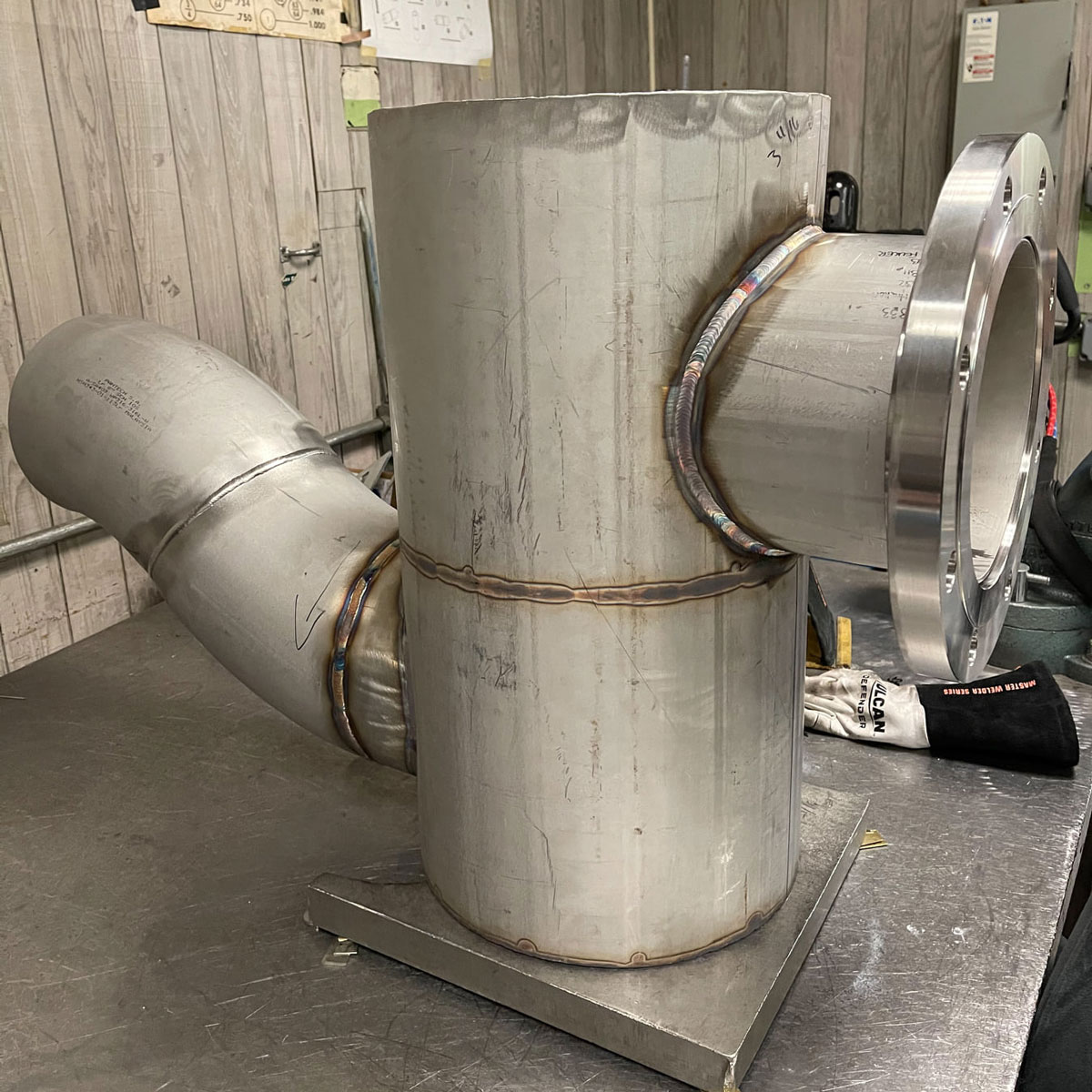

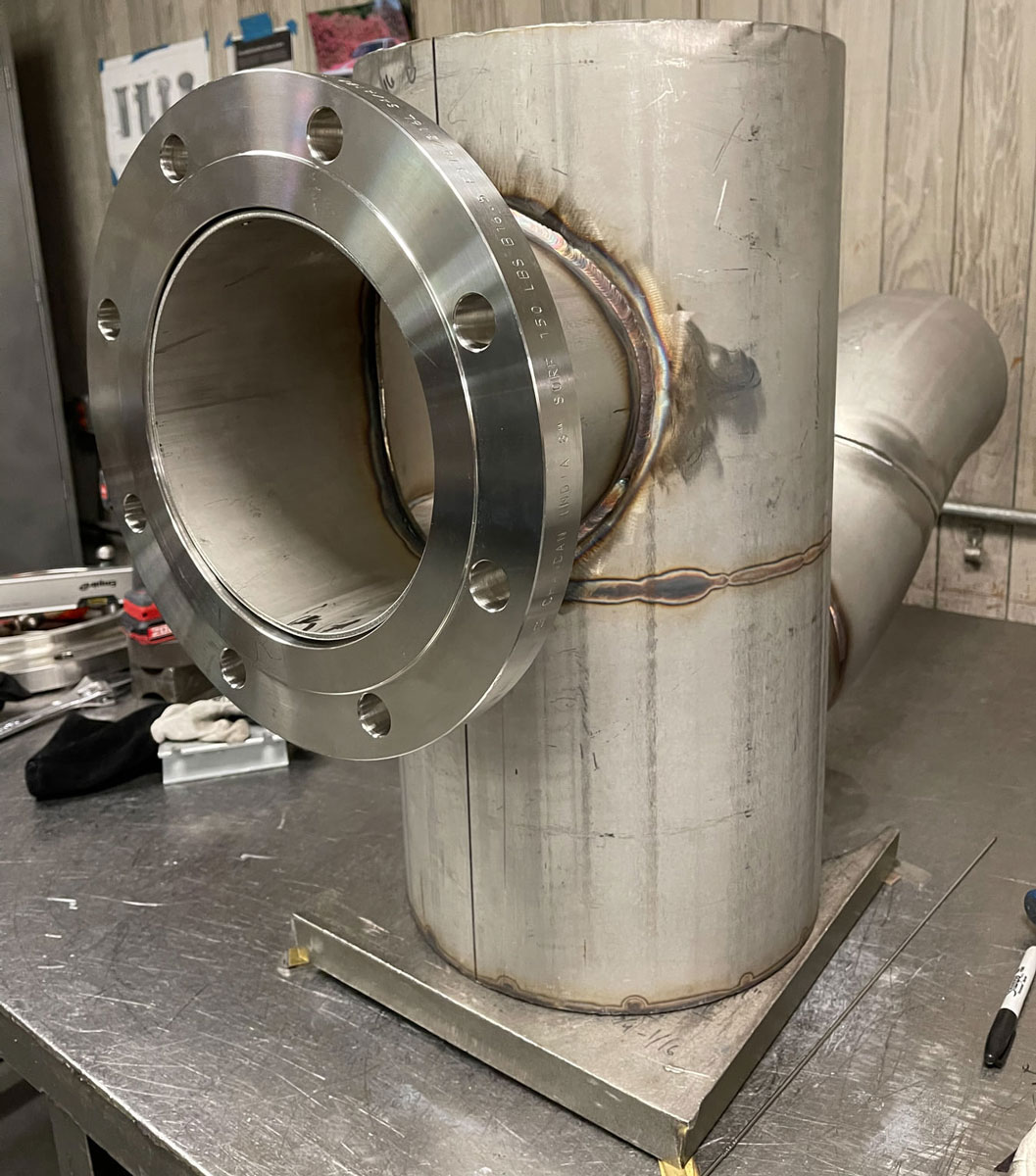

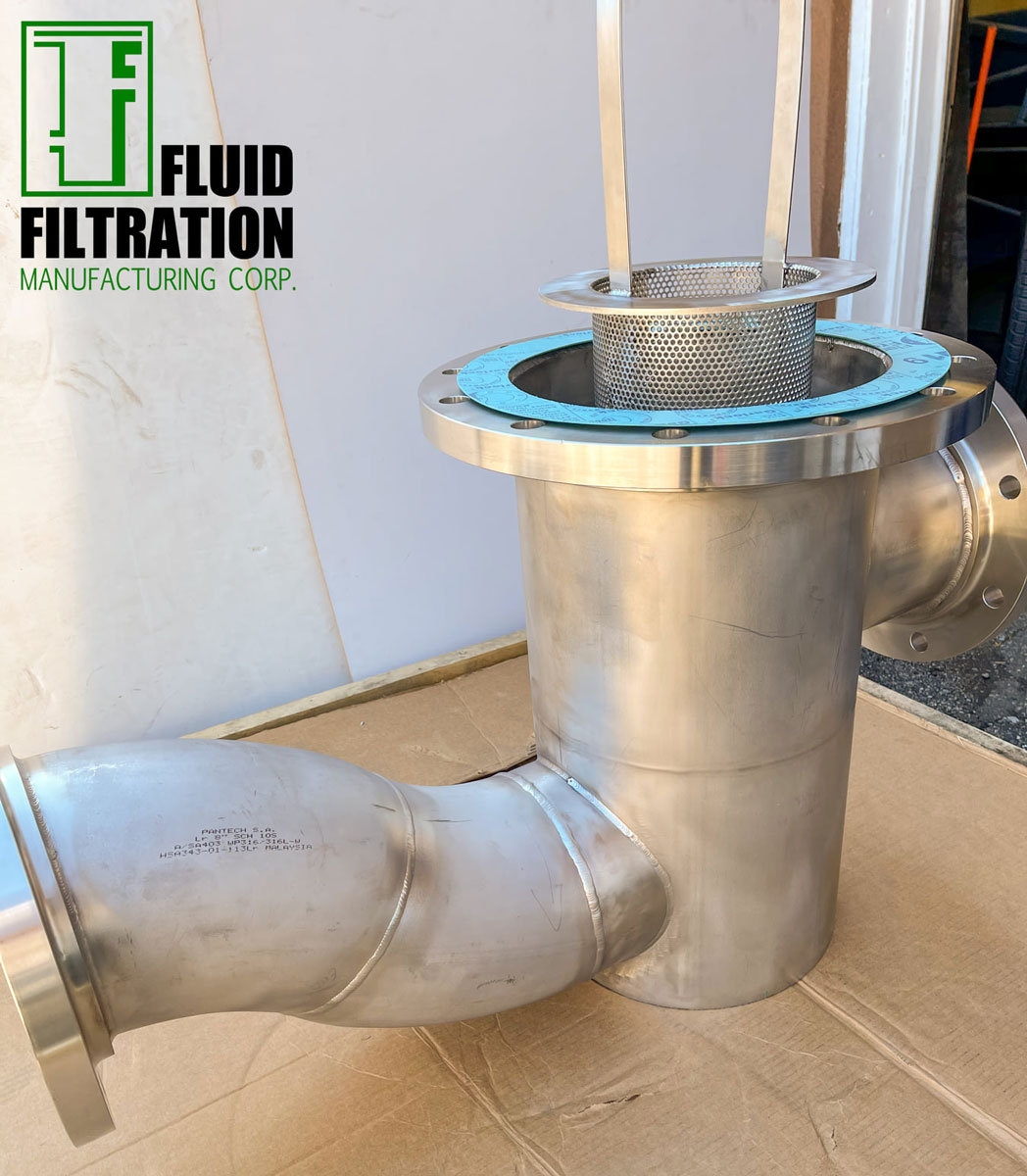

Stainless Steel 316 Simplex Strainer with bolted cover

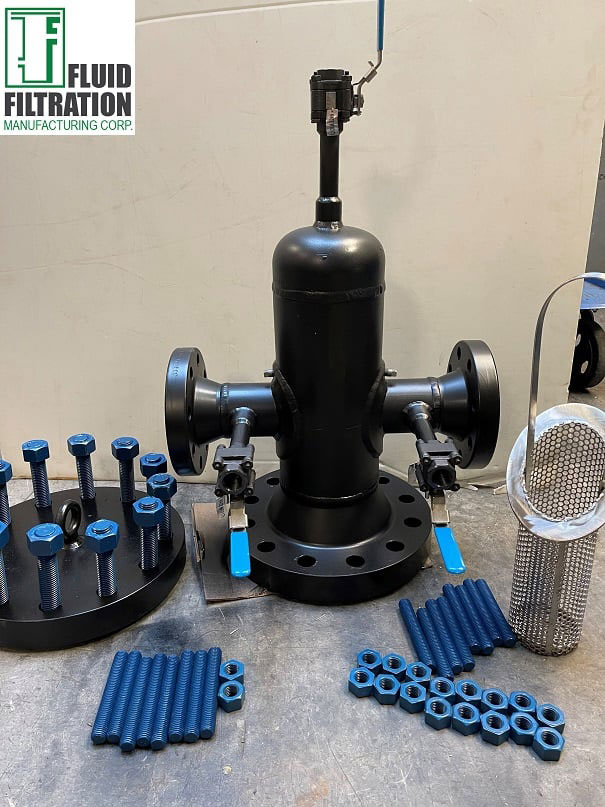

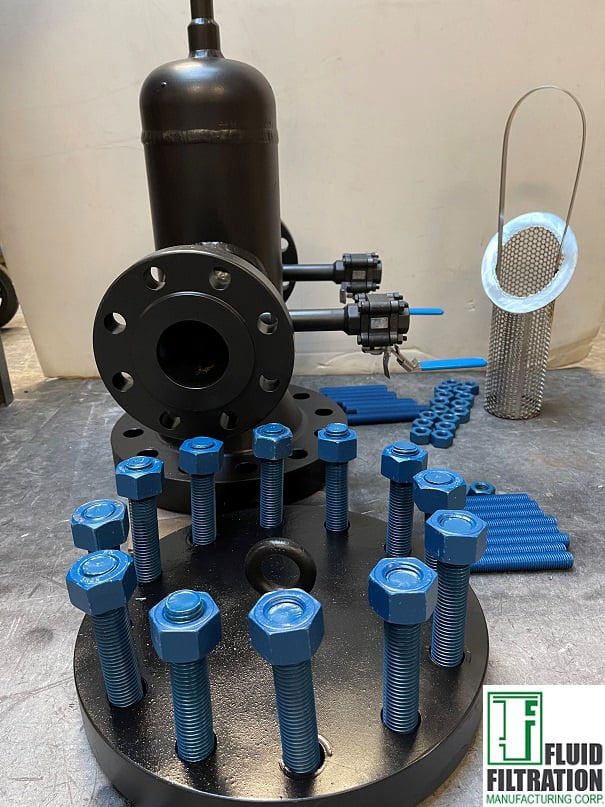

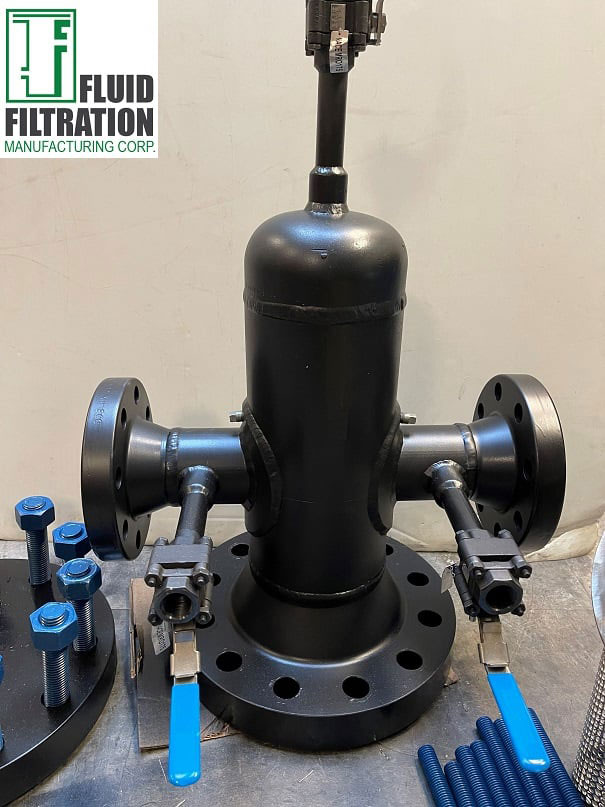

Carbon Steel 300lb Flanged Fabricated Simplex Strainer
Carbon Steel Size 2" 300# simplex strainer
All fabricated 316 Stainless Steel simplex strainers

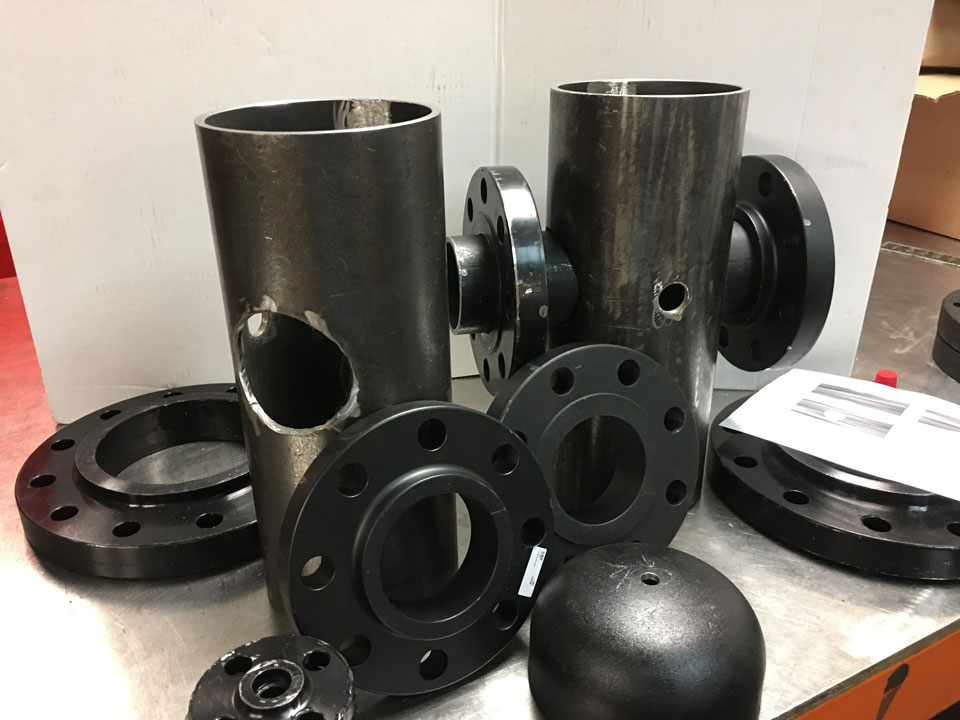

Carbon Steel Size 3" High Pressure simplex strainer

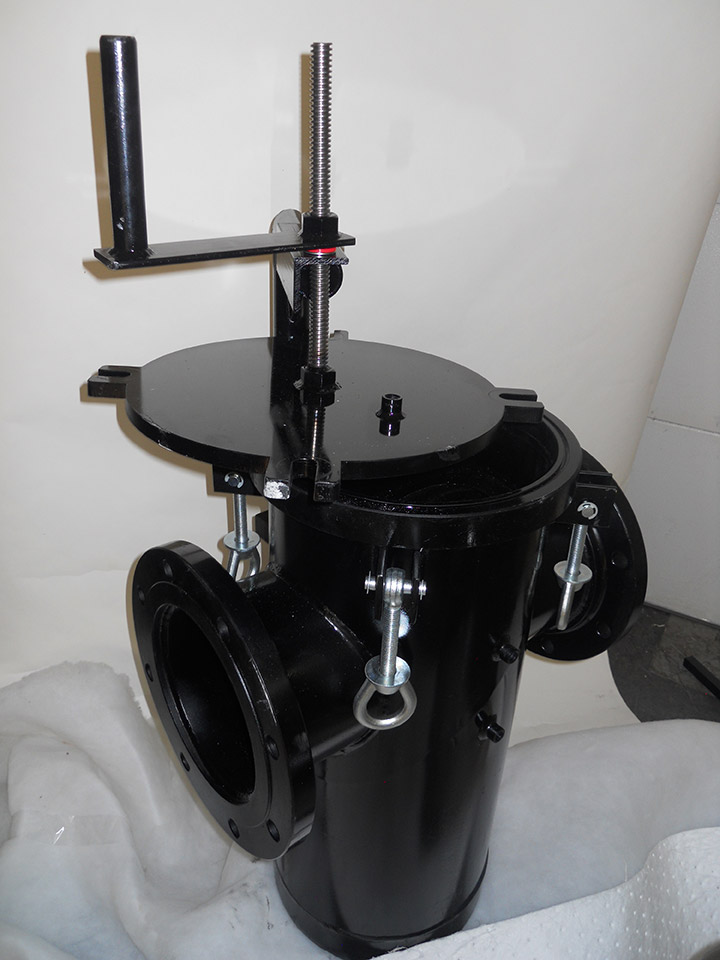

Fabricated Carbon Steel simplex strainer with Davit Arm.
Model No. FSX-43FSS-316, size 3.0 inch inlet/outlet connection stainless steel 316 simplex strainers class 150# raised face flanged with bolted covers

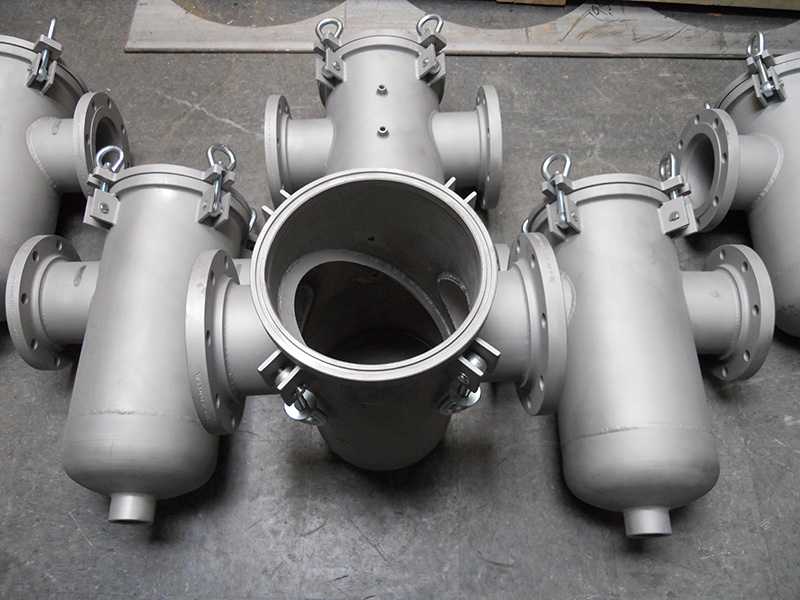

Fabricated Strainers Size 6.0 Stainless Steel 317 #150lb Flange with quick opening eye bolt closure
10.0" fabricated carbon steel simplex strainer with 150# raised faced flange with bolted cover and supporting legs and stainless steel basket
Are available with pipe connections of 1/2 inch through 12.0 inch NPT or flanged. Housing can be furnished in carbon steel, stainless steel, Aluminium and monel, hastelloy C, etc. Large basket capacity for less frequent cleaning. optional filter bags

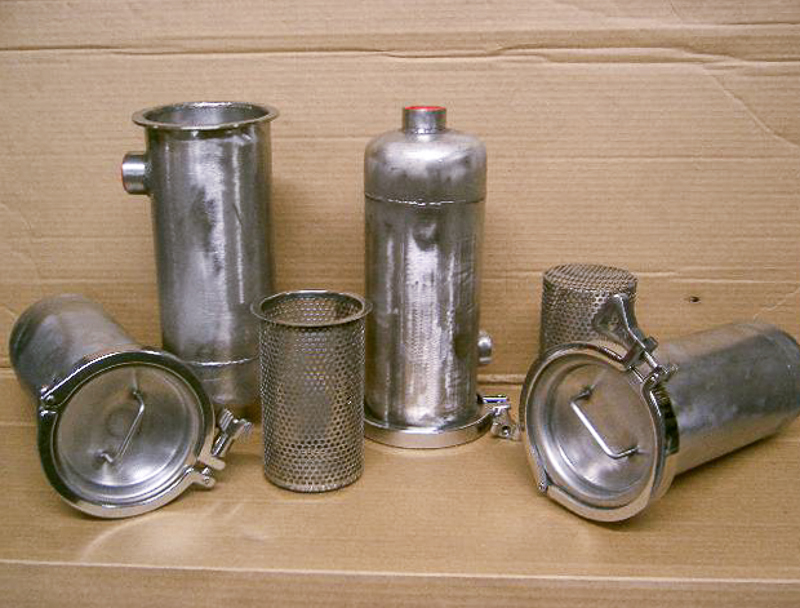

Stainless steel 316 clamp covered simplex strainers
Size 6.0" carbon steel flanged simplex strainer
Custom fabricated stainless steel simplex strainers
Carbon steel fabricated simplex strainers.
Stainless steel sanitized simplex strainers.
Stainless steel fabricated high pressure strainers with bolted cover.
Fabricated simplex strainer with bolted cover.

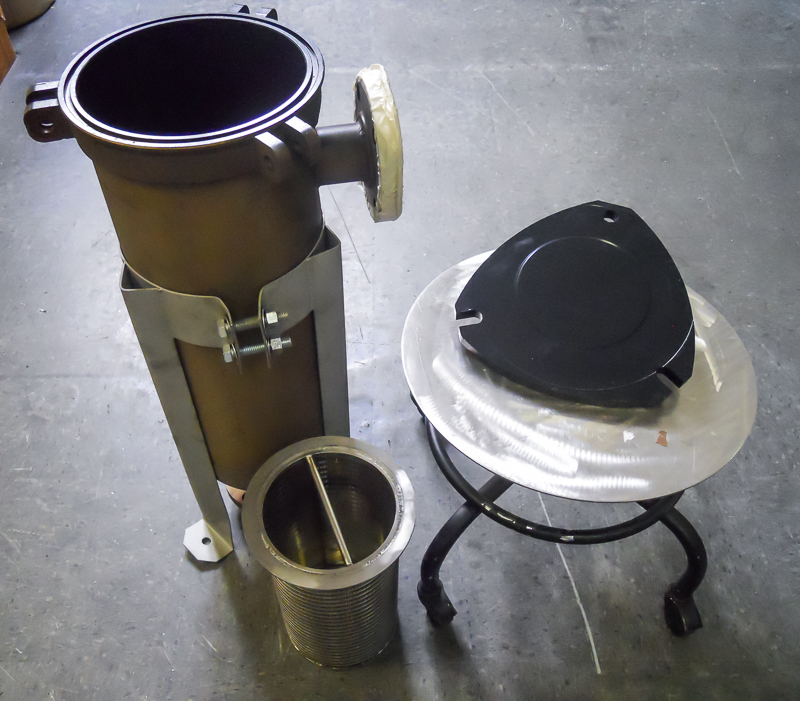

Fabricated 4", 150lb flange simplex strainer, Teflon coated on the inside with wedge-wire basket.
Click above to preview all drawings |
Are available 1 inch through 48 inch with solid or perforated bottoms.
For detailed drawings please click on downloadable PDF files below.
|

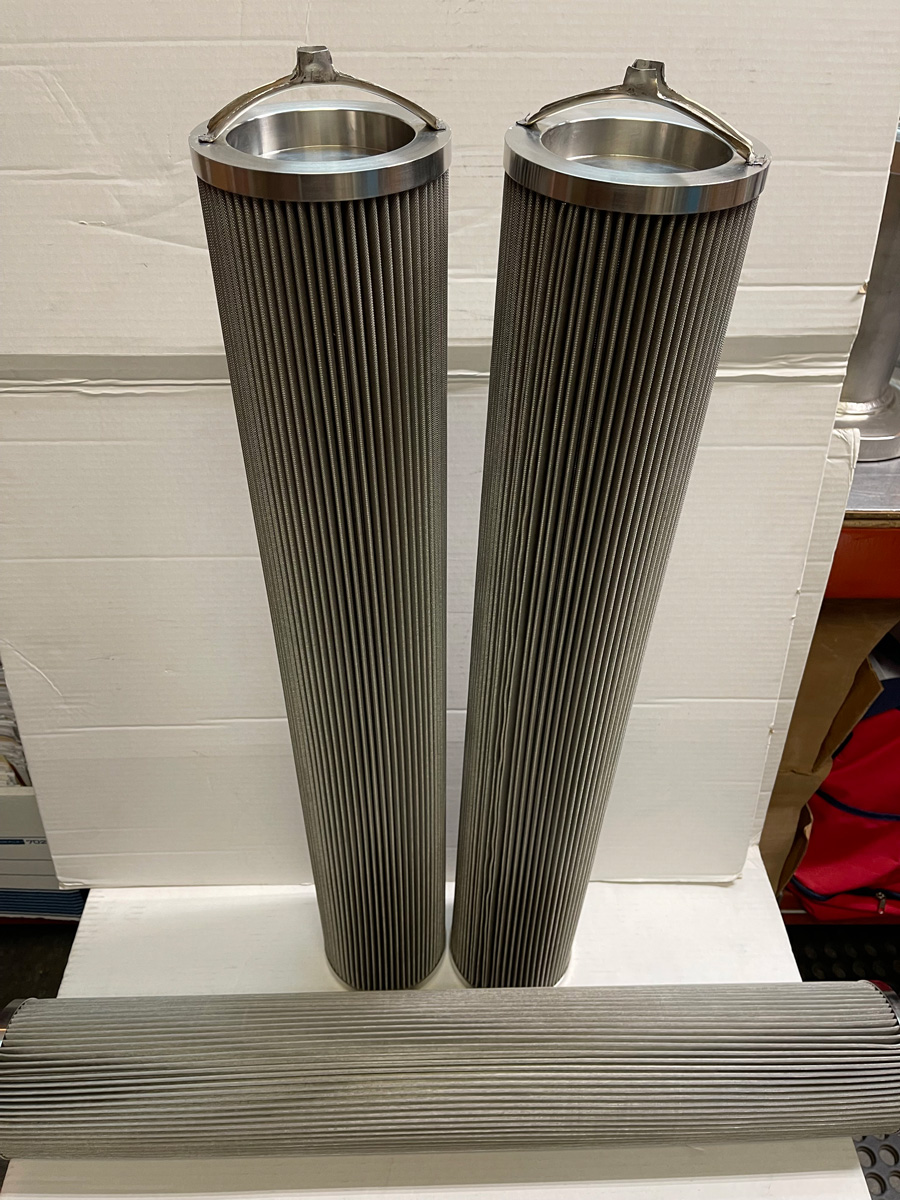

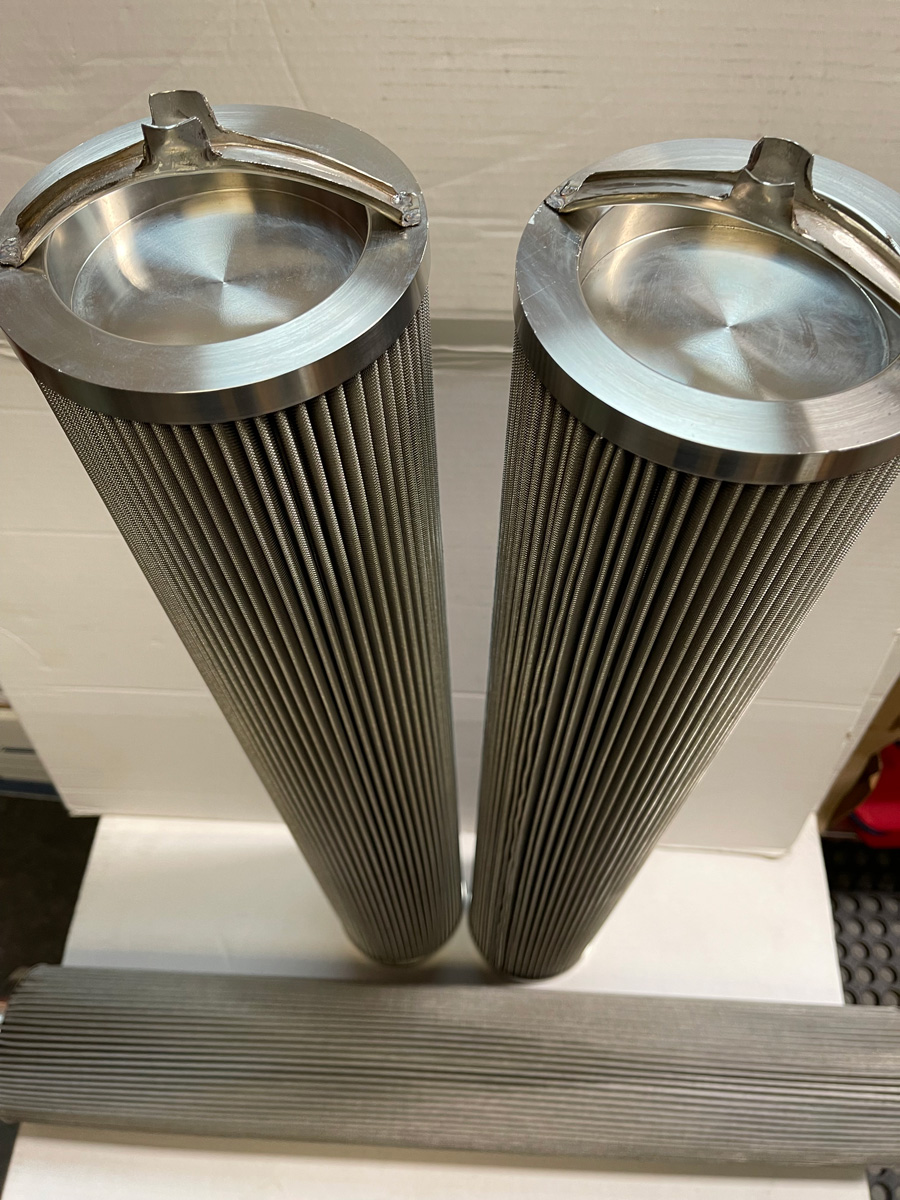

Sainless Stea 316l pleated strainers

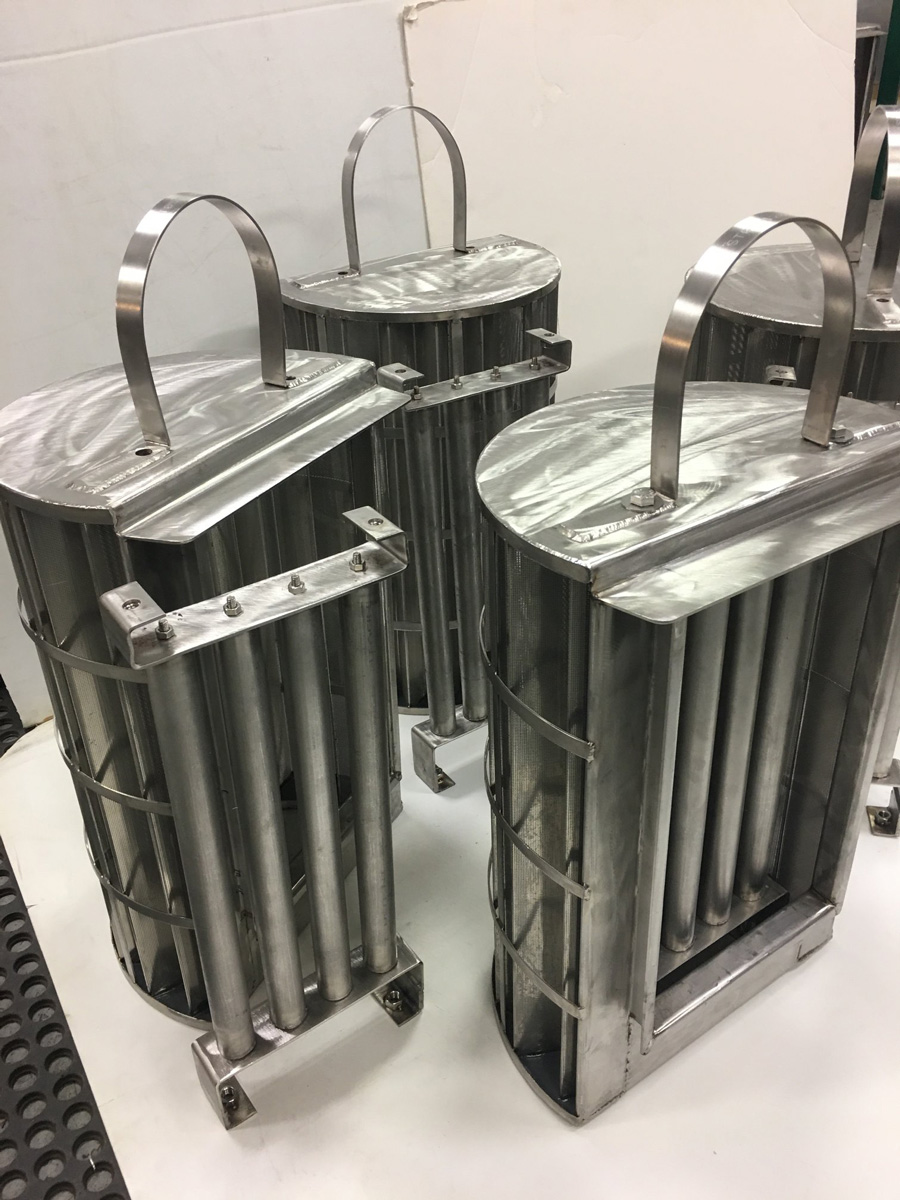

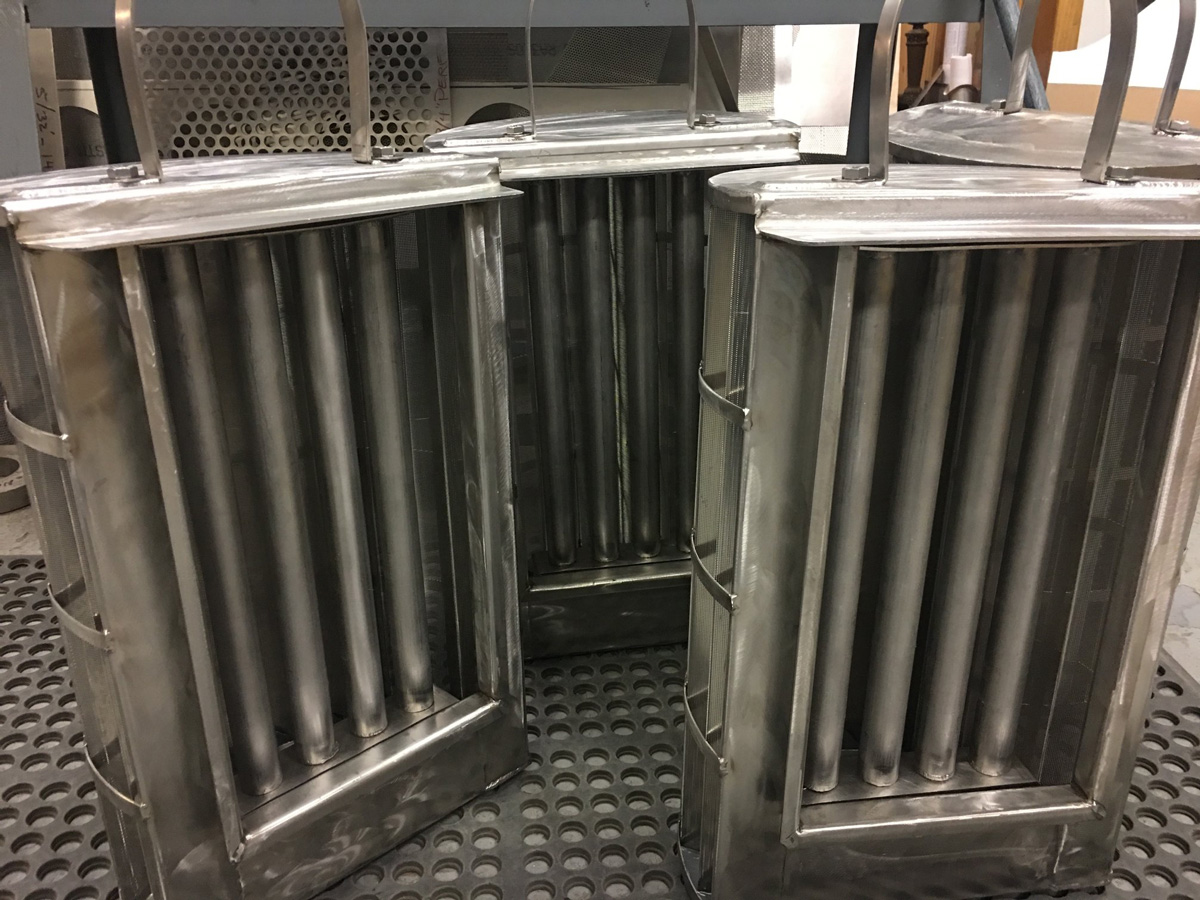

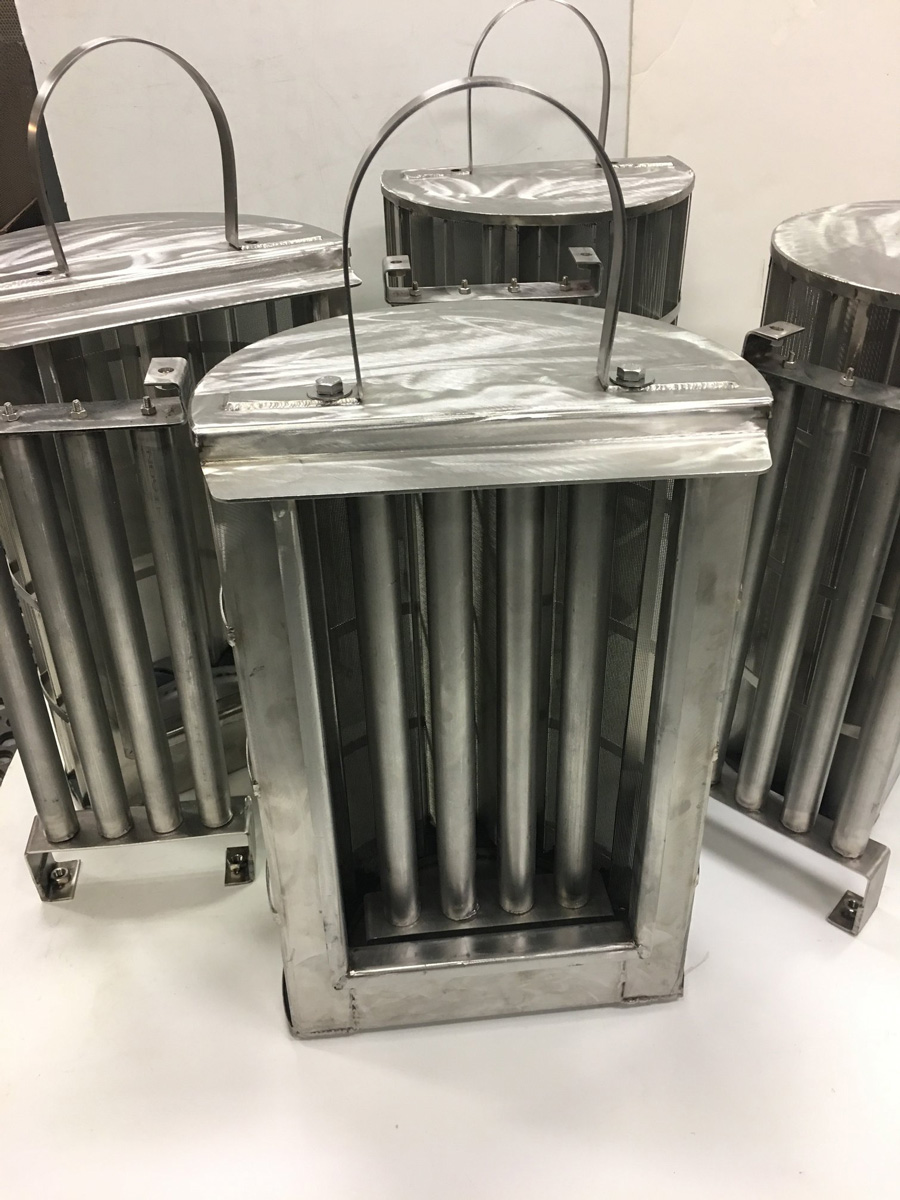

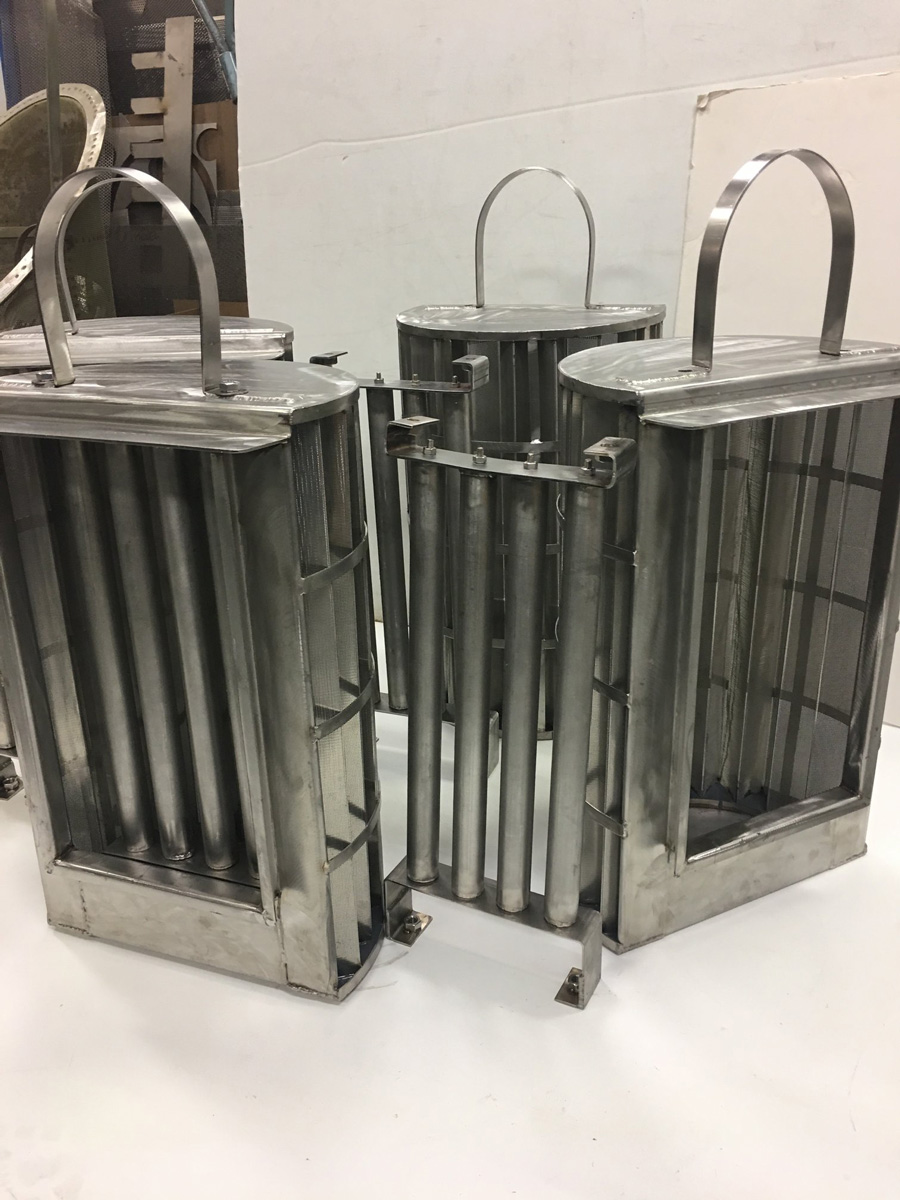

Pleated Perforated Strainers with Heavy Duty Removable Rare Earth Magnets Inside All SS 316.

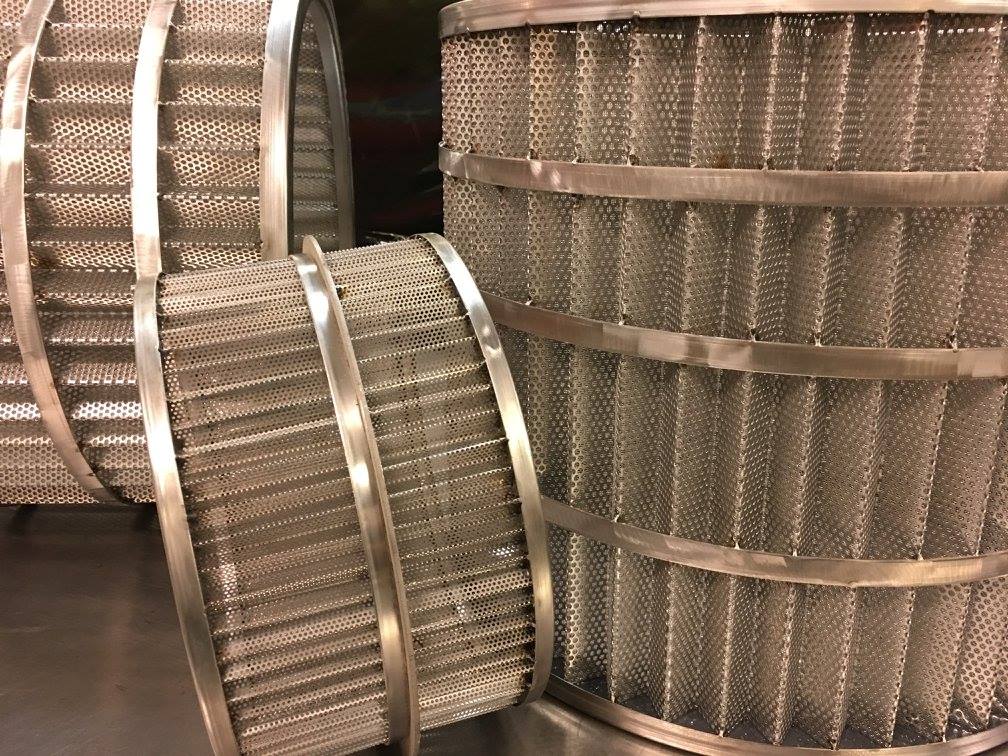

Staiinless steel pleaded strainers.

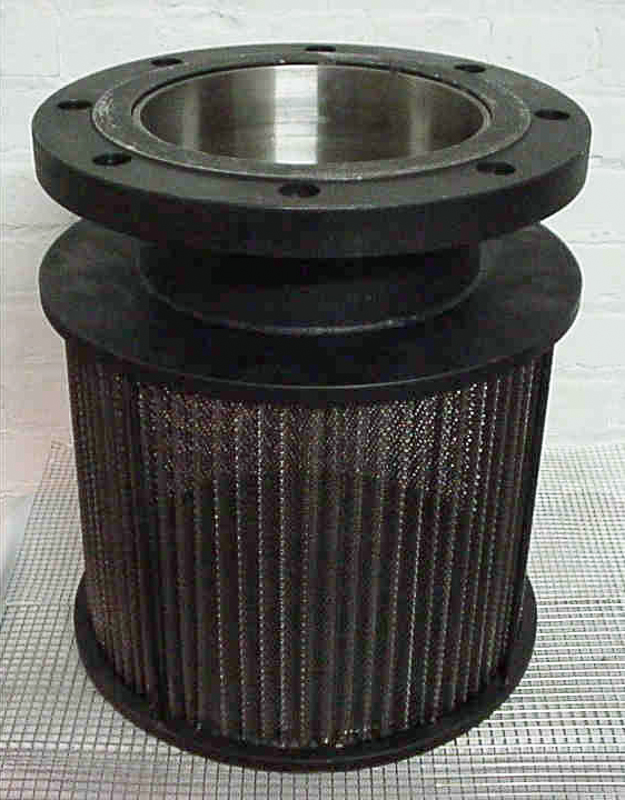

Stainless steel 150# ANSI flanged discharged pump strainers with pleated stainless steel perforated material.

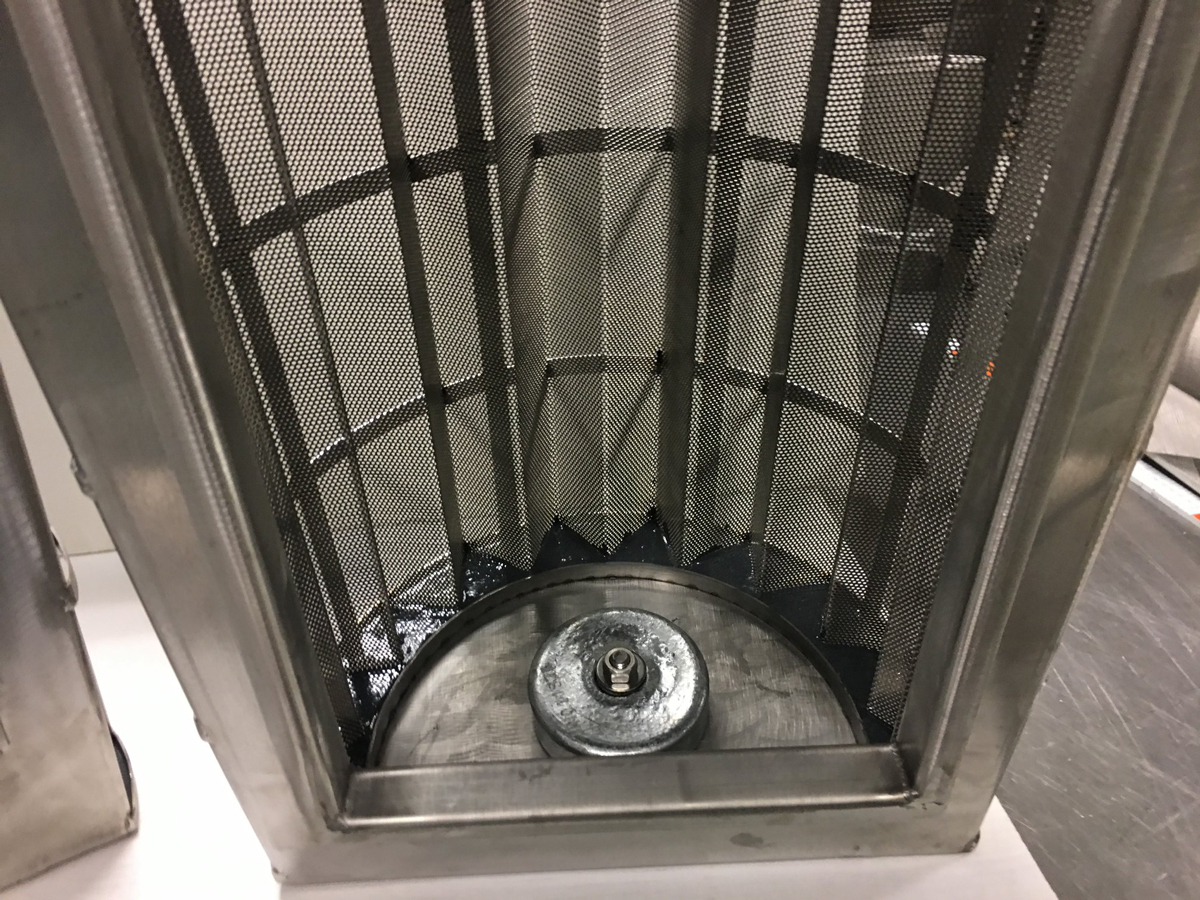

Stainless steel pleated strainers with zinc anode

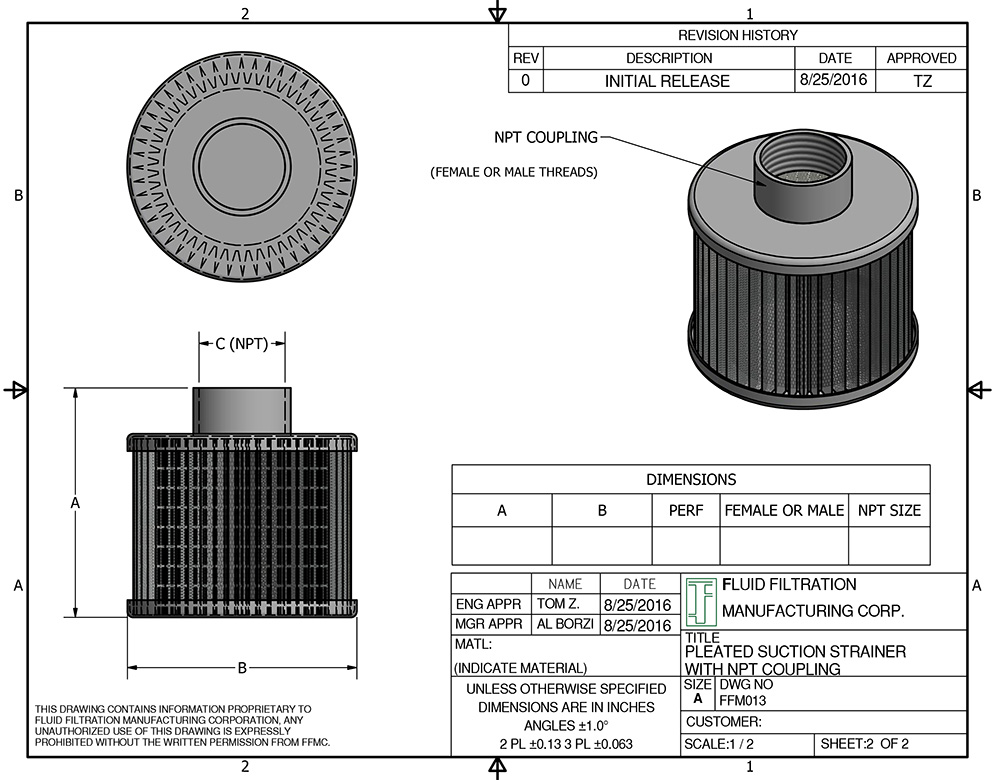

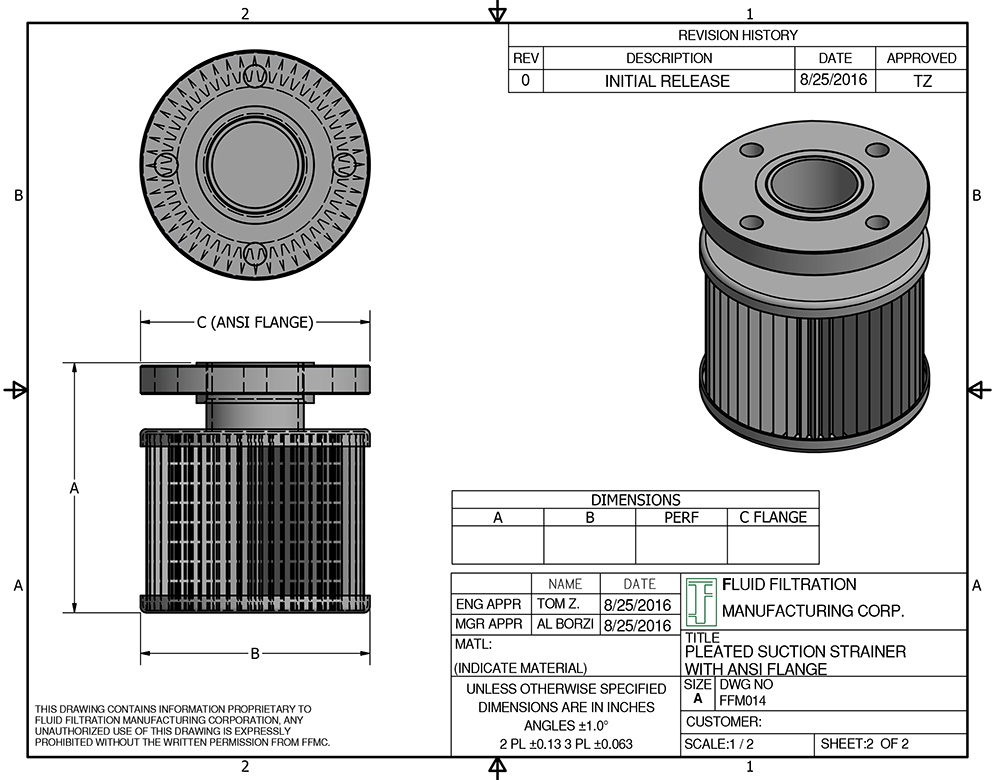

Pleated 400 mesh (38 micron) suction strainers.
>

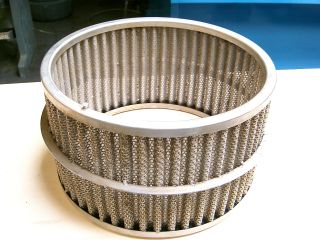

Perforated Lobster Pots convoluted mesh lined stainless steel baskets
Lobster pot style convoluted fabricated stainless steel strainers for 10, 12, 16, and 18 inch Hayward model 72-73 simplex strainers and model 50-51 duplex strainers, lined with or without stainless steel mesh. Also available in Monel material.
Click above to preview all drawings |
Are available 1 inch through 48 inch with solid or perforated bottoms.
For detailed drawings please click on downloadable PDF files below.
|

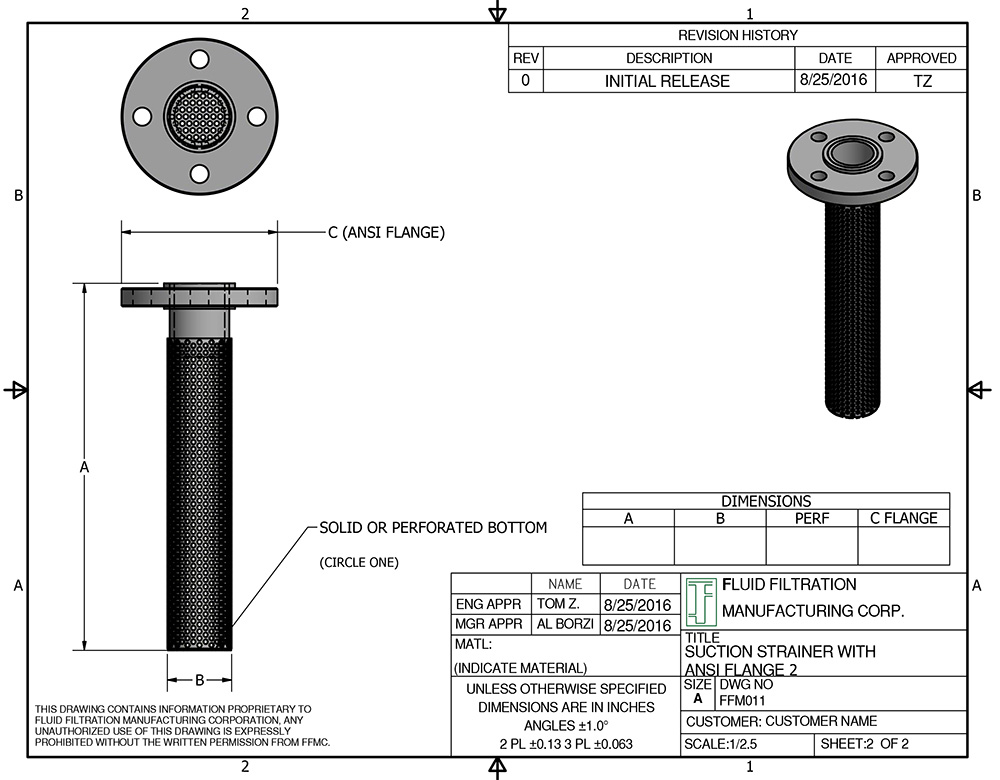

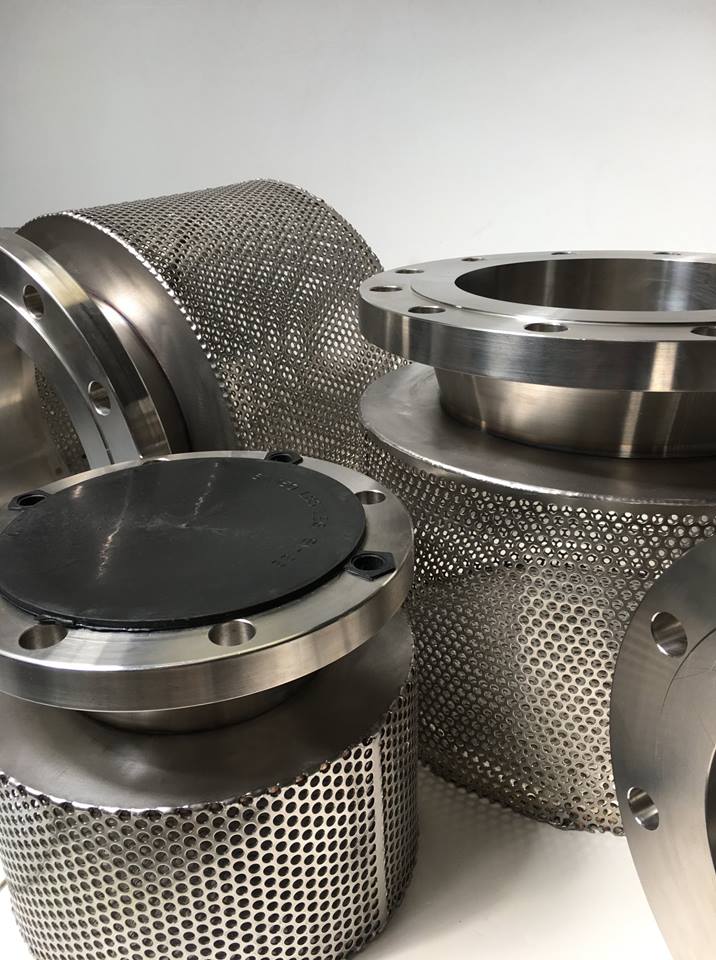

All 316 Stainless Steel suction strainers

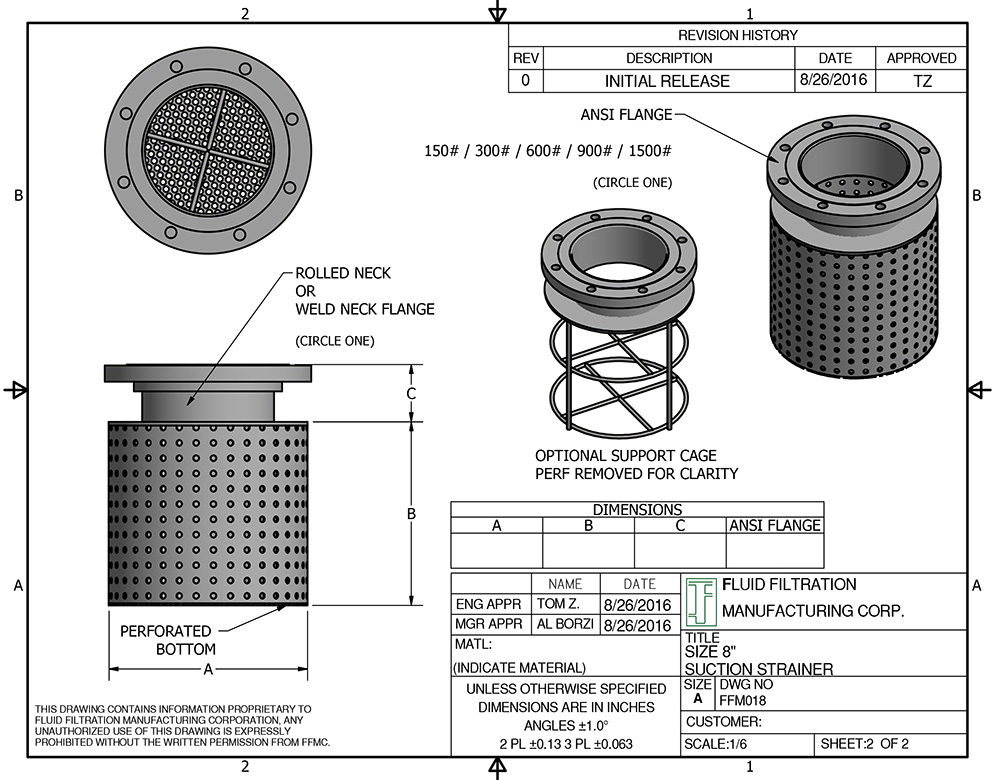

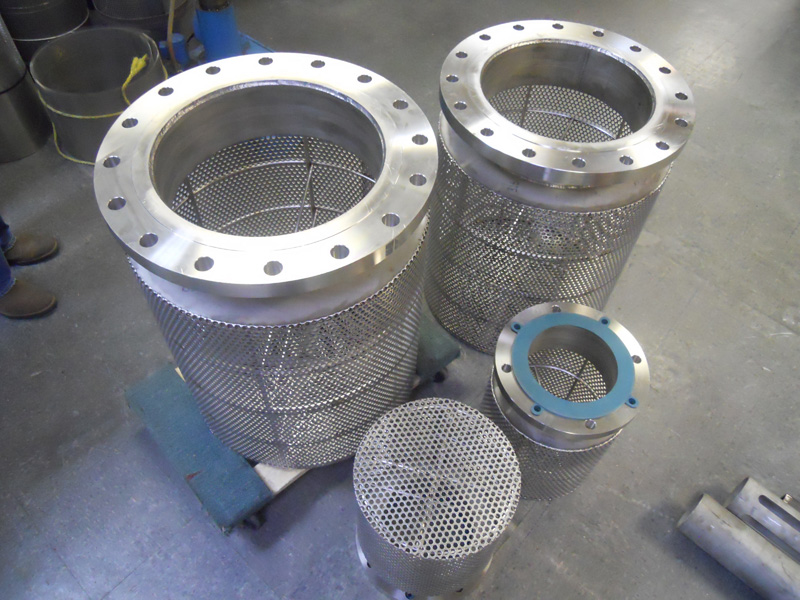

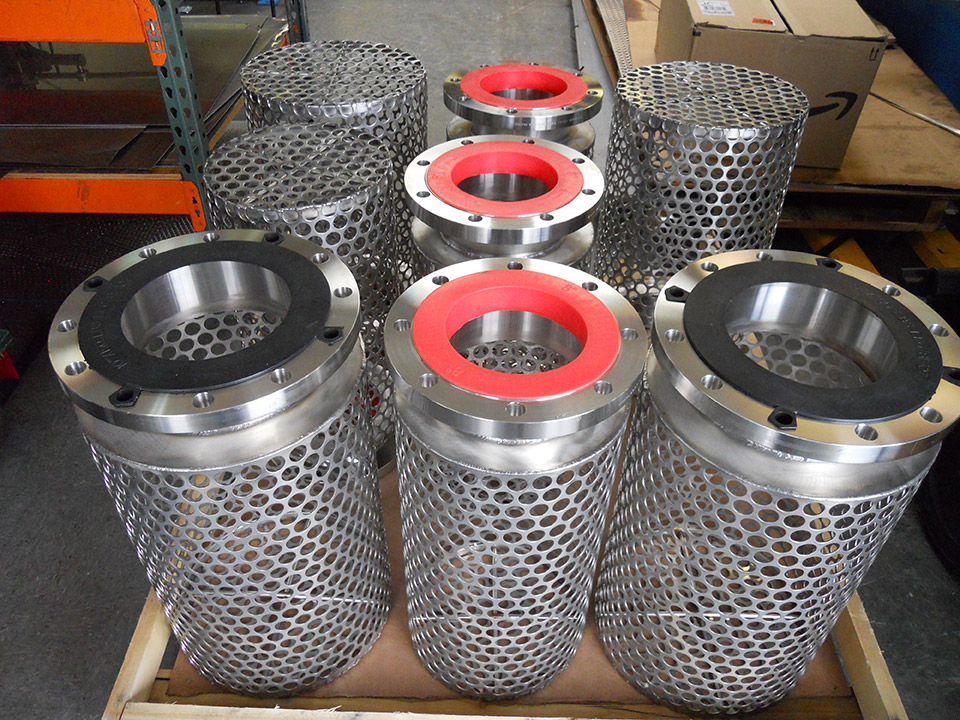

8 inch 150lbs Flange 316 Stainless Steel suction strainer half inch perforation with supported perforated bottom.

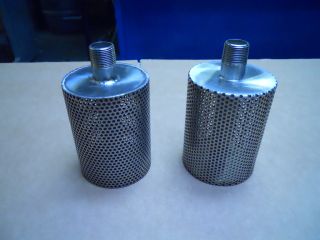

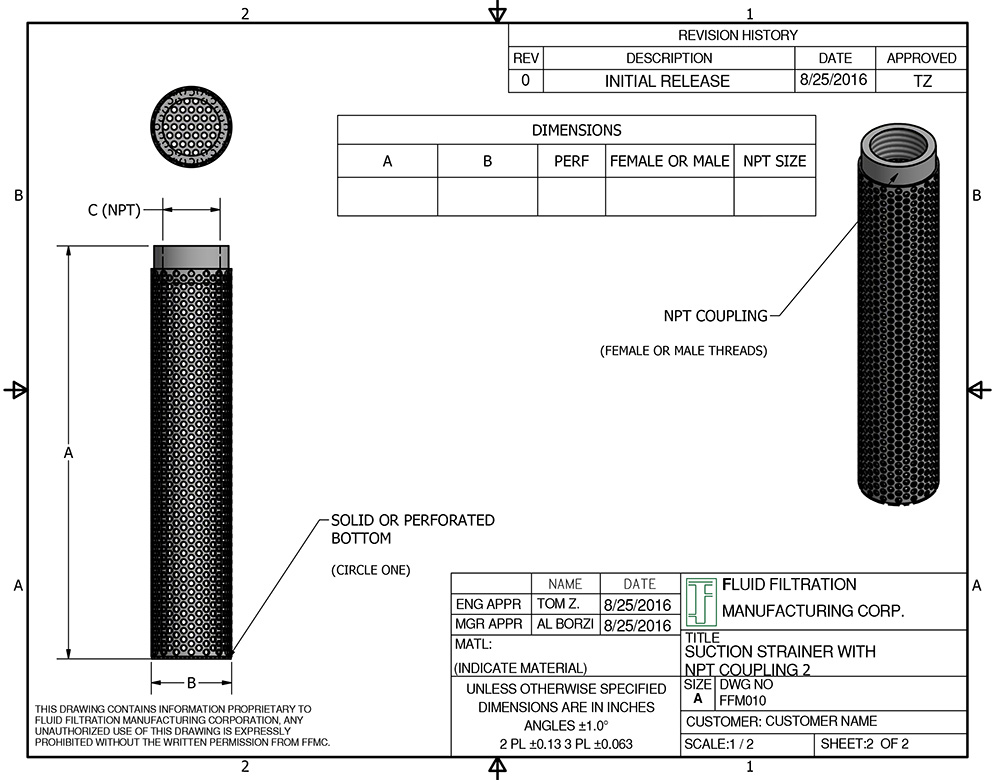

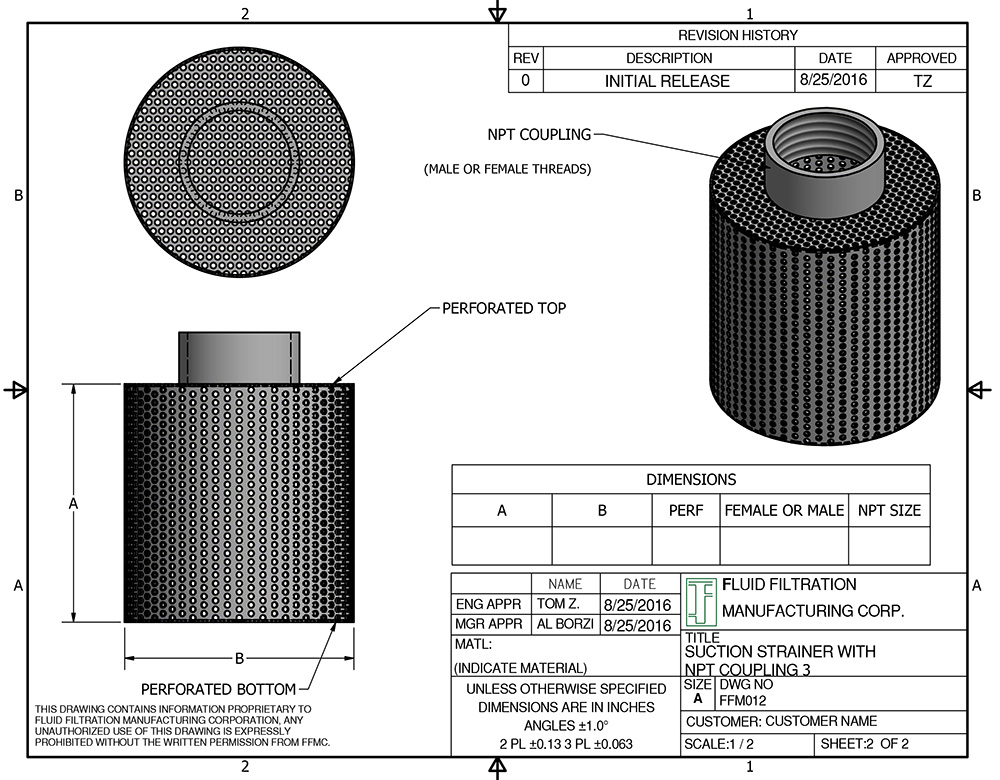

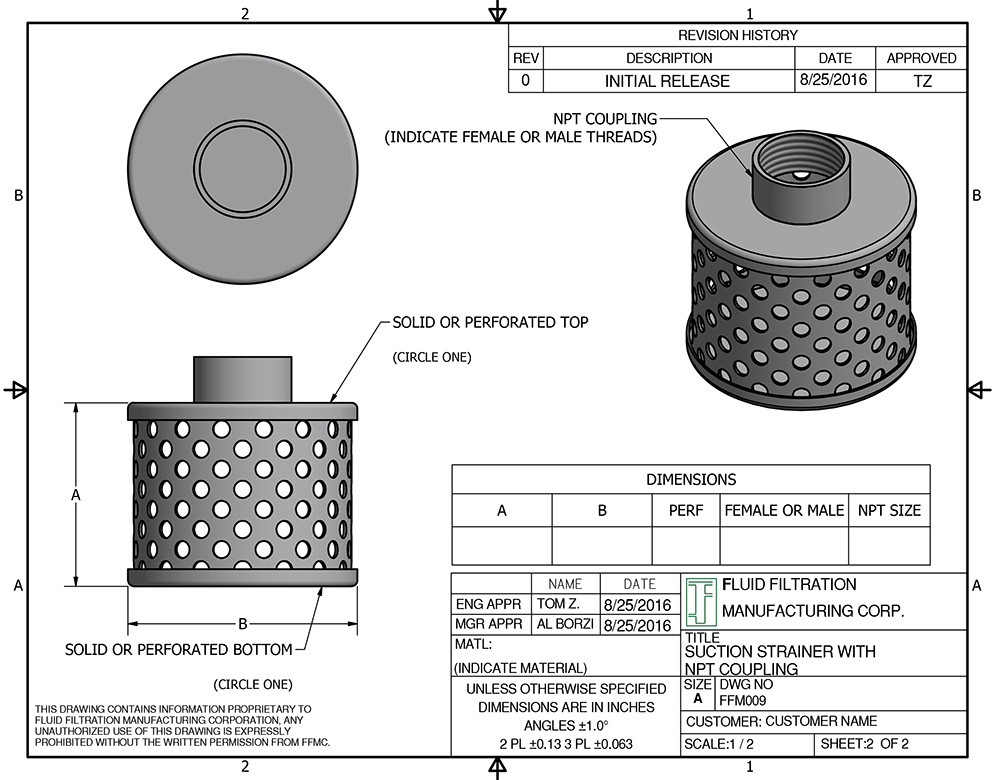

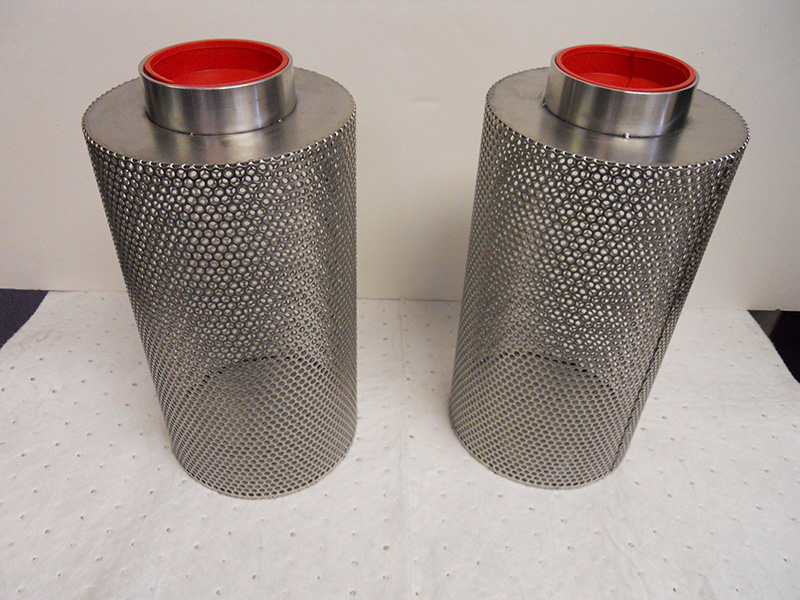

Size 3" Female Coupling all SS 316 suction strainers solid one end and perforated on other end.

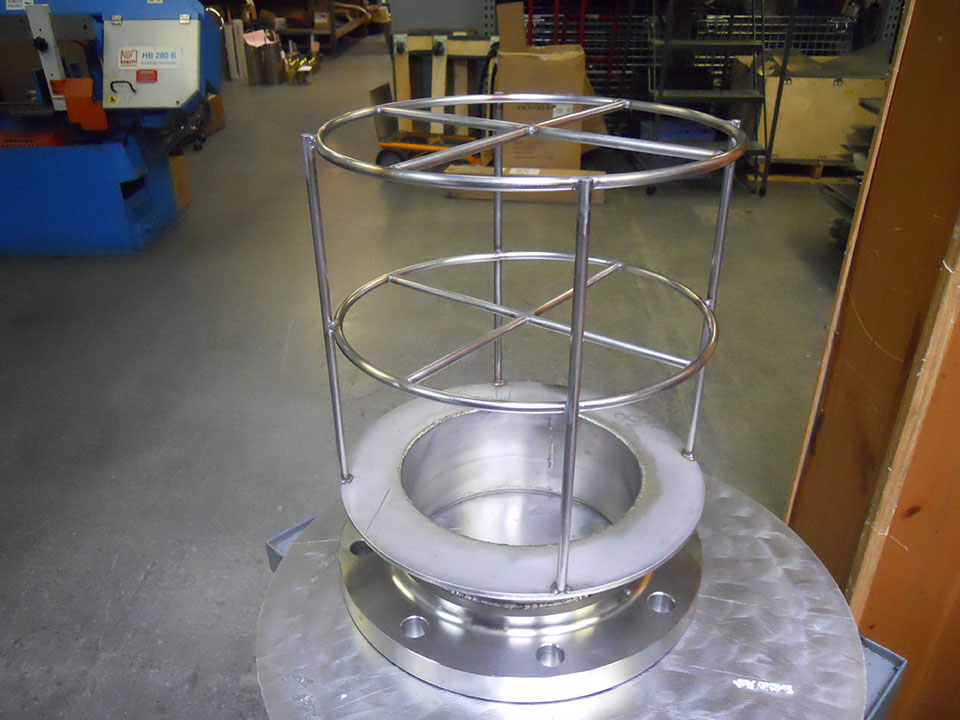

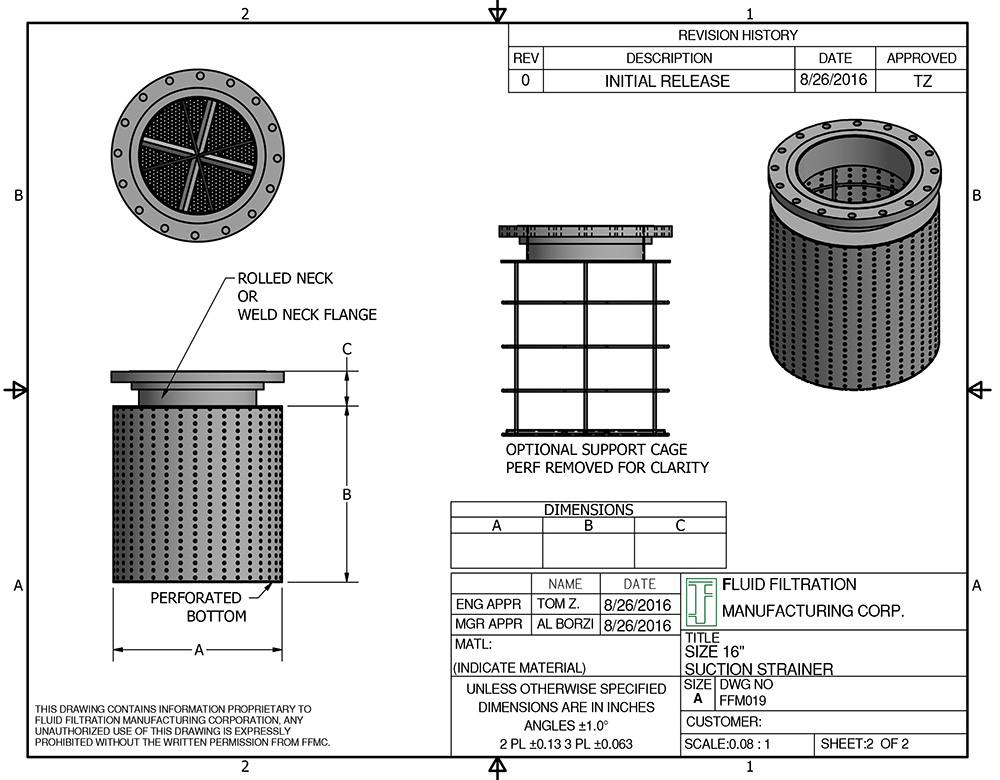

Stainless Steel 16in suction strainer with inner cage built inside.
1.0 inch perforation size, 316 stainless steel discharge pump strainers.
300 lbs flanged stainless steel 1/8" perforated strainers.

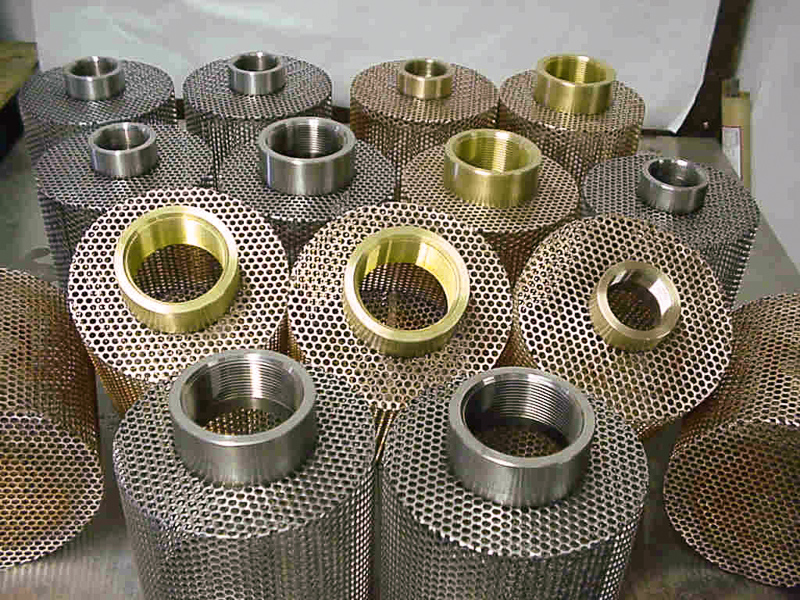

Perforated Monel and Copper discharge pump strainers with all welded Monel and Bronze female couplings.
Material of construction: zinc plated steel, stainless steel, monel, hastelloy, etc. Perforated 1/32" to 1.0" diameter holes.

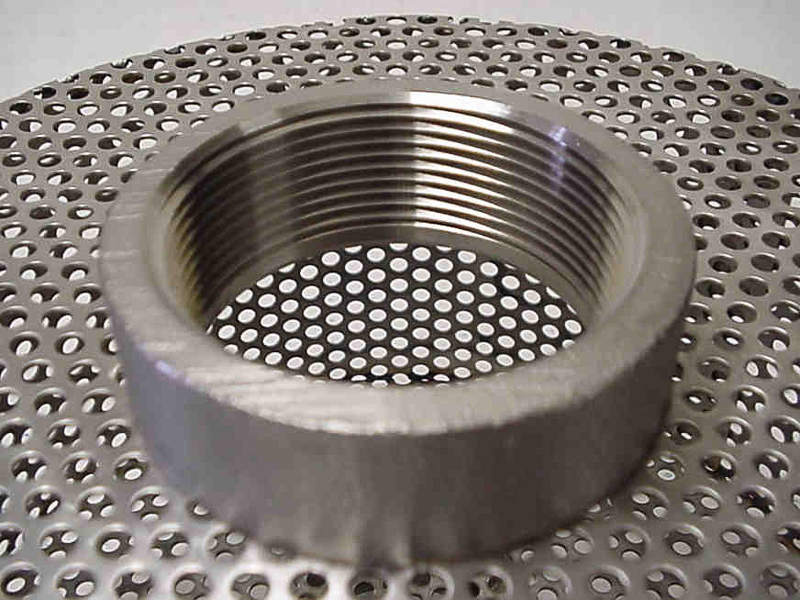

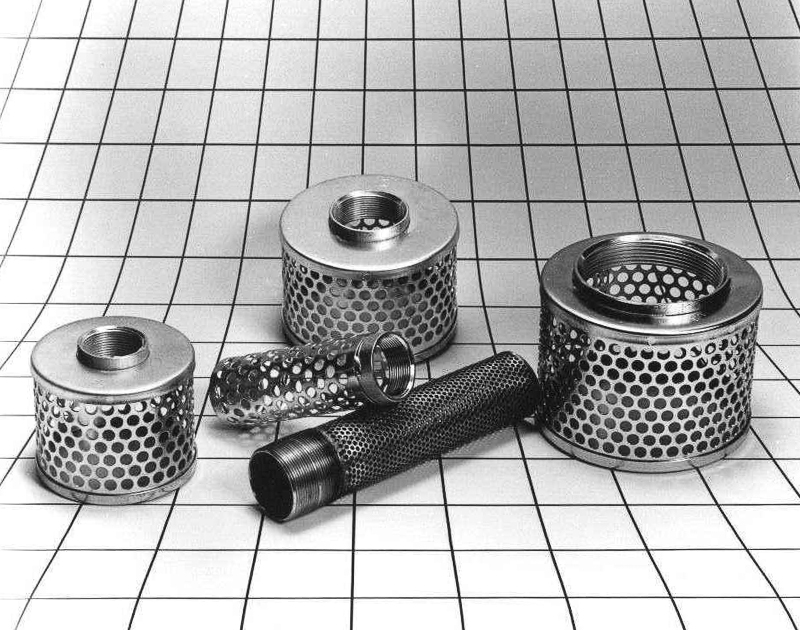

Fabricated discharge pump strainers with full or half female coupling.
Stainless steel 150# ANSI flanged discharged pump strainers with pleated stainless steel perforated material.

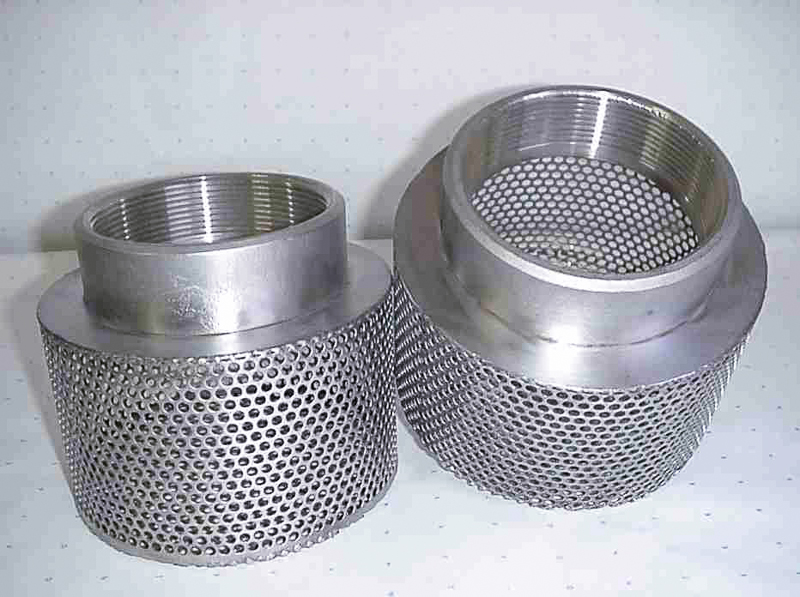

4.0" stainless steel 1/8" perforated with 1/2 female coupling and perforated bottom.
Pleated 400 mesh (38 micron) suction strainers.
3.0" stainless steel 1/4" perforated discharge pump strainers.
Titanium male connector suction strainers.
316 stainless steel wedge wires suction strainer with 1.5" male connection.
All Stanless steel heavy duty suction strainer with 16" flange.
All Stanless steel reinforced heavy duty suction strainer.
Click above to preview all drawings |
|

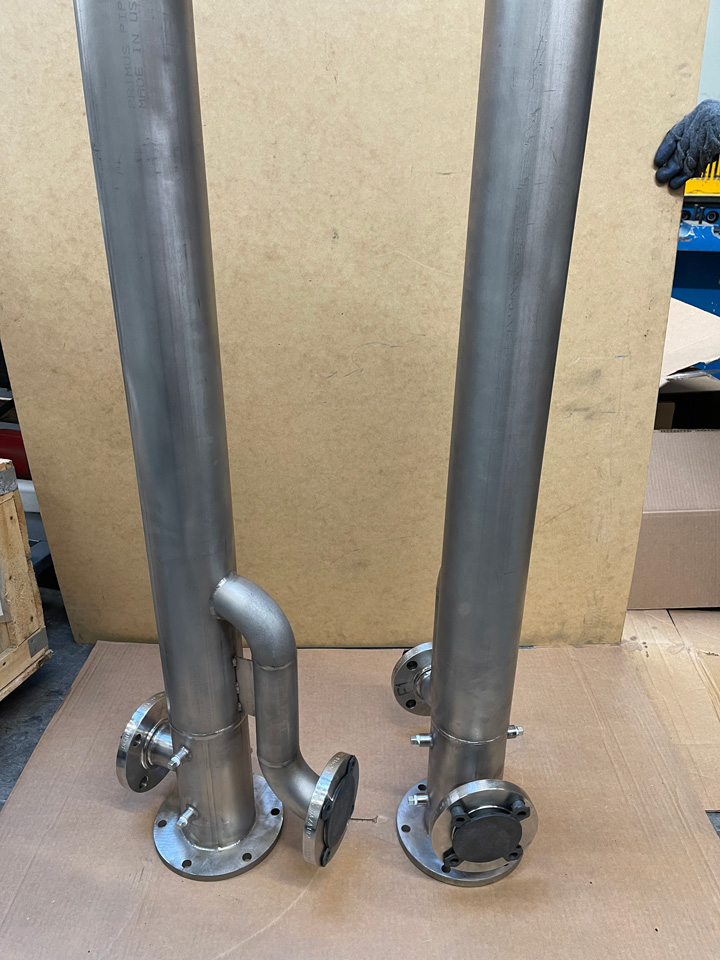

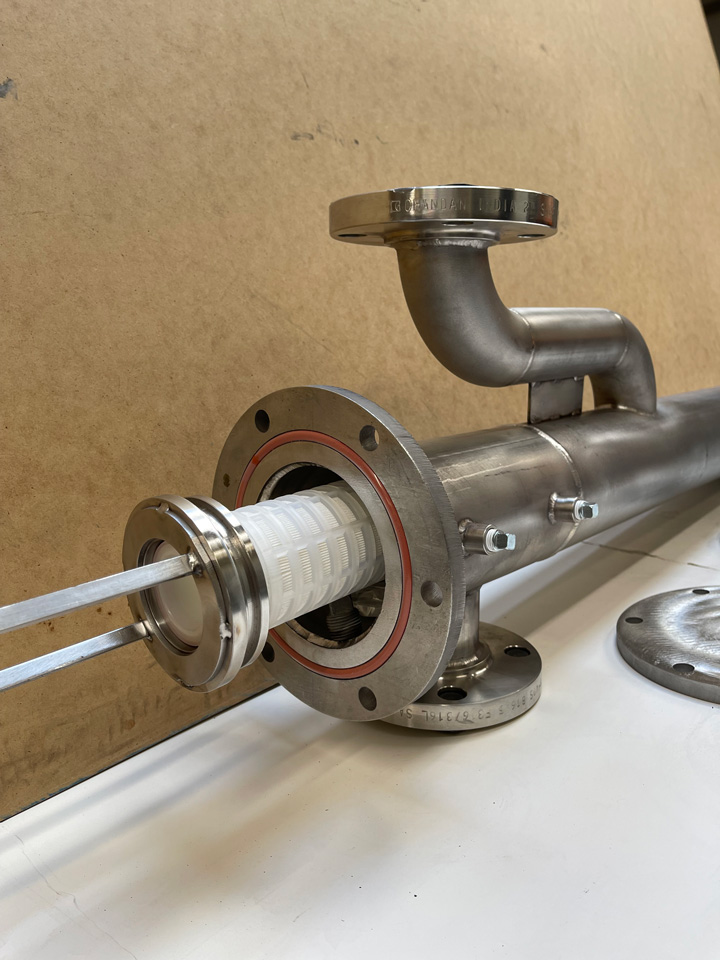

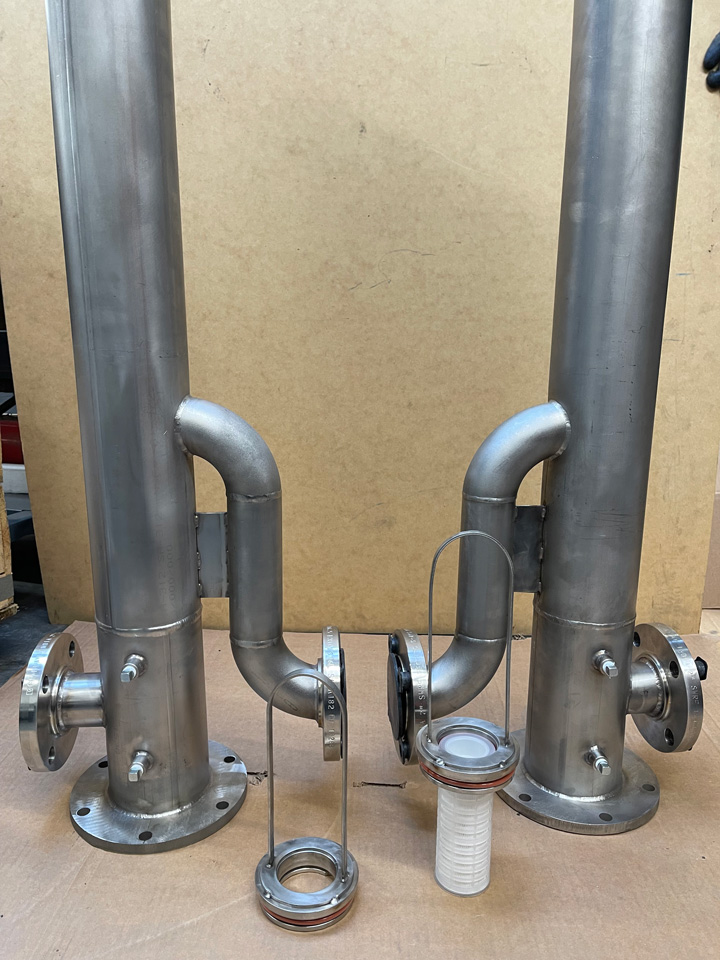

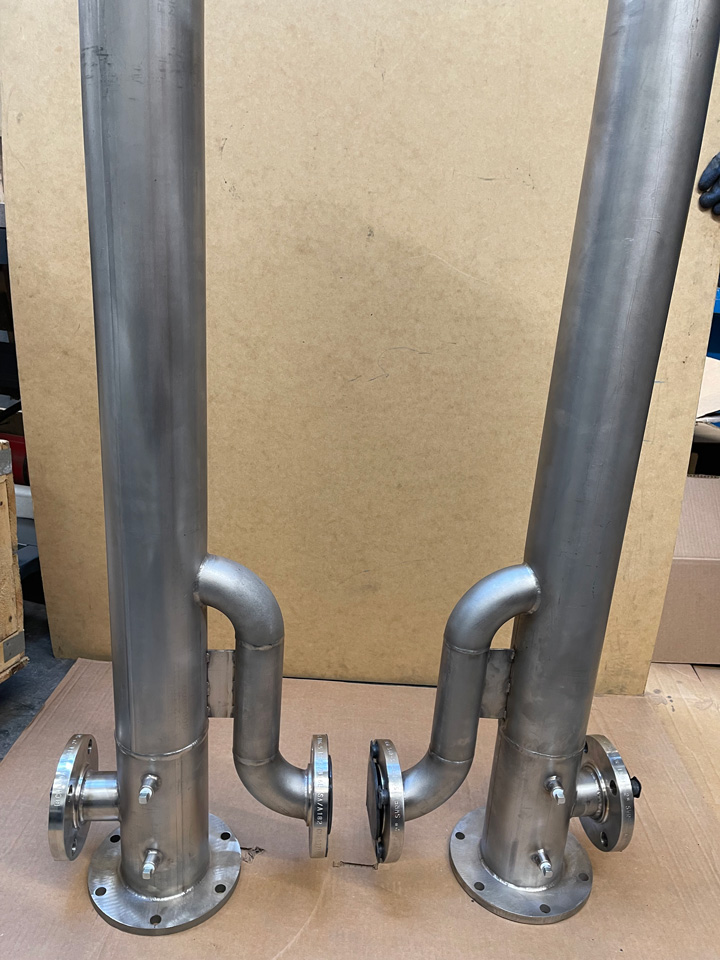

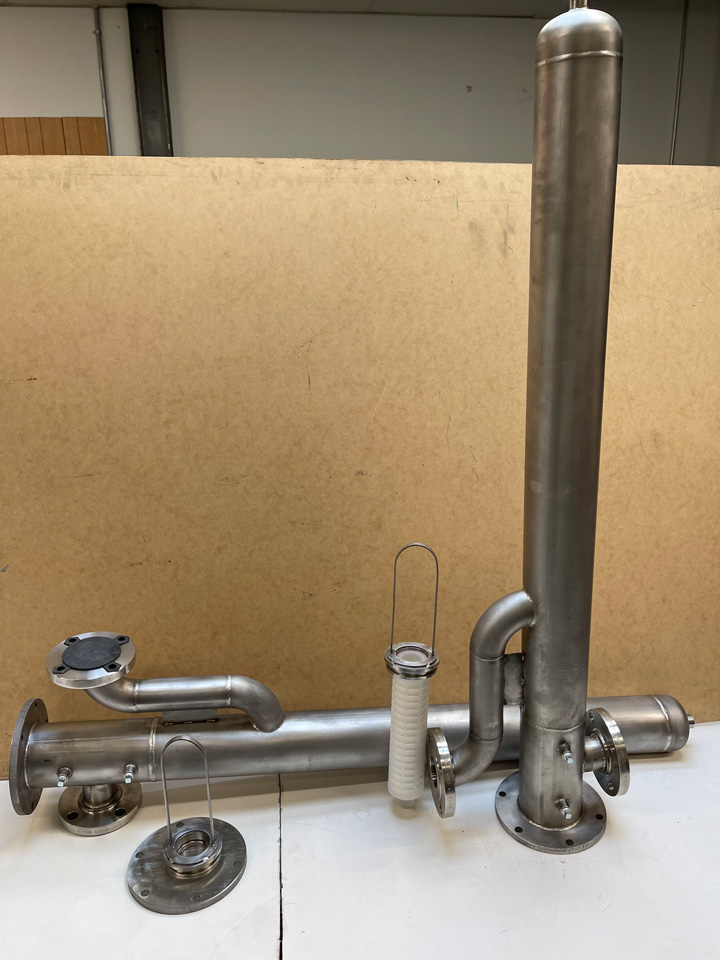

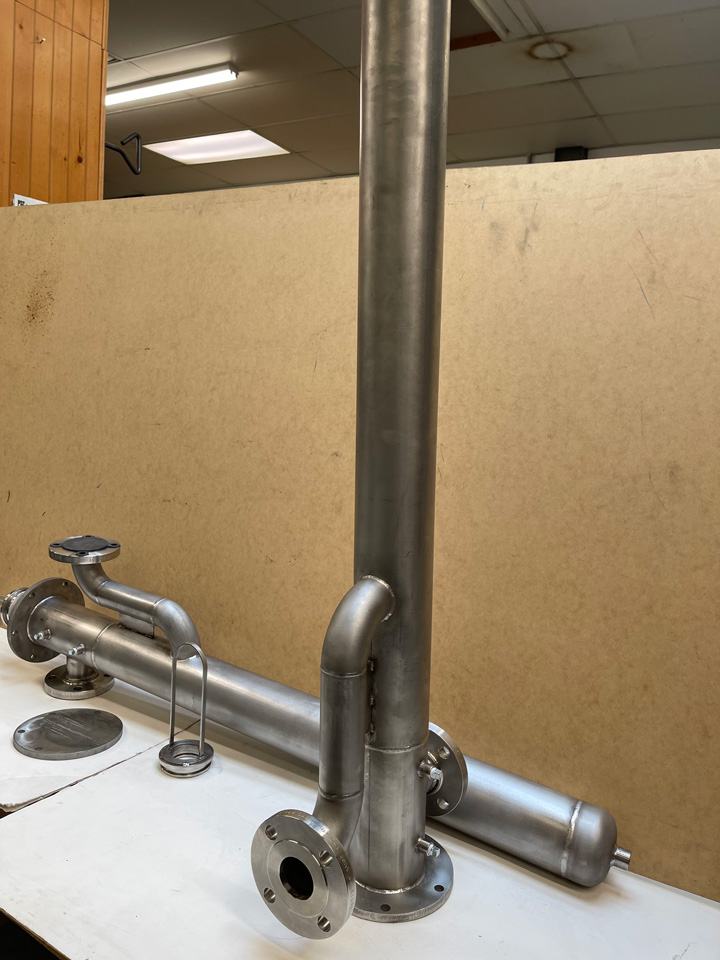

3 inch Stainless Steel Inline Cartridge Housing
Click above to preview all drawings |
|

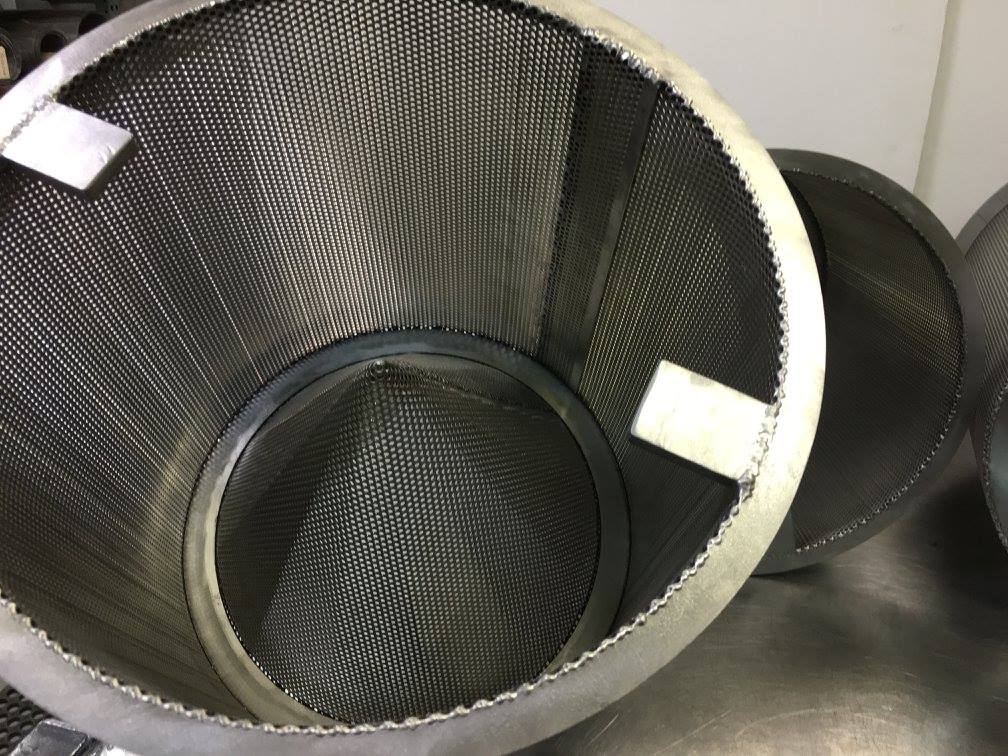

Inverted Stainless Steel Perforated Strainers

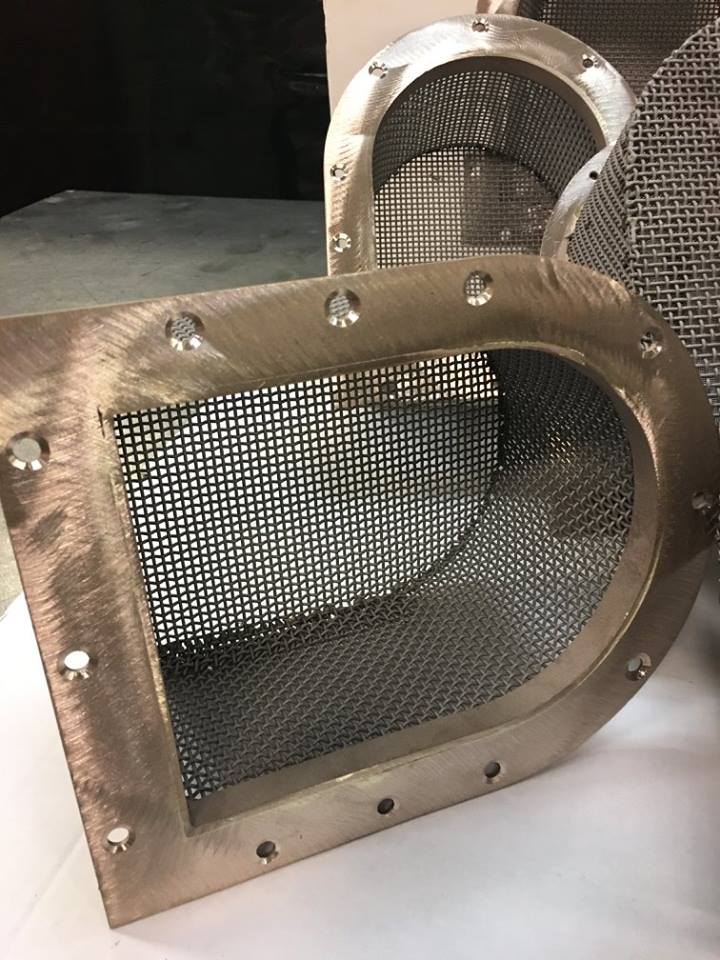

Monel 400/Copper Nickel strainers
Fabricated Stainless Steel Y type strainers

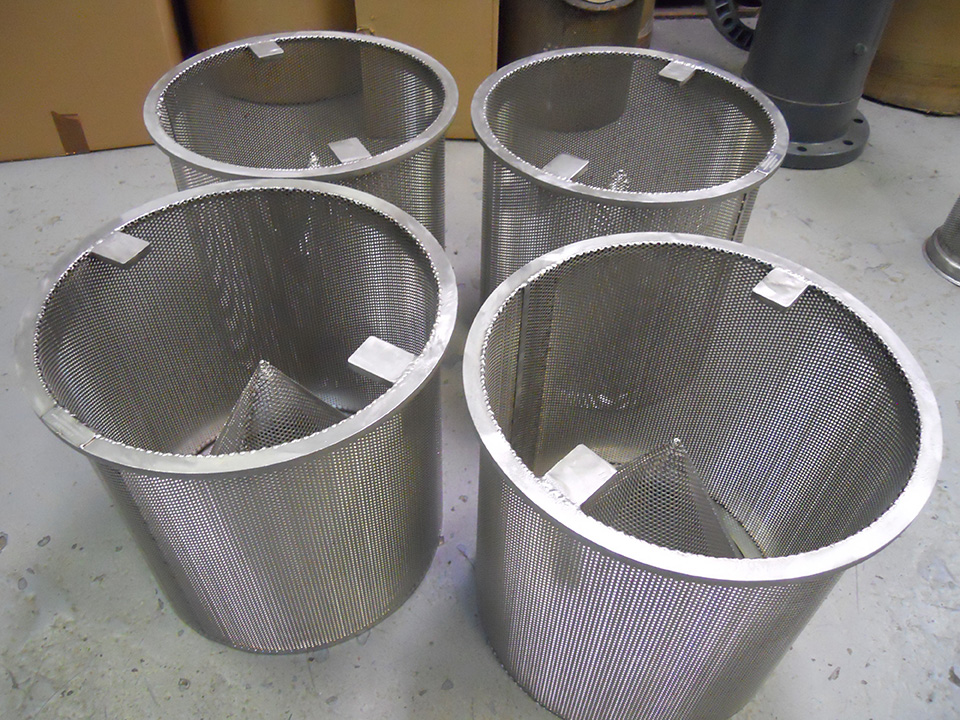

Heavy Duty Double Element Screens

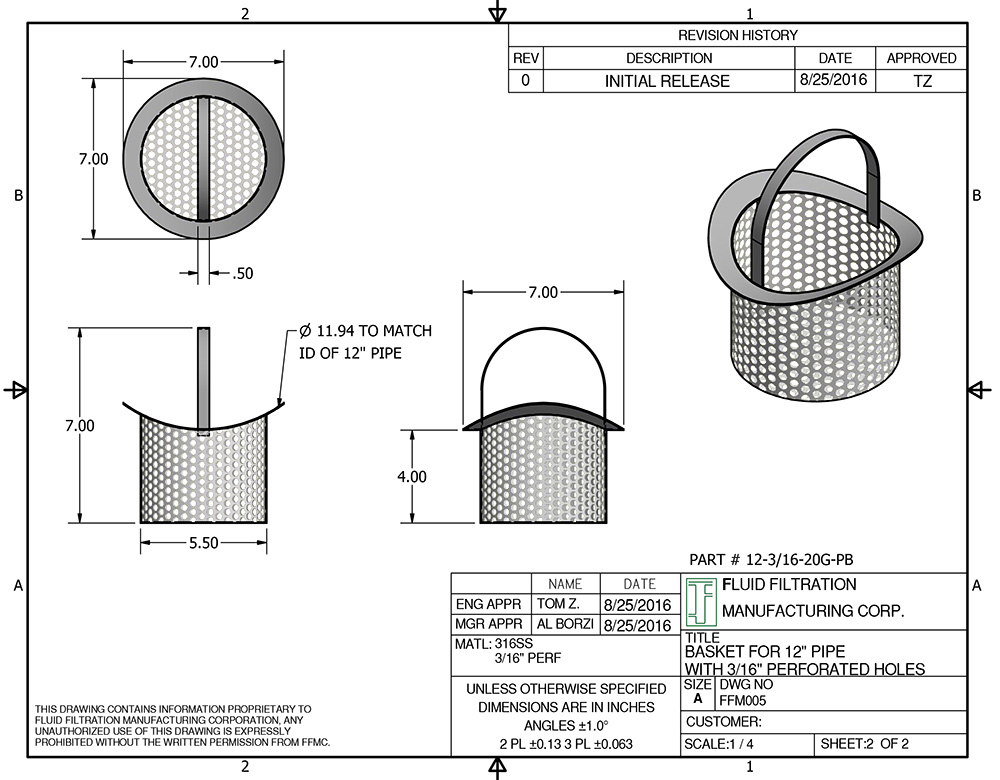

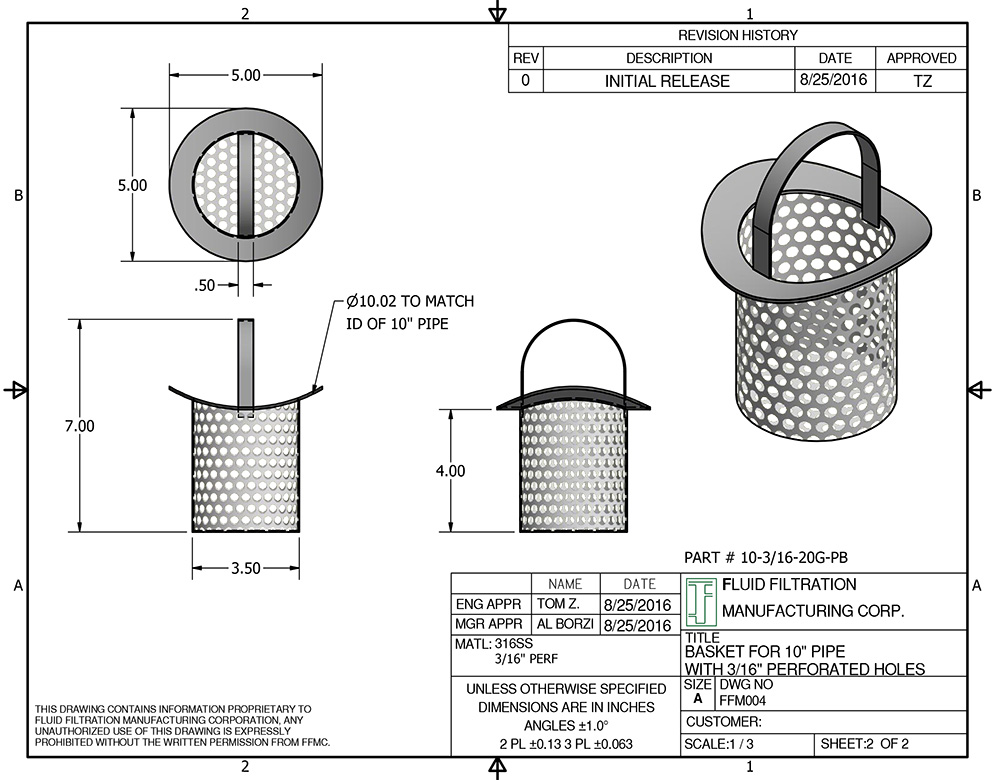

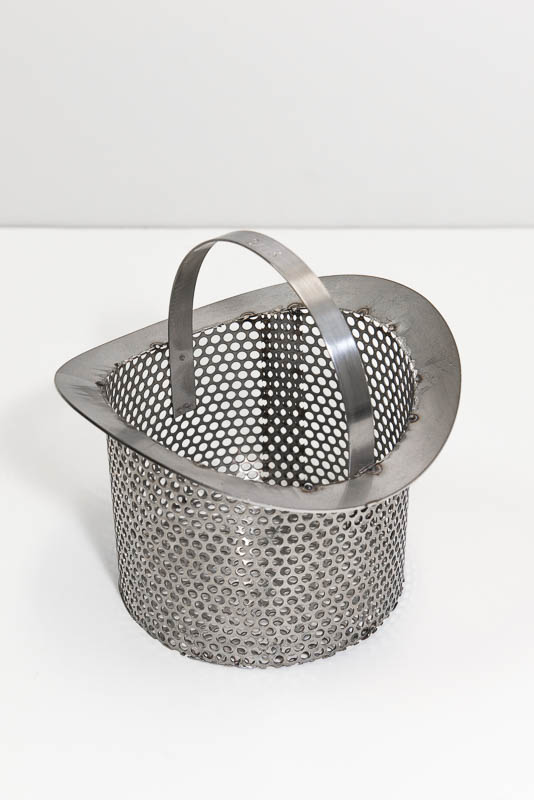

Pipe drainage baskets for 10 & 12 inch pipes in 3/16 perforated holes, 316 stainless steel material

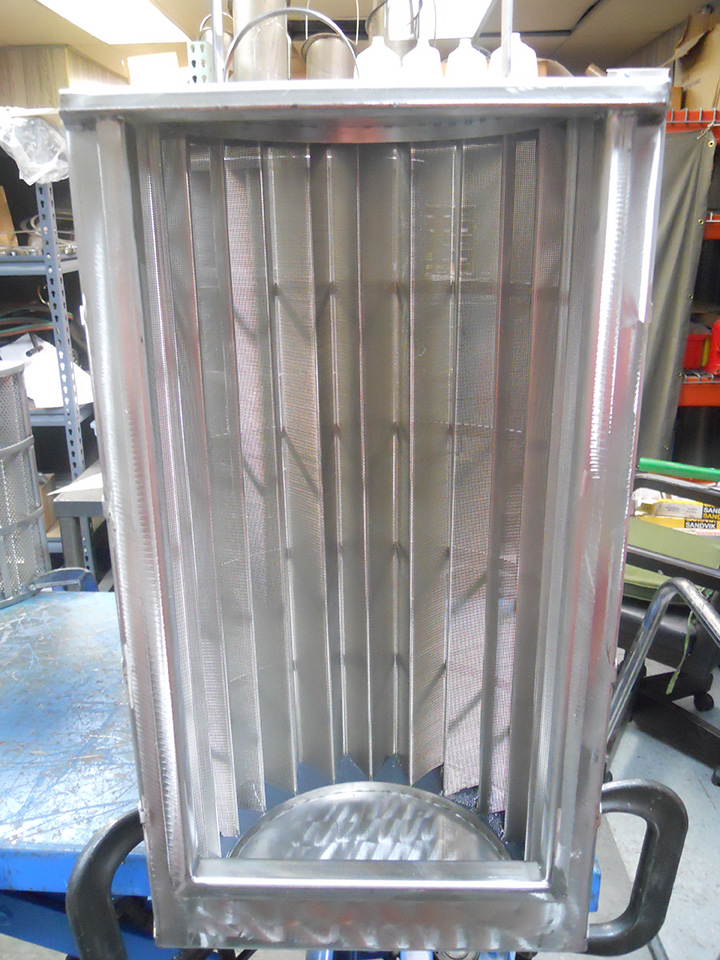

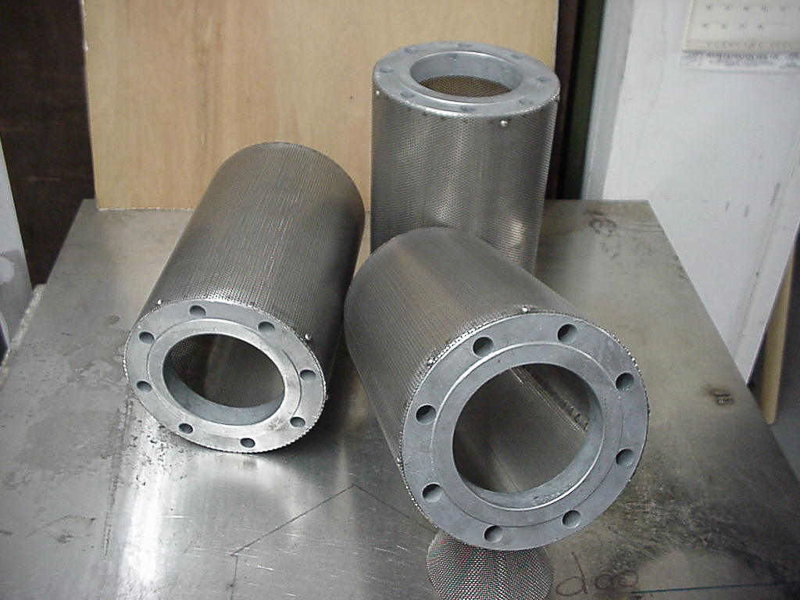

Large size fabricated perforated baskets with cage built Inside for extra support

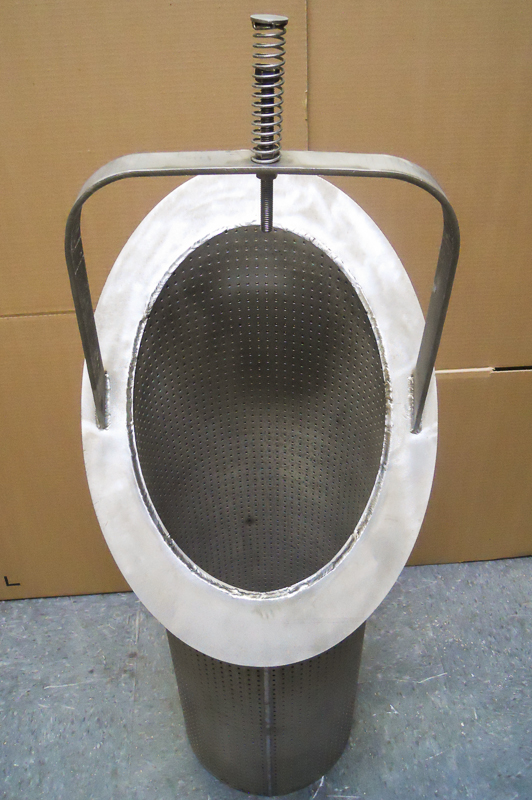

Tate and Dale replacement basket with custom stainless steel flange used to replace old cast iron flange for a stonger and longer lasting basket

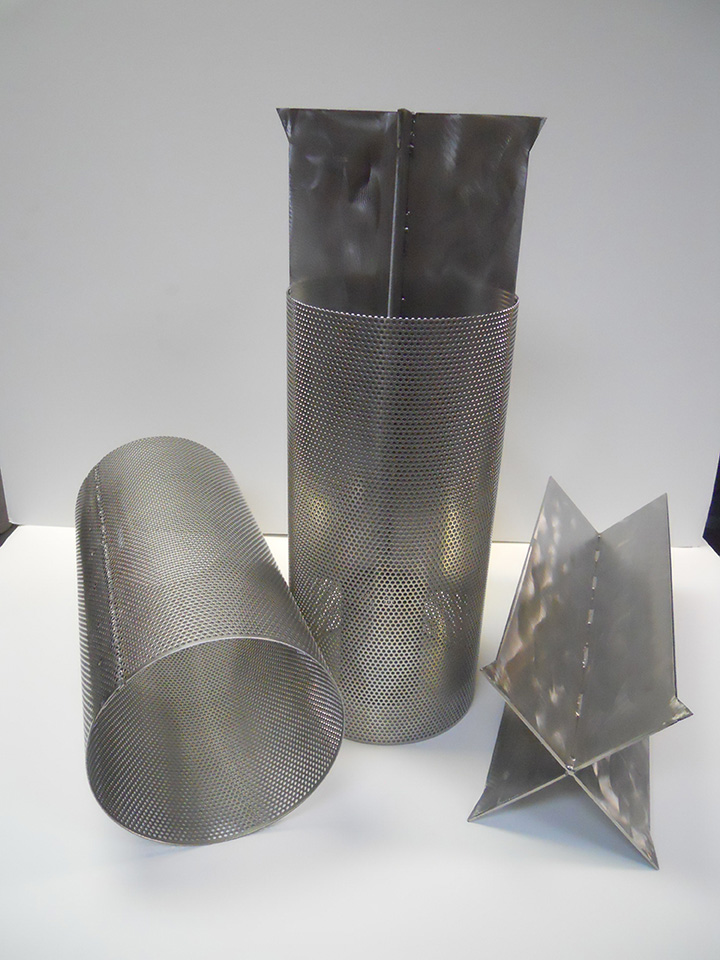

Size 10 inch Bell and Gosset Screens with Baffles
Perforated Lobster Pots convoluted mesh lined stainless steel baskets

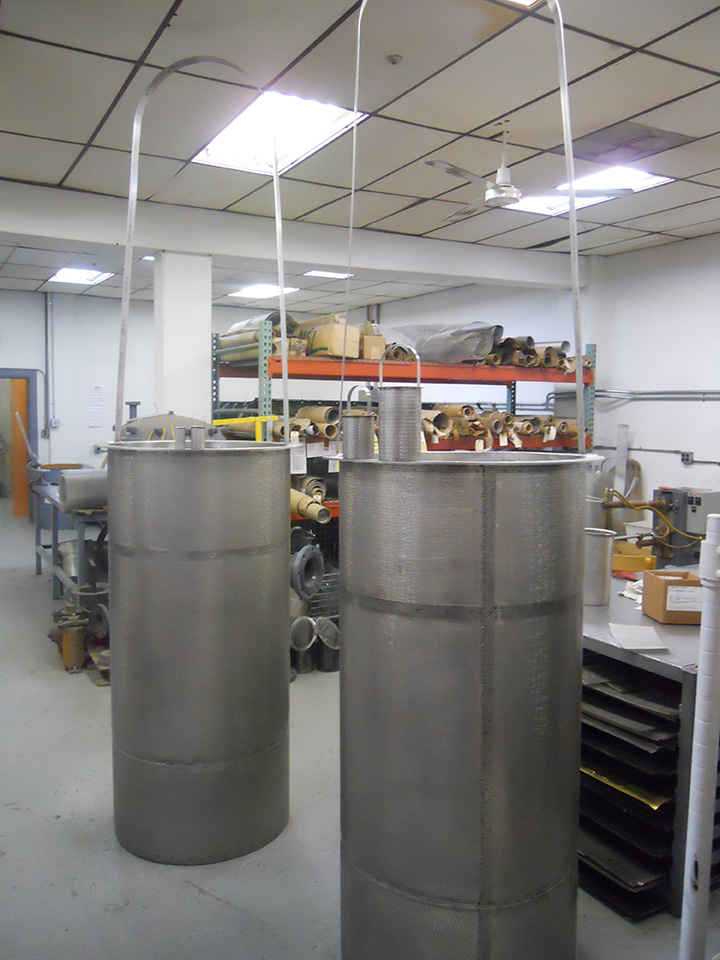

Long Stainless Steel Perforated Basket Strainers with Extra Support

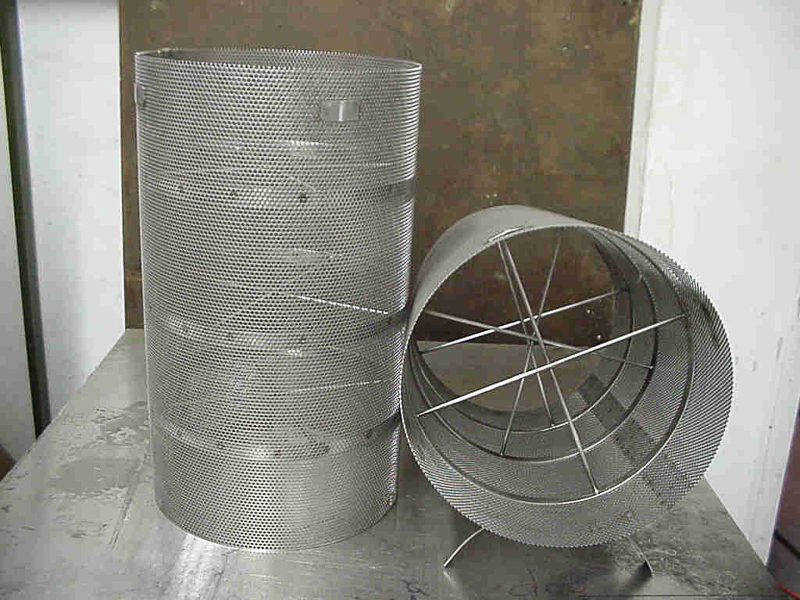

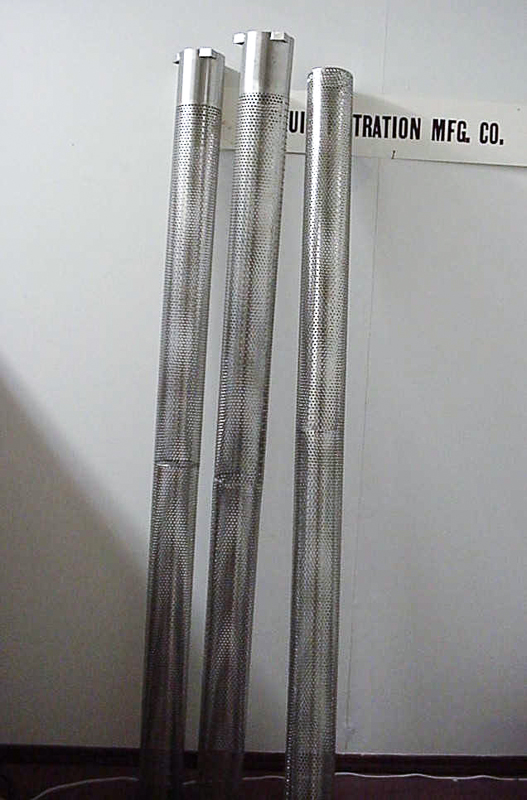

1/4 inch perforated stainless steel cylinders with support beams built inside for extra rigidity. Used in "Y" type strainers.
Special designed perforated strainers with stainless steel attachments.
316 stainless steel 1/4" perforated strainers, 8.0 feet long x 6.0 inch diameter.

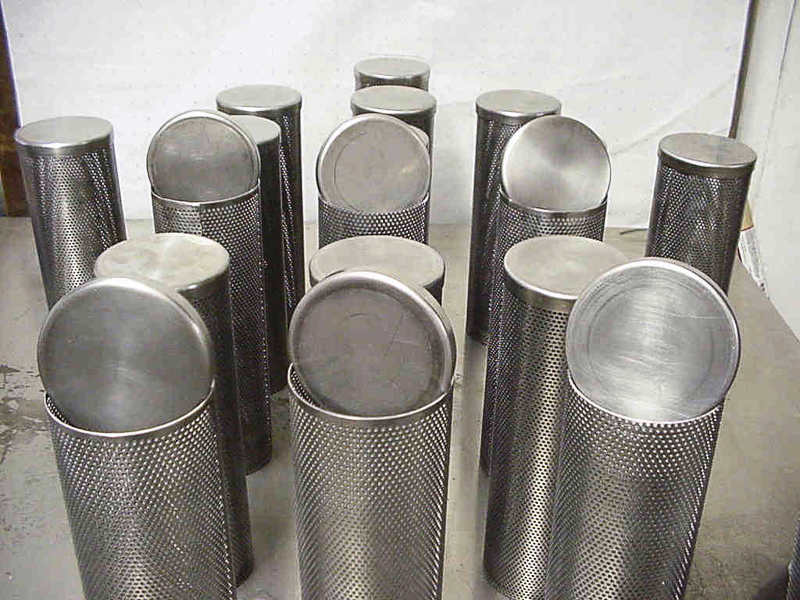

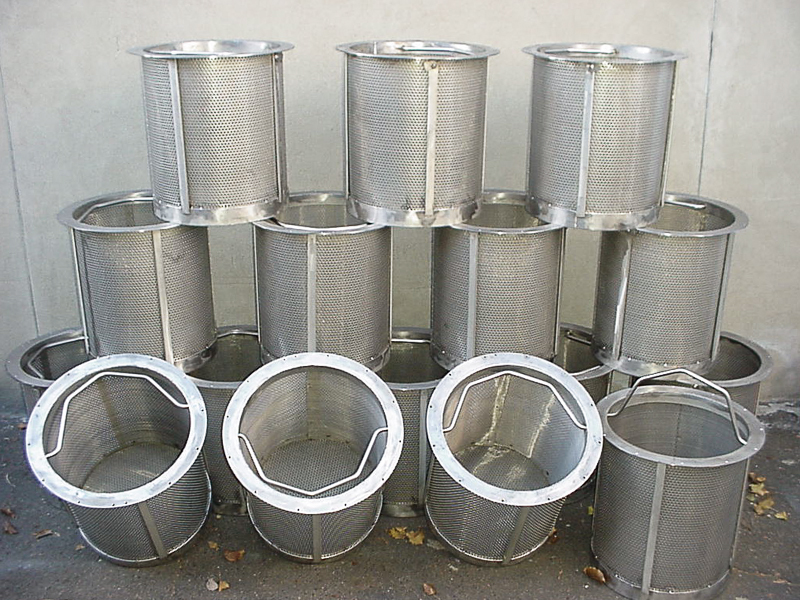

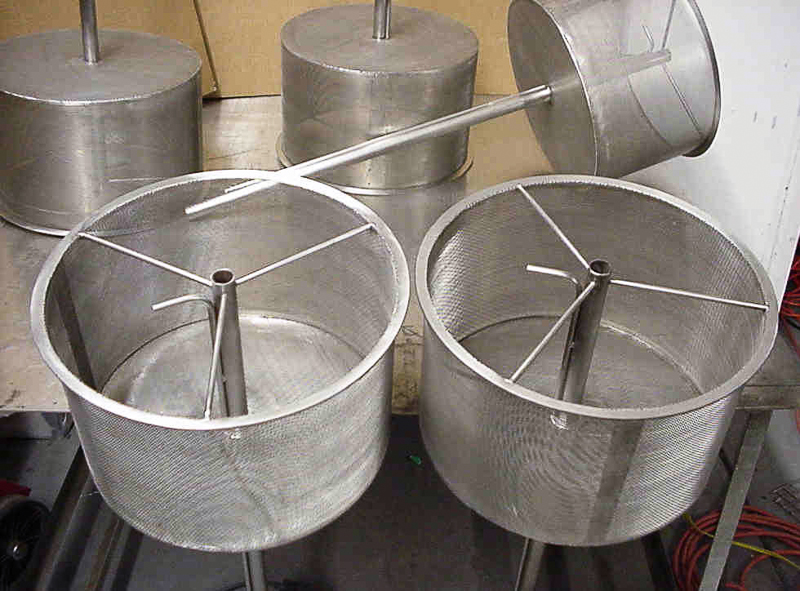

Perforated stainless steel and carbon steel basket strainers with perforated bottoms and removable solid covers.
Stainless steel 316 grooved flange basket strainers with 1/2" perforated material.
Heavy duty stainless steel drainage baskets.
Stainless steel heavy duty reinforced basket strainers with mesh liner used in machine shop industry for collecting metal particles.
>
All monel perforated baskets with monel mesh liner.
Fabricated stainless steel housing with perforated basket.
Lobster pot style convoluted fabricated stainless steel strainers for 10, 12, 16, and 18 inch Hayward model 72-73 simplex strainers and model 50-51 duplex strainers, lined with or without stainless steel mesh. Also available in Monel material.

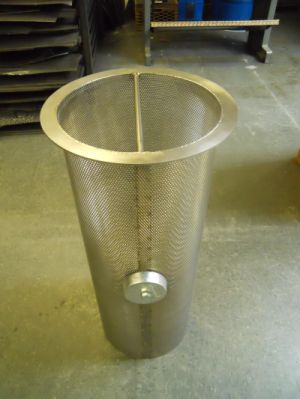

Stainless steel baskets with zinc plated attachment

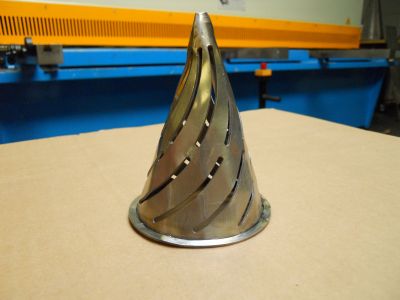

Special custom cone strainer.
Stainless steel electro polished eliptical 1/2' perforated stainers.

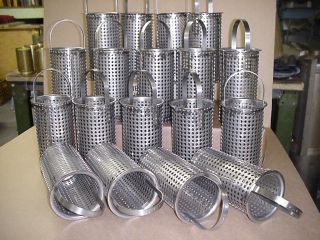

1/4 perforated basket strainers.
Monel heavy duty 1/4" Thick material with water jet 1/8" perforation.
Sitemap

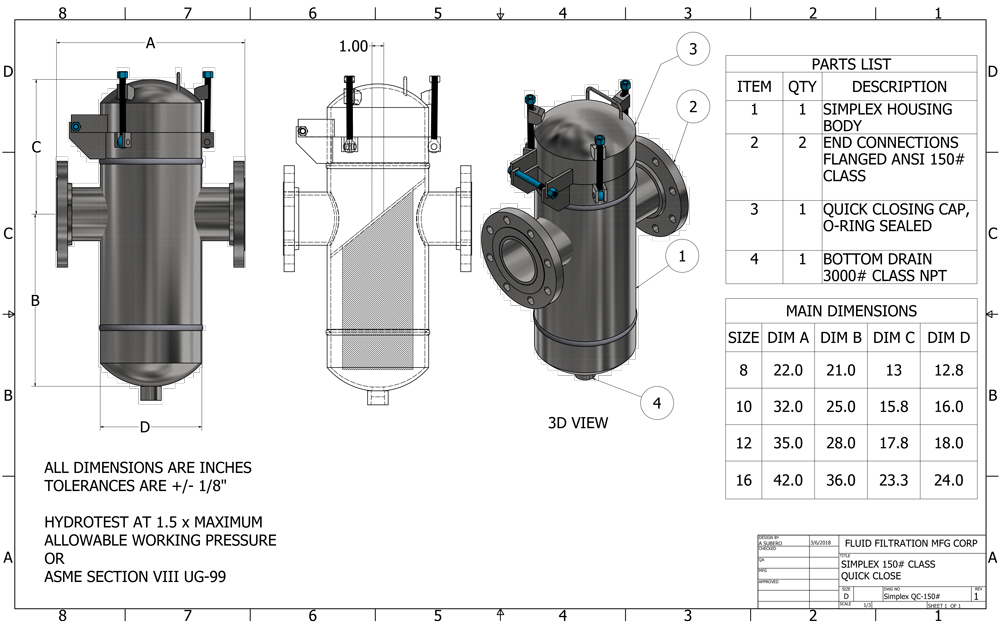

Simplex 150# Class Quick Close(revised)
