Wedge Wire Screens

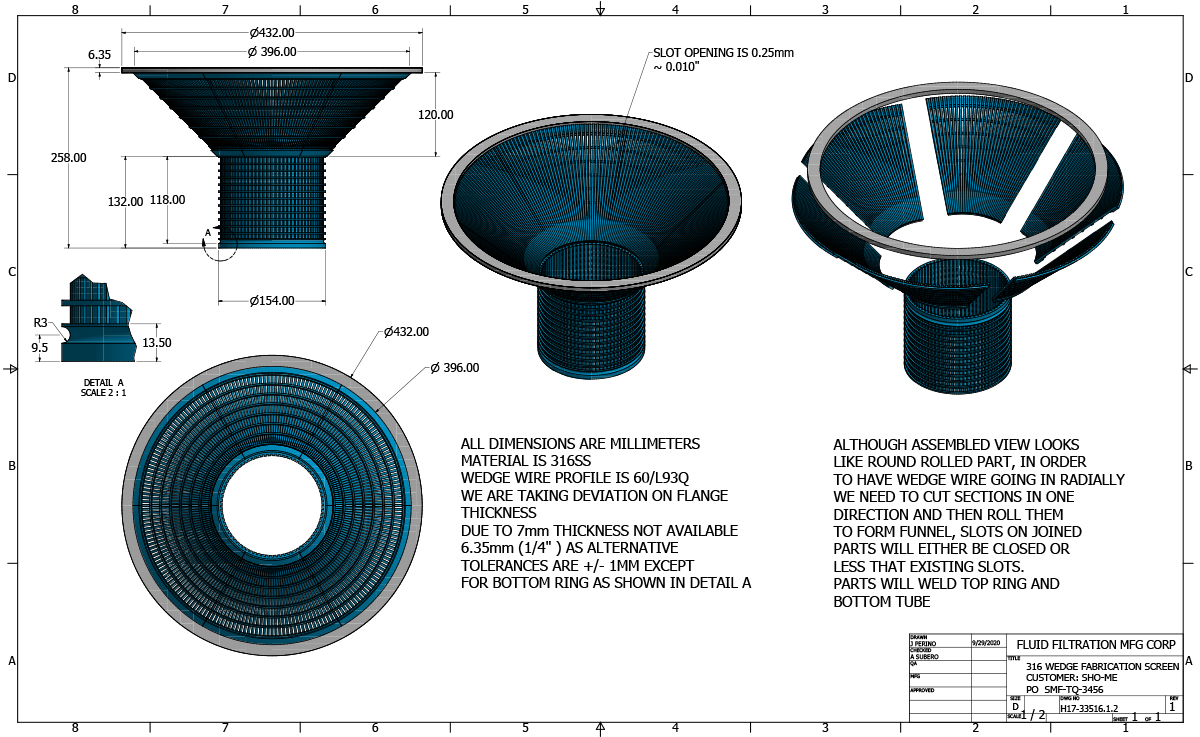

Click above to preview drawings
|
The design and versatility of wedge wire products makes itself an ideal component for fluid treatment industry.
|
Specification
Wedge-Wire products are manufactured by an exclusive process of continuously welding an outer profile wire circumferentially in a helix pattern to a series of longitudinal support rods.
Alloys available are Stainless Steels, Monel, Titanium, Alloy C-276
 |

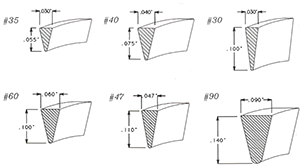

Profile Wire
 |

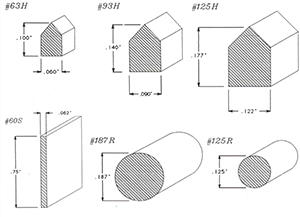

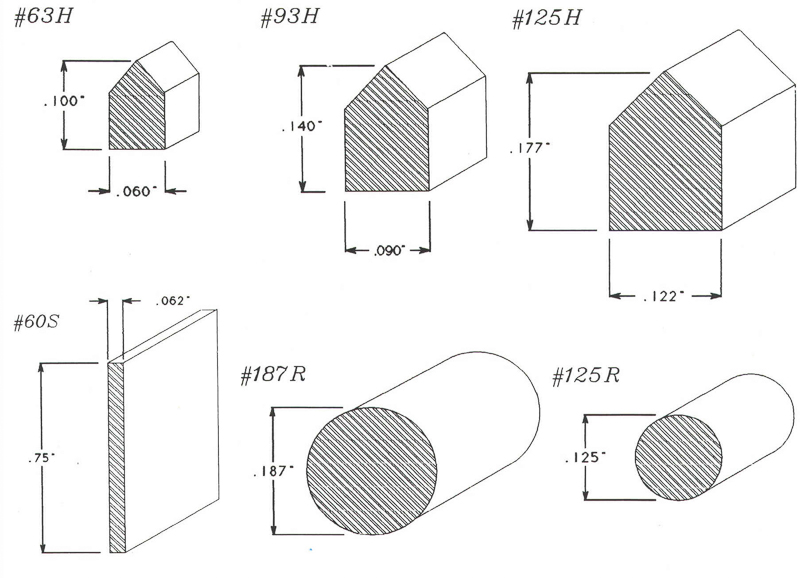

Suport Rods
 |
|
Particle Siz
| U.S. Mesh |
Slot Size (inches) |
Microns |
Millimeters |
| 10 |
.0787 |
2000 |
2.00 |
| 20 |
.0331 |
841 |
.84 |
| 25 |
.0280 |
707 |
.71 |
| 30 |
.0232 |
595 |
.59 |
| 40 |
.0165 |
420 |
.42 |
| 50 |
.0117 |
297 |
.297 |
| 60 |
.0098 |
250 |
.250 |
| 70 |
.0083 |
210 |
.210 |
| 80 |
.0070 |
177 |
.177 |
| 100 |
.0059 |
149 |
.149 |
| 120 |
.0049 |
125 |
.125 |
| 140 |
.0041 |
105 |
.105 |
| 170 |
.0035 |
88 |
.088 |
| 200 |
.0029 |
74 |
.074 |
| 270 |
.0021 |
53 |
.053 |
|

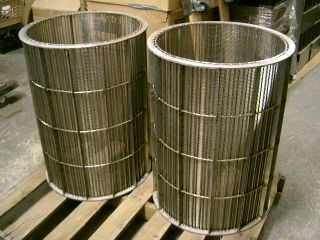

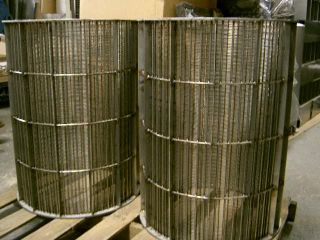

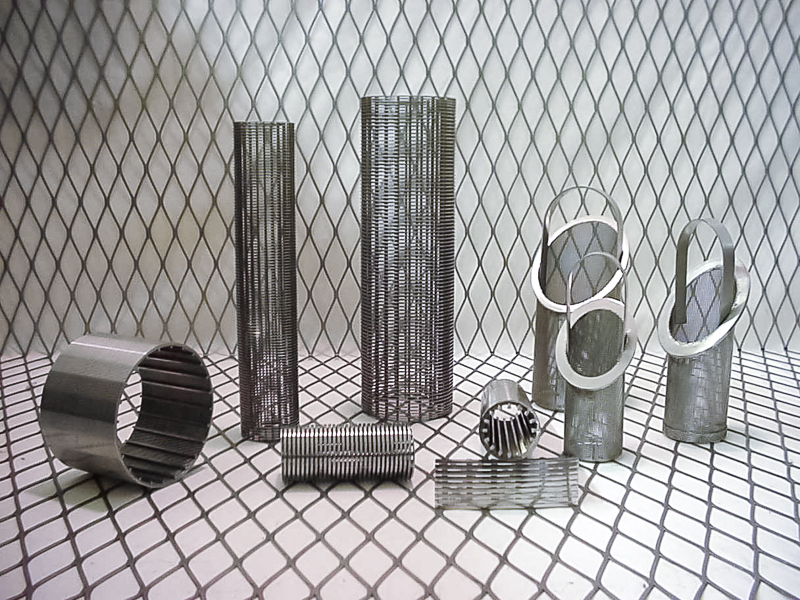

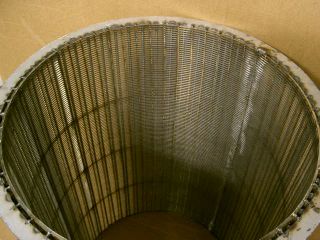

Wedge Flow/Wedge Wire Screens Stainless Steel type

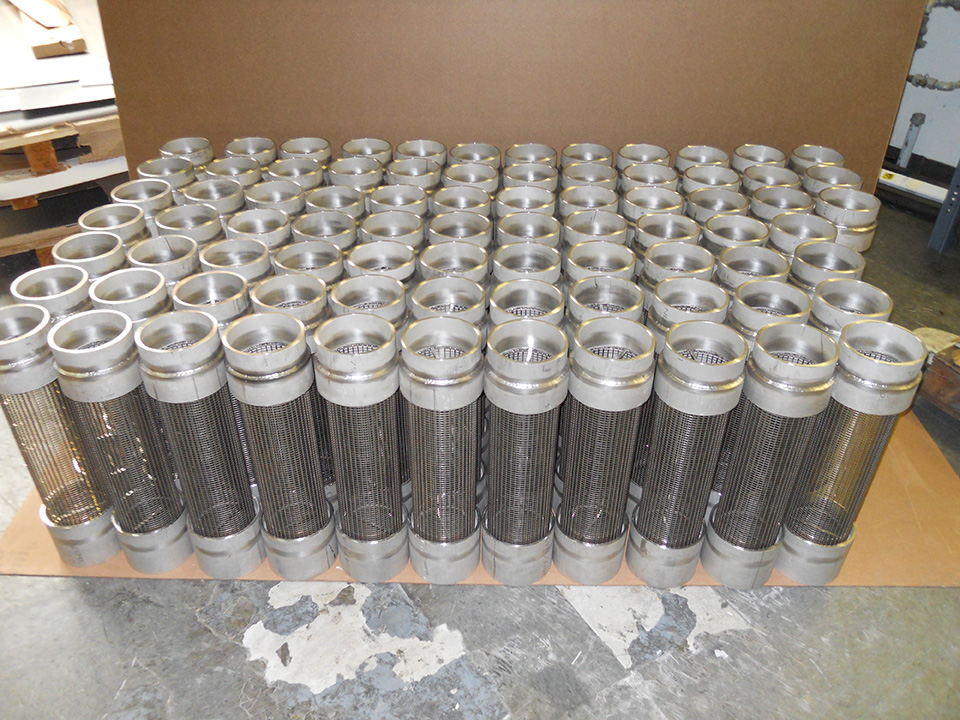

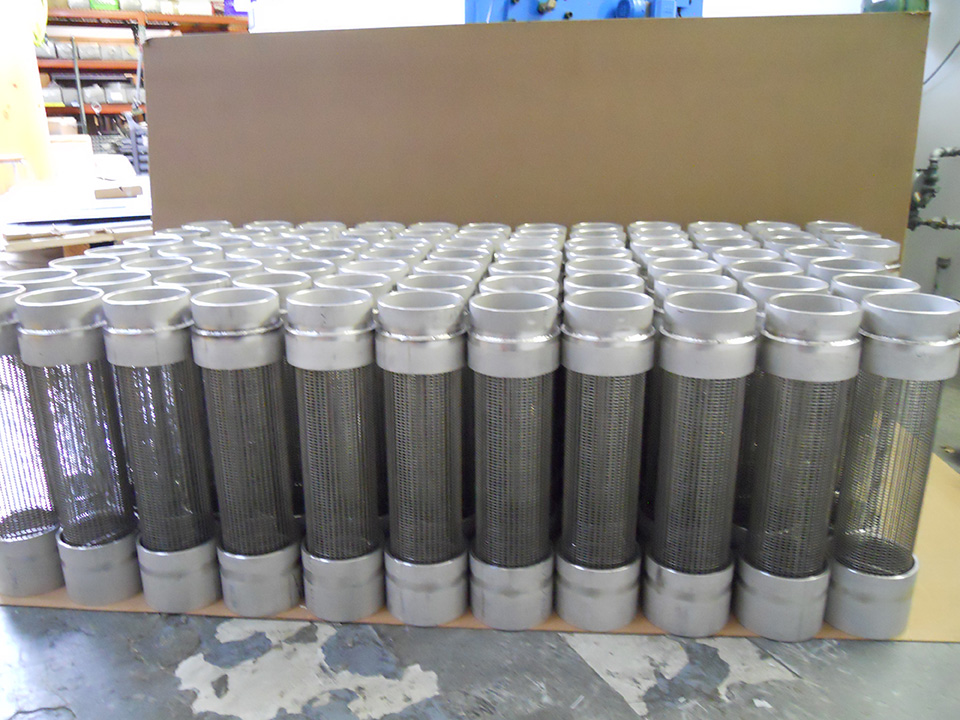

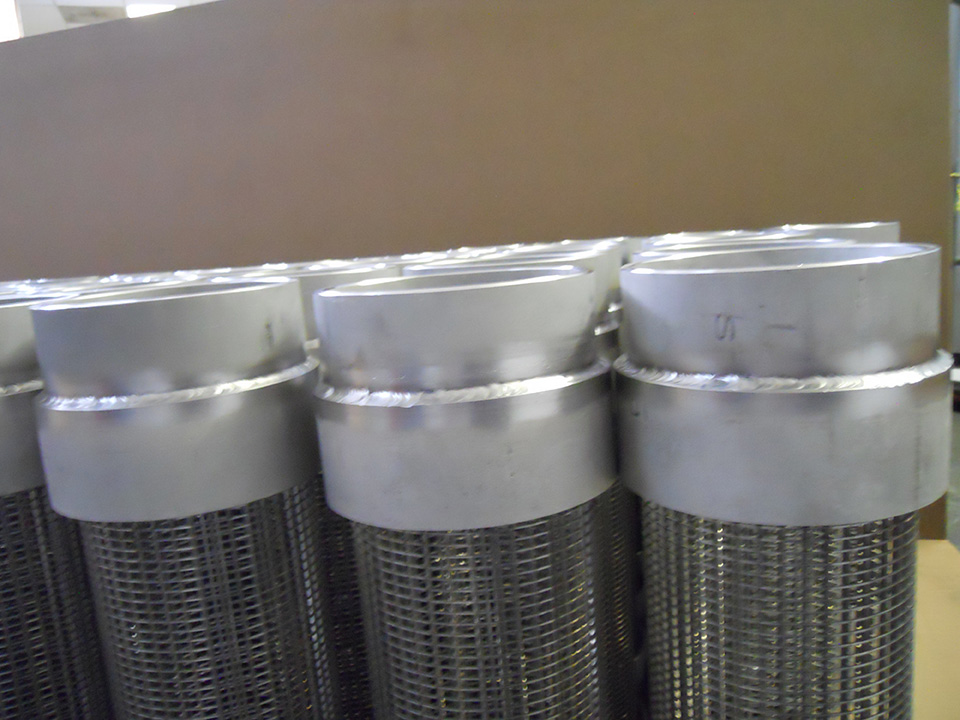

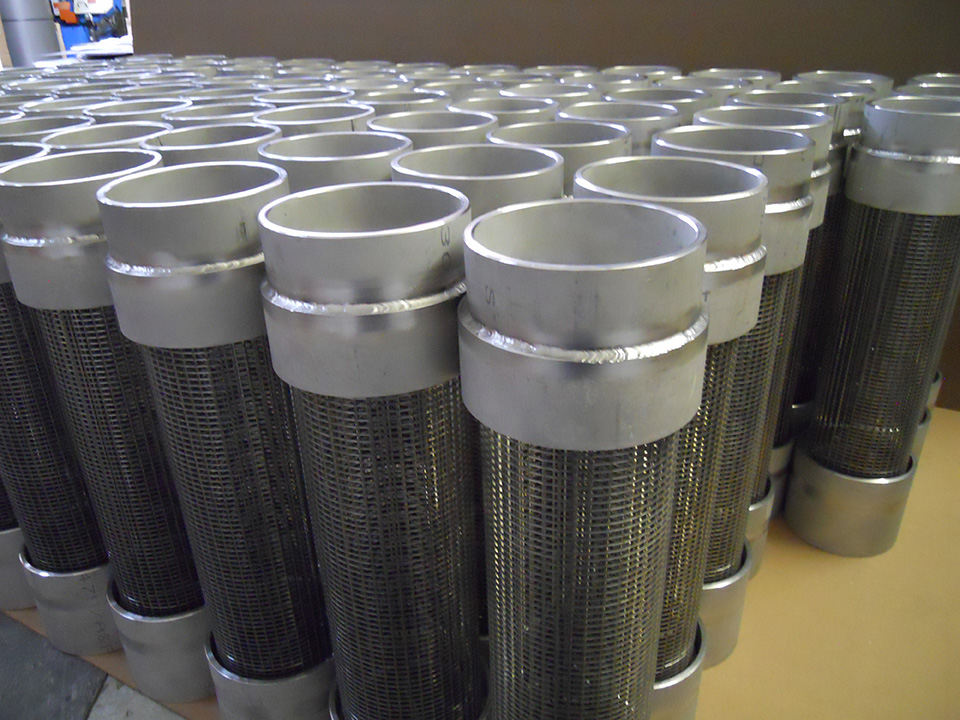

Wedge Wire SS Strainers with top and bottom enclosures

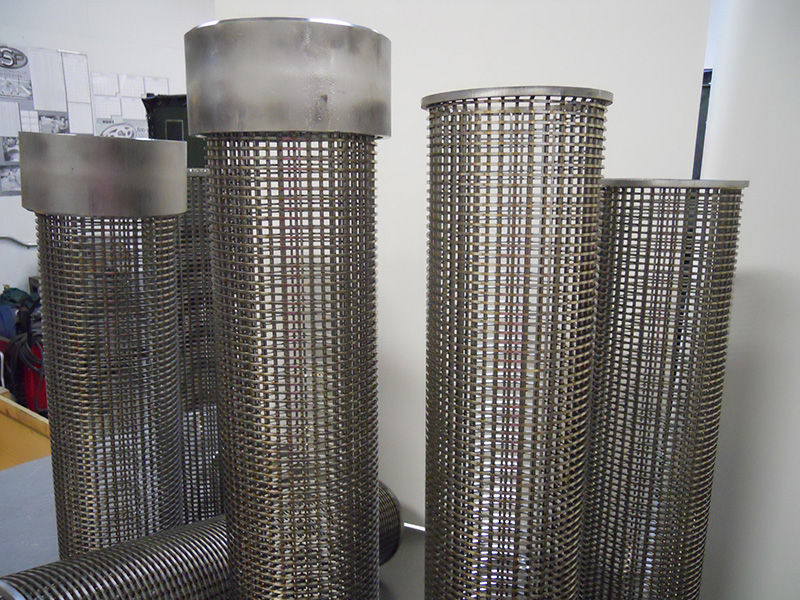

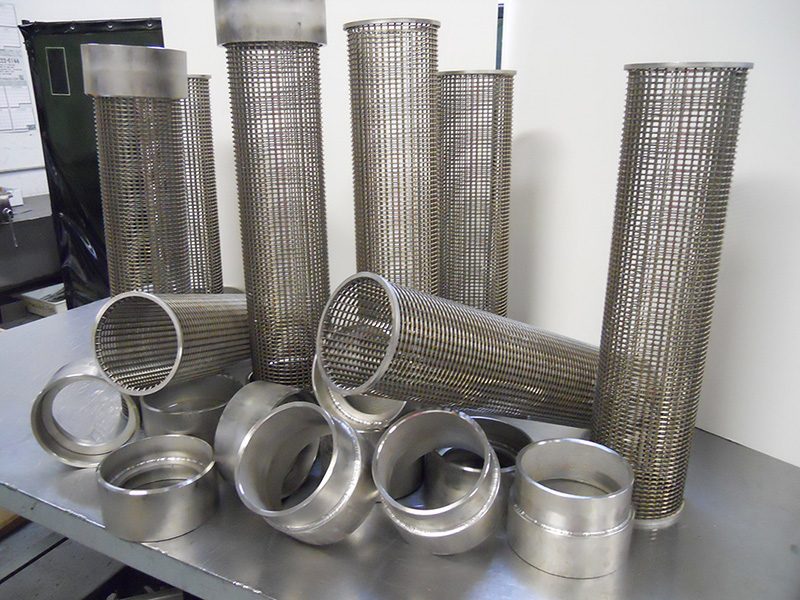

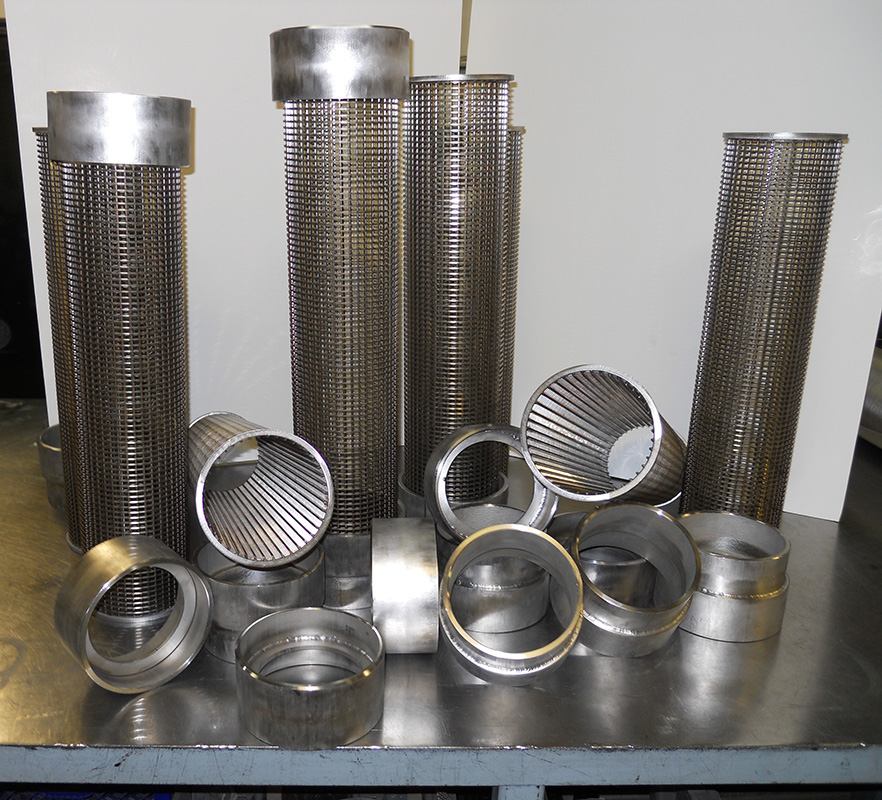

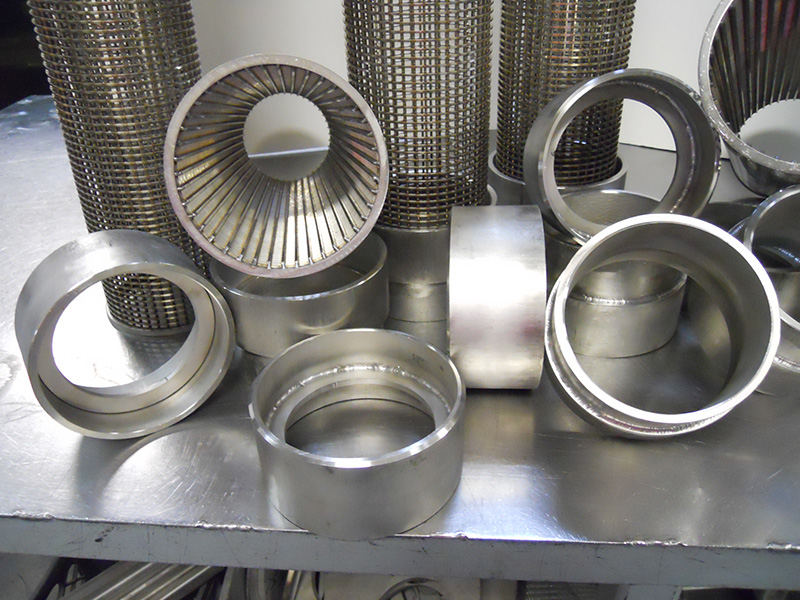

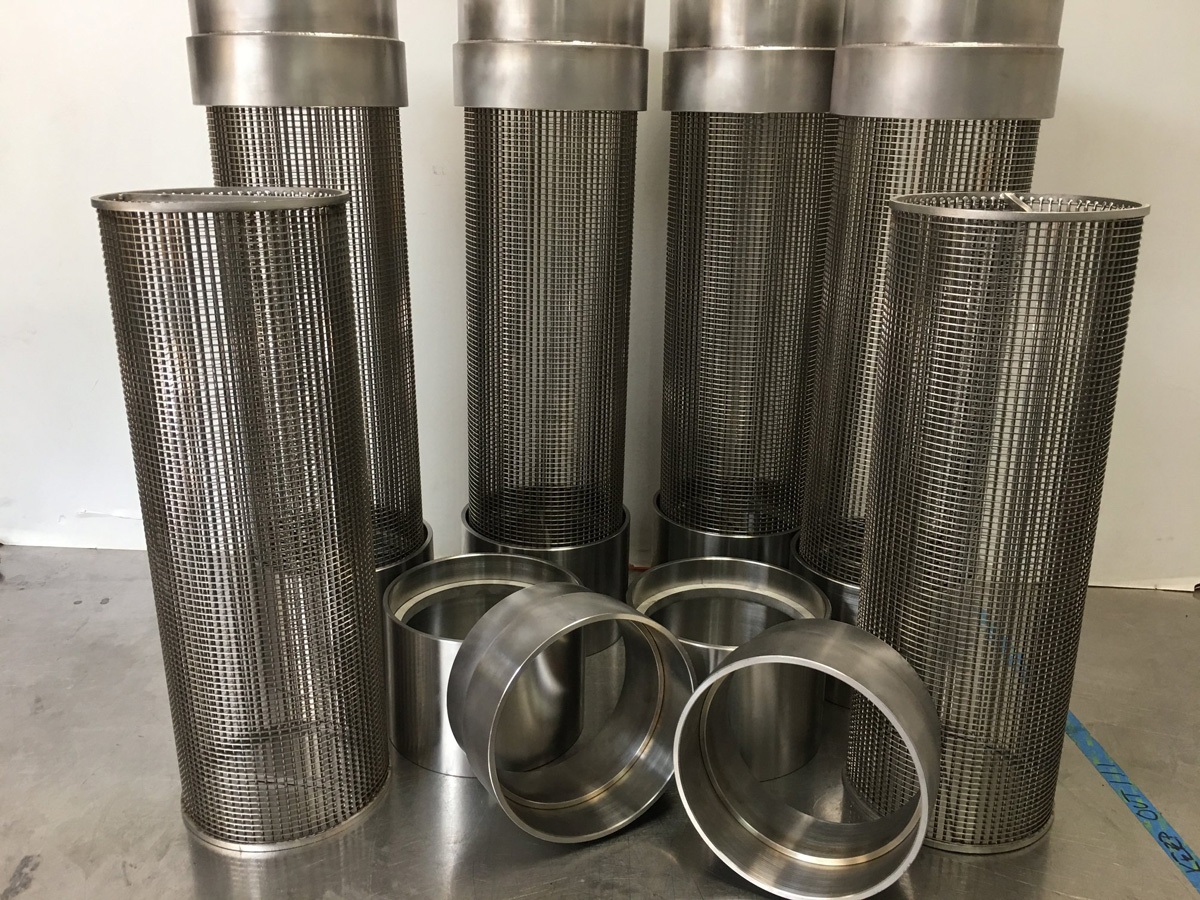

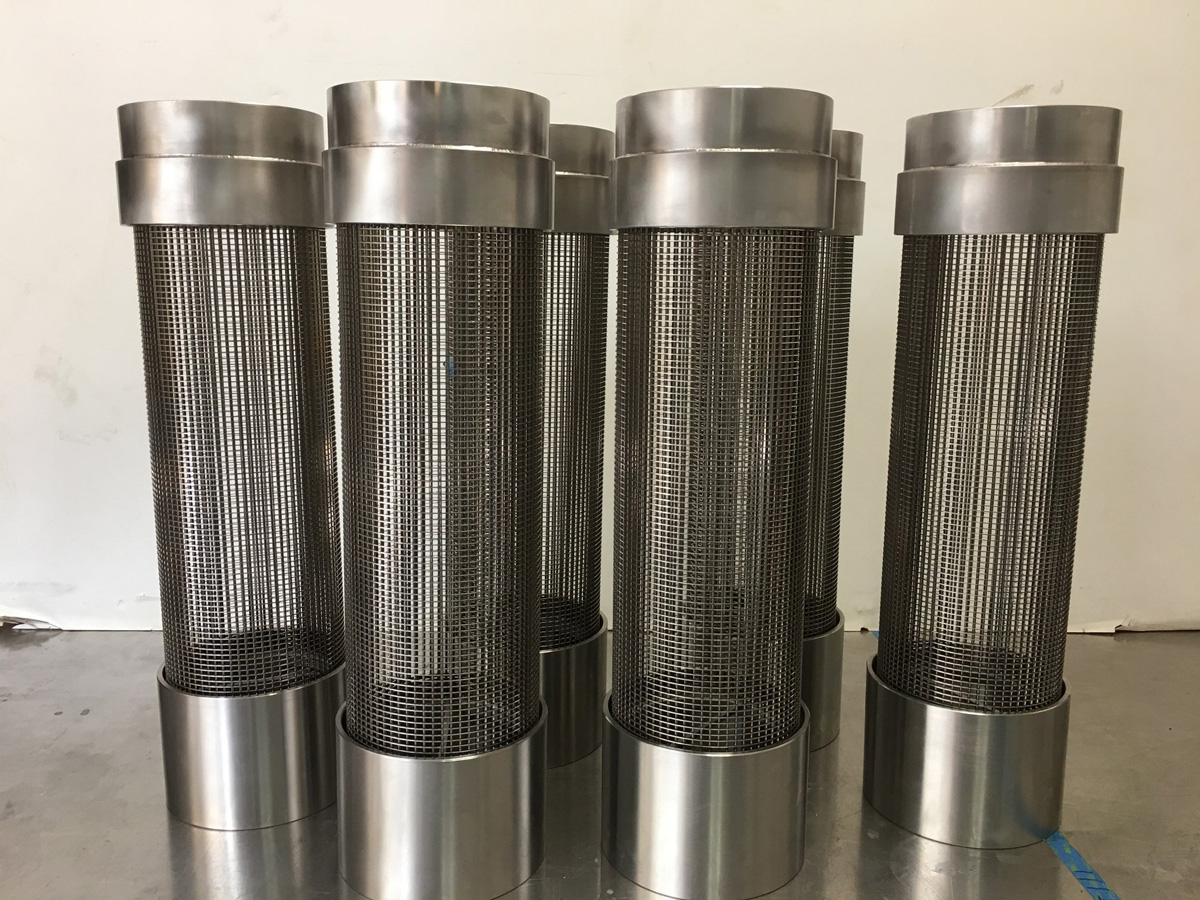

Heat Exchange Wedge Wire Stainless Steel 316 Strainers with Solid Top and Bottom Rings

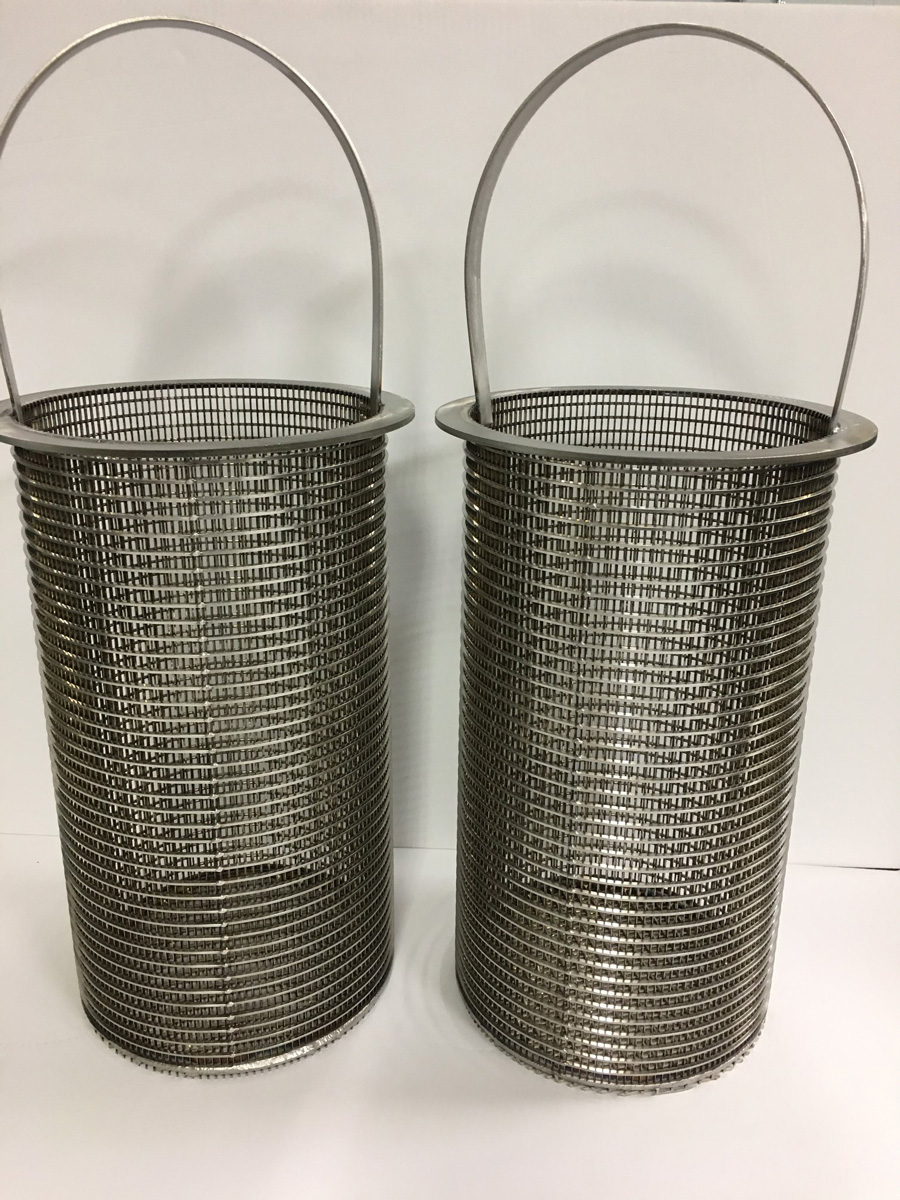

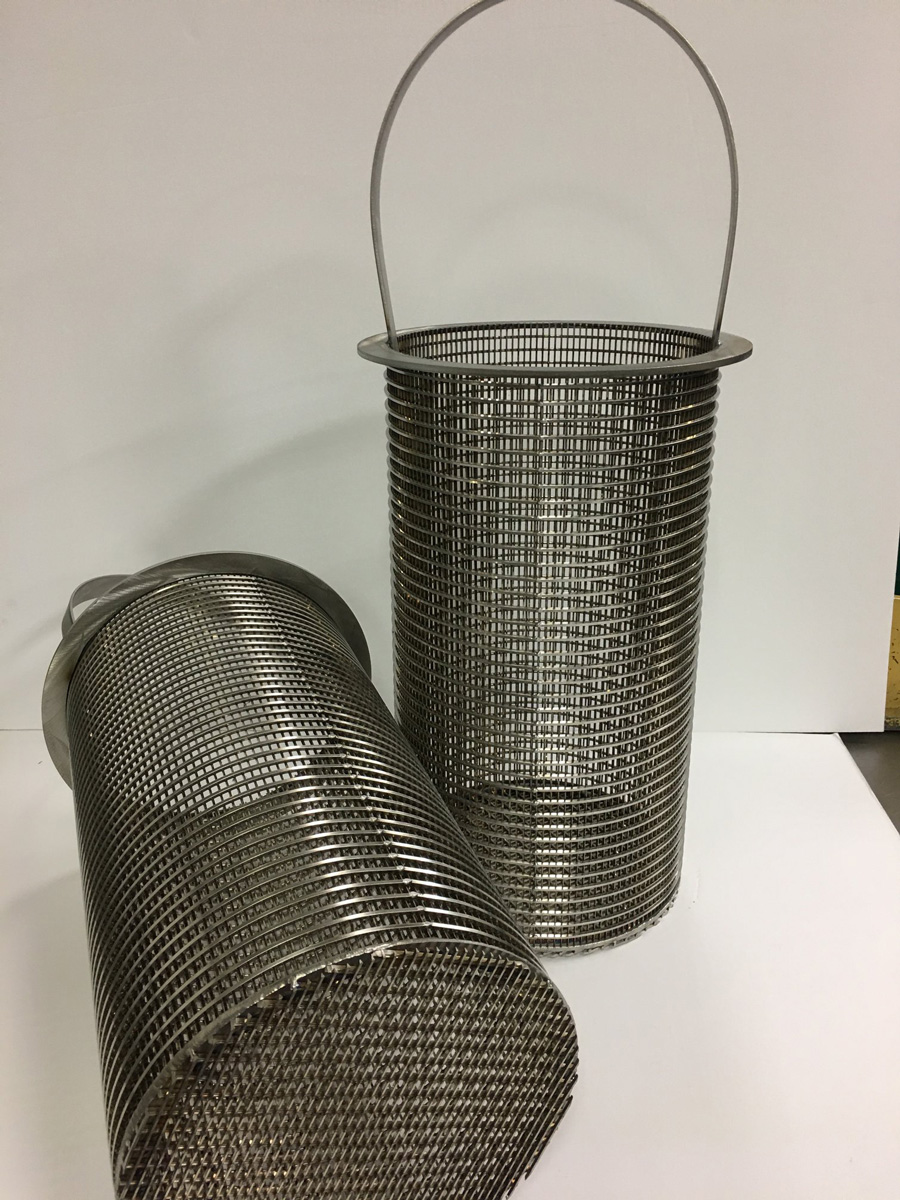

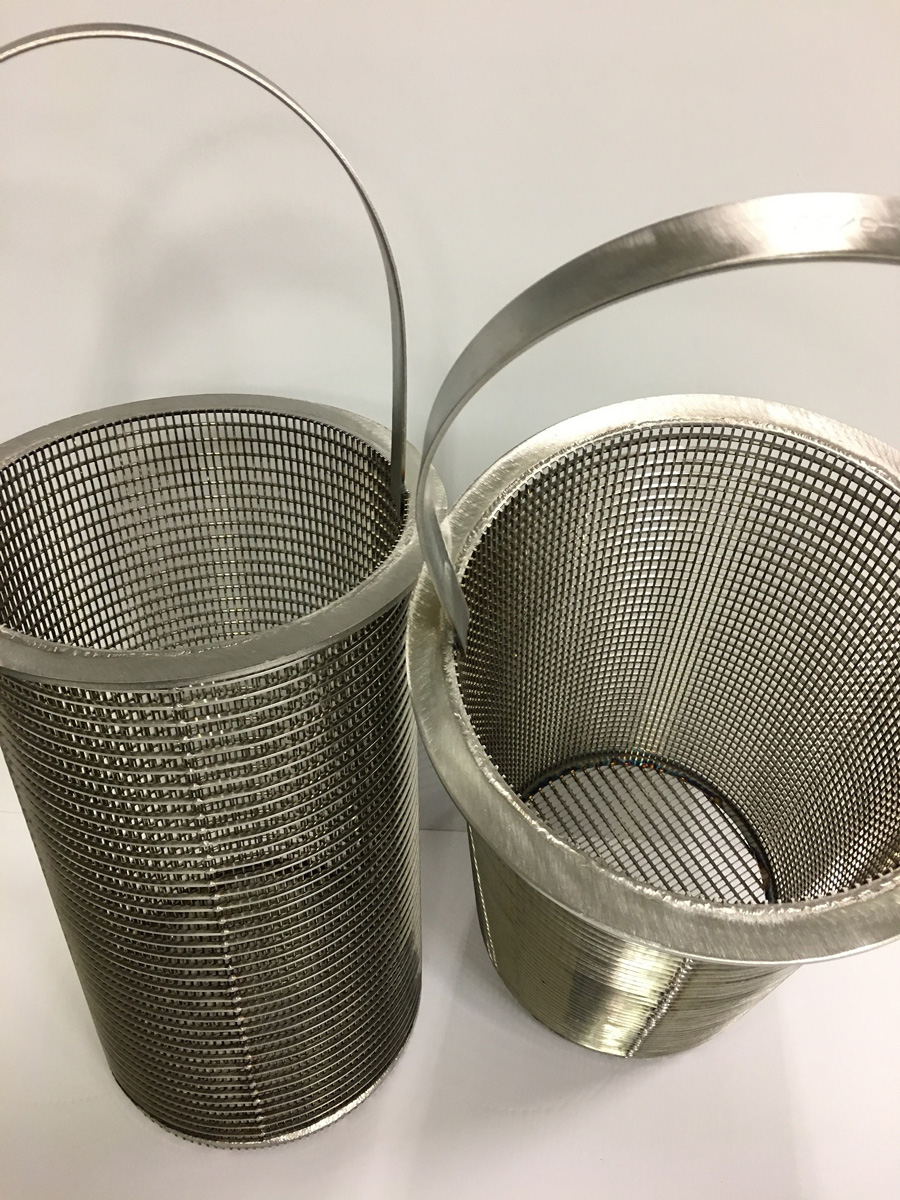

Wedge Wire/Wedge Flow Hastelloy C-276 basket strainers

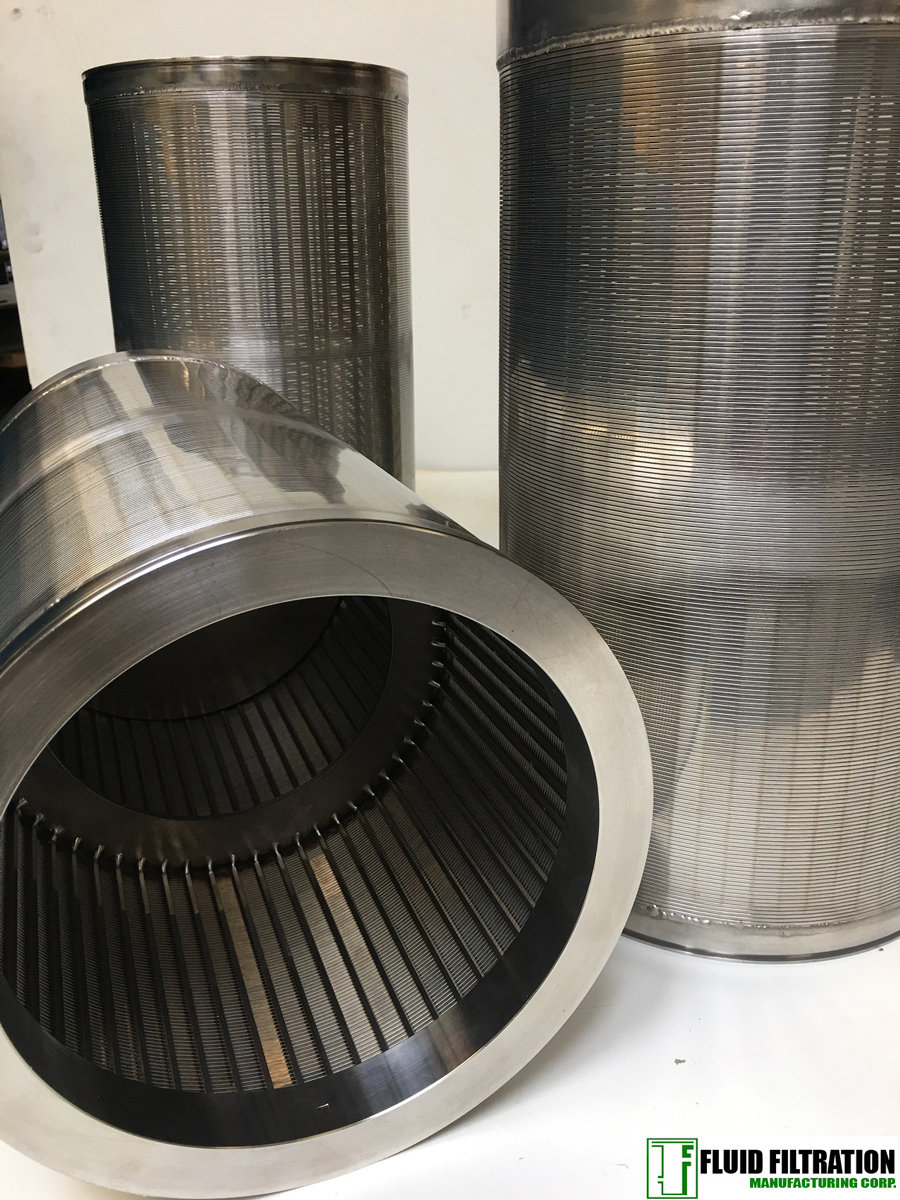

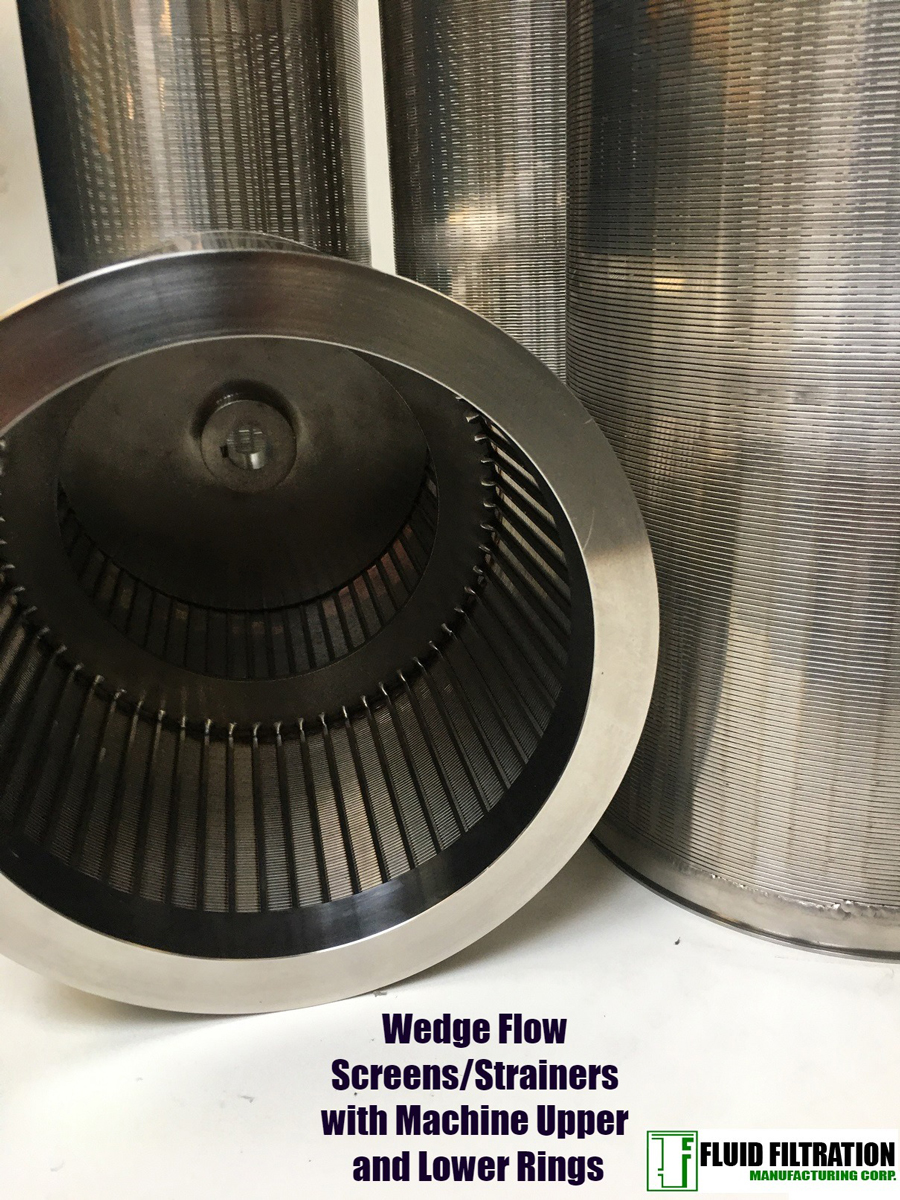

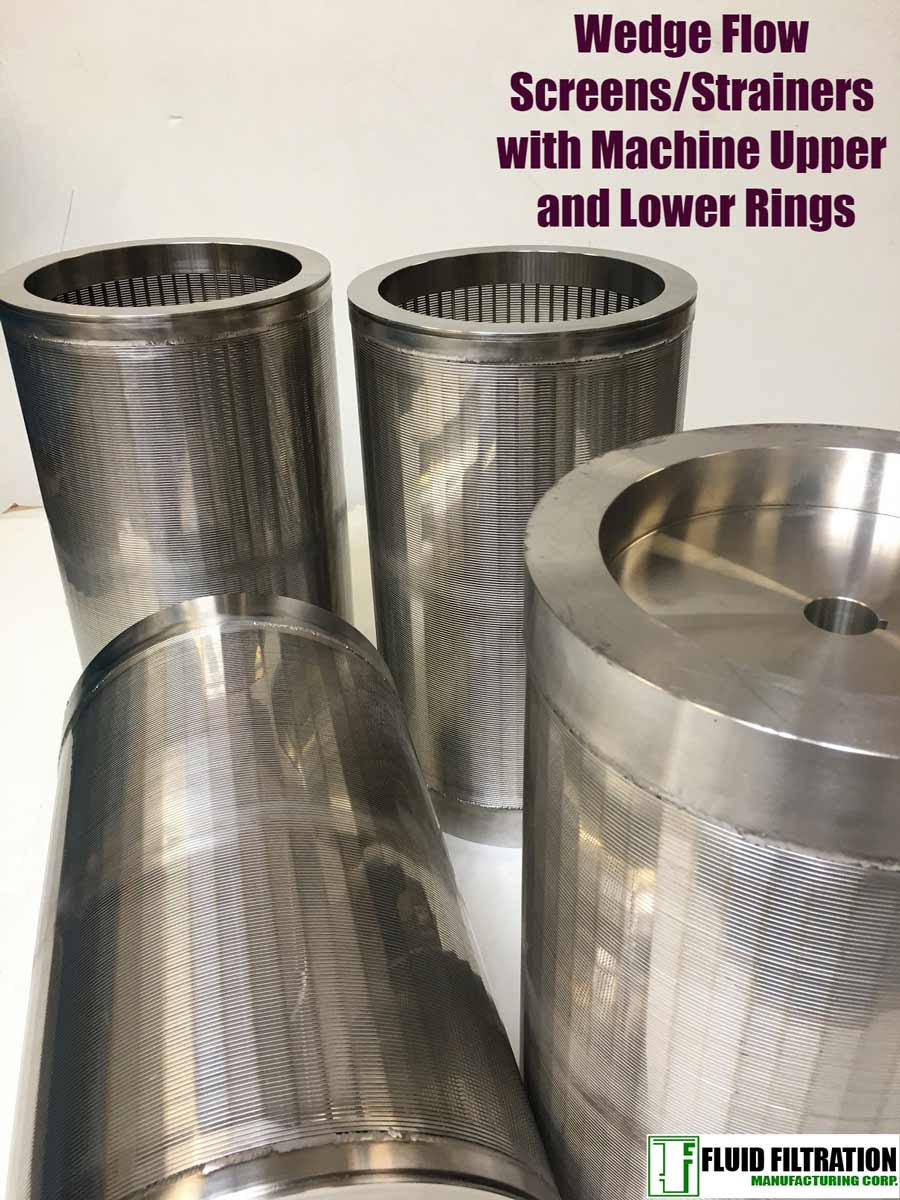

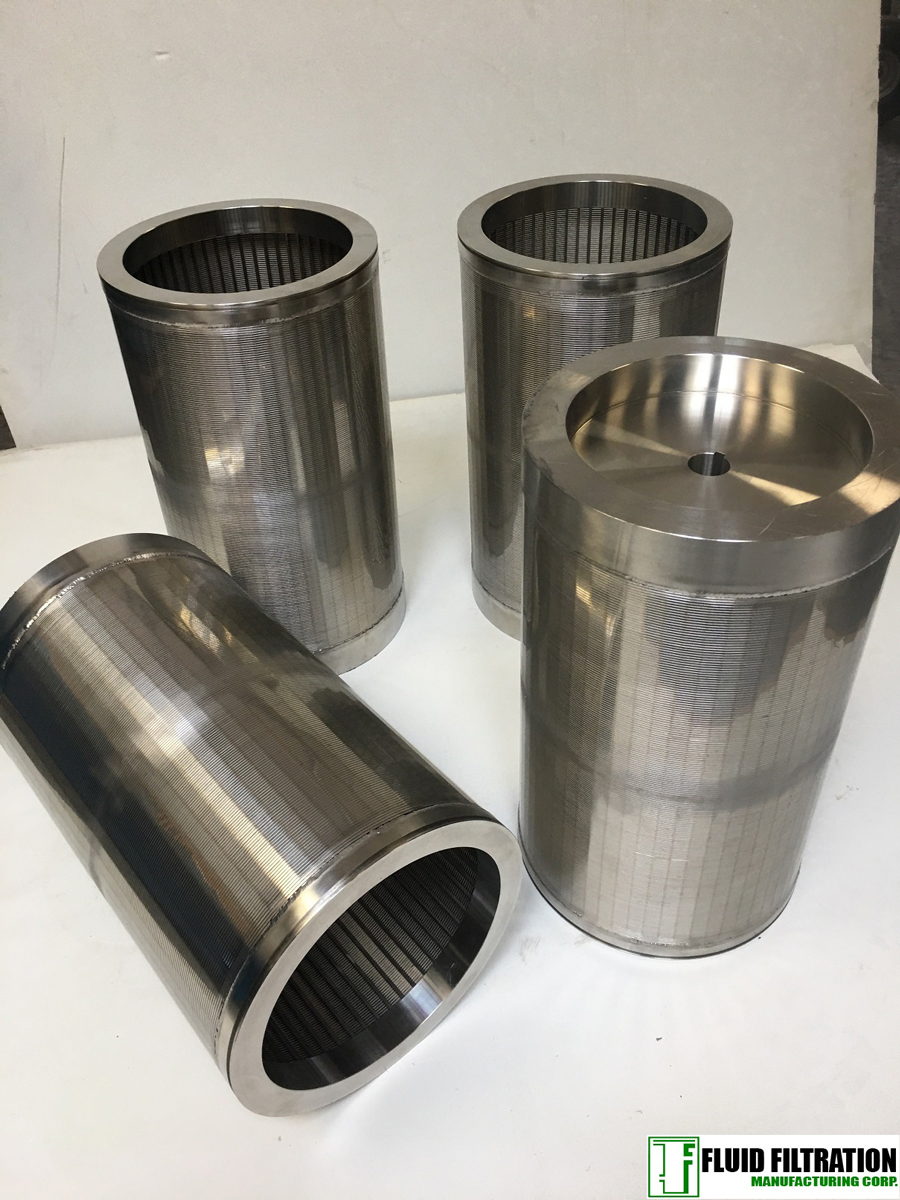

Wedge Flow Screens/Strainers with Machine Upper and Lower Rings

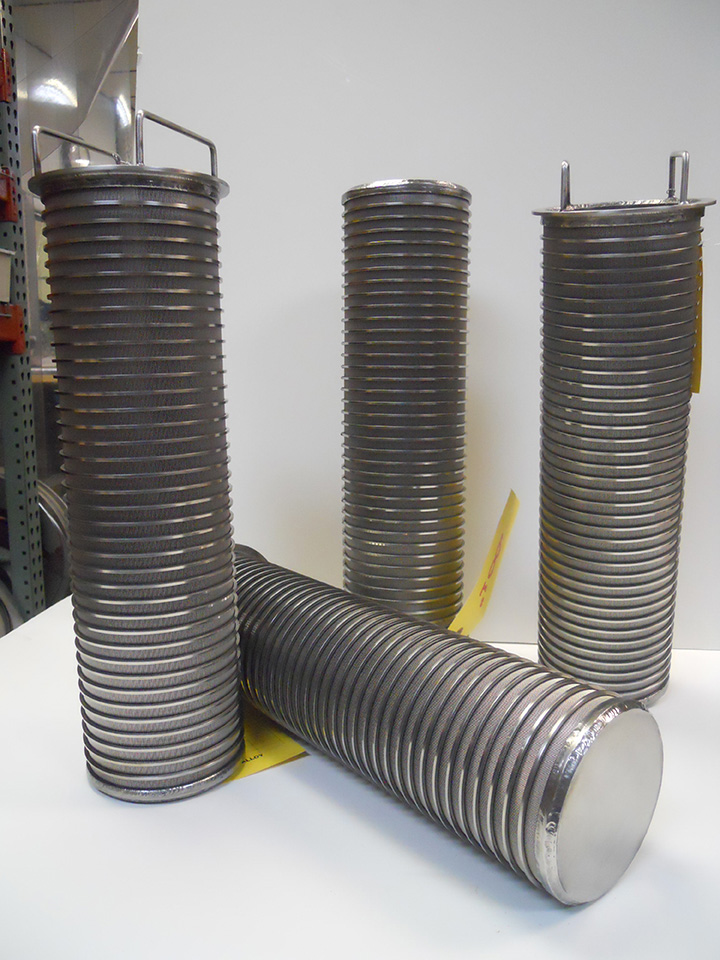

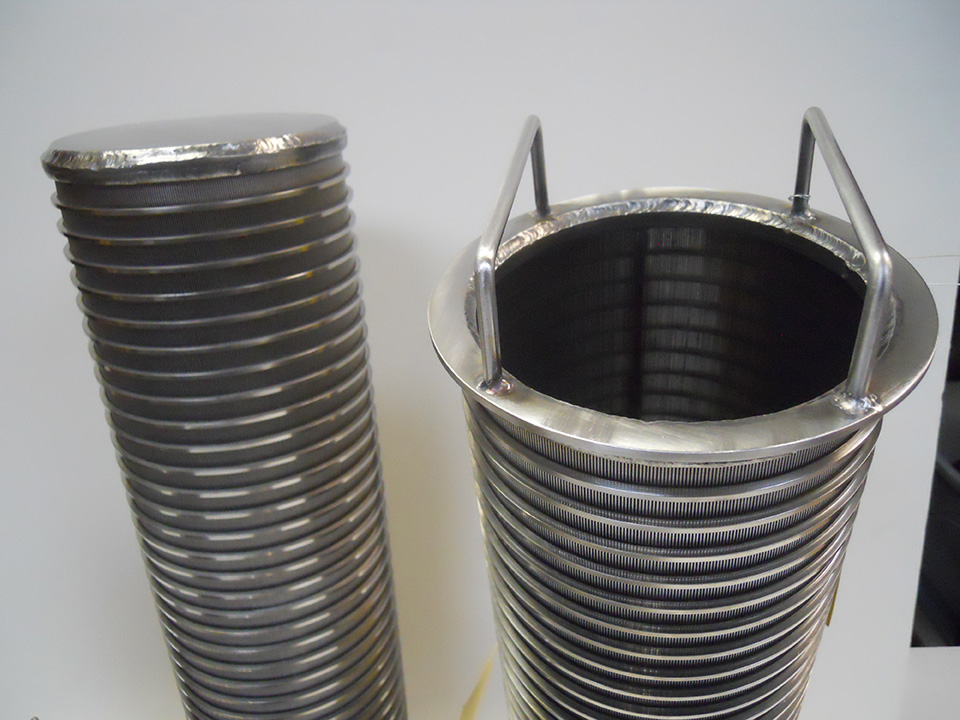

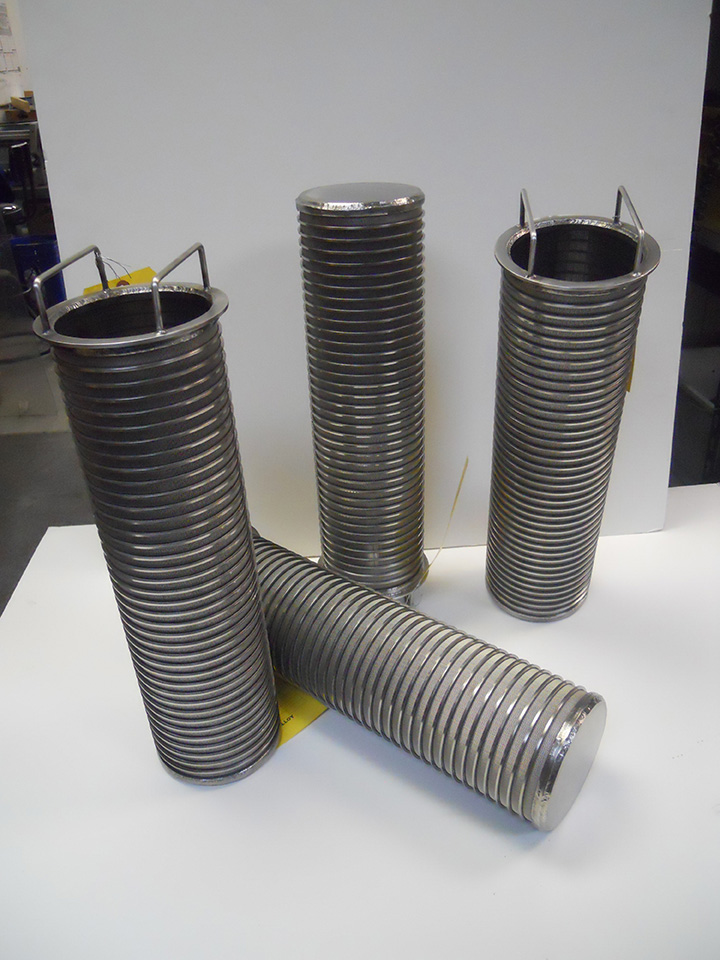

Hasteloy C 276 Wedge Wire Screens

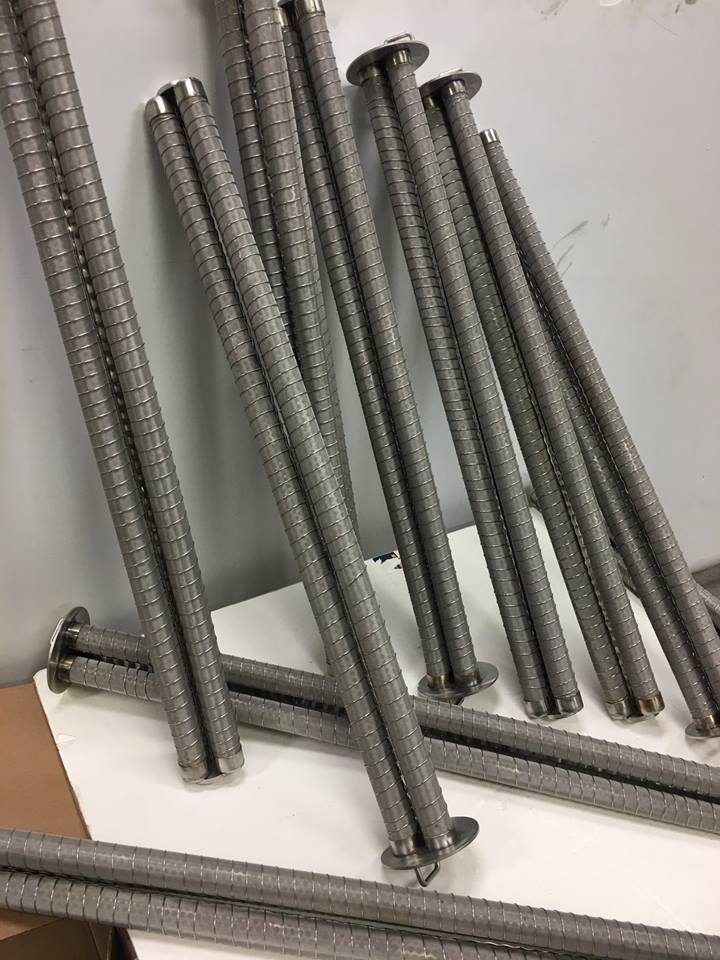

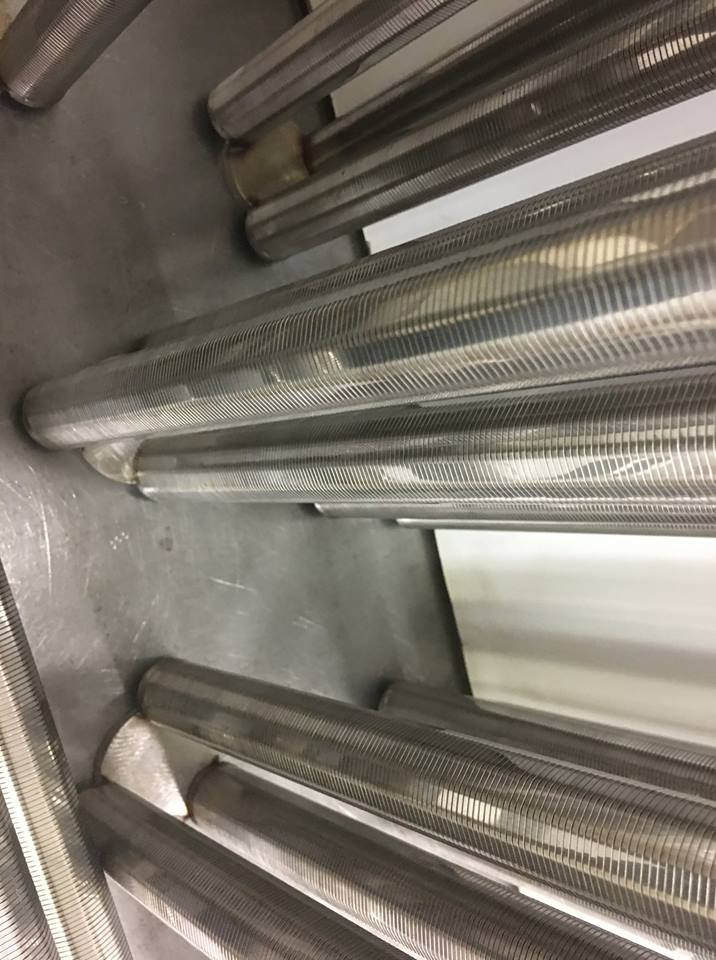

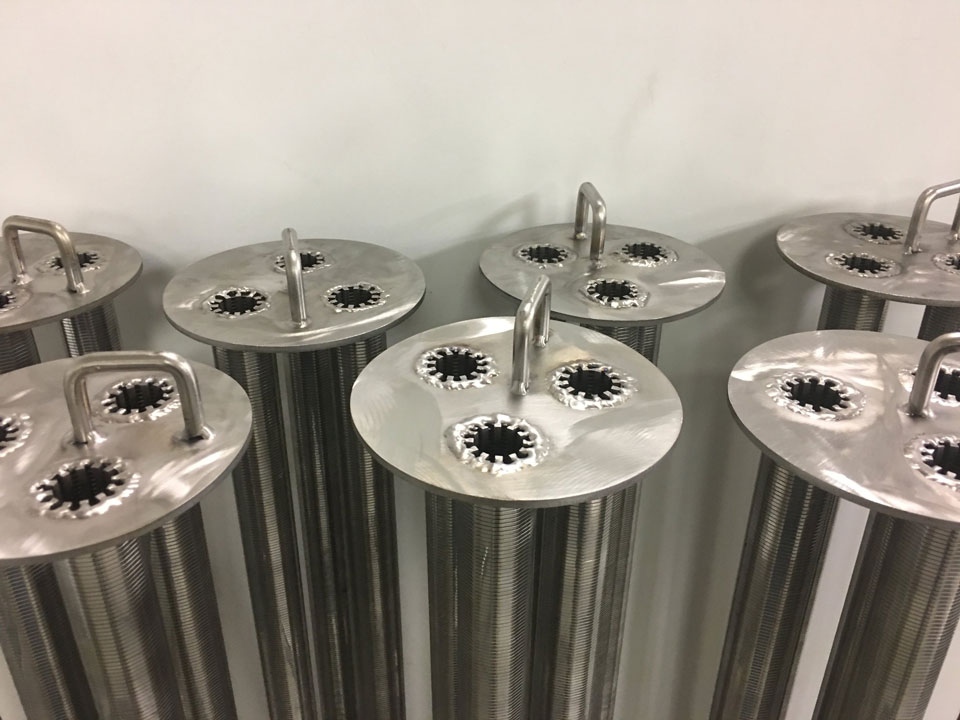

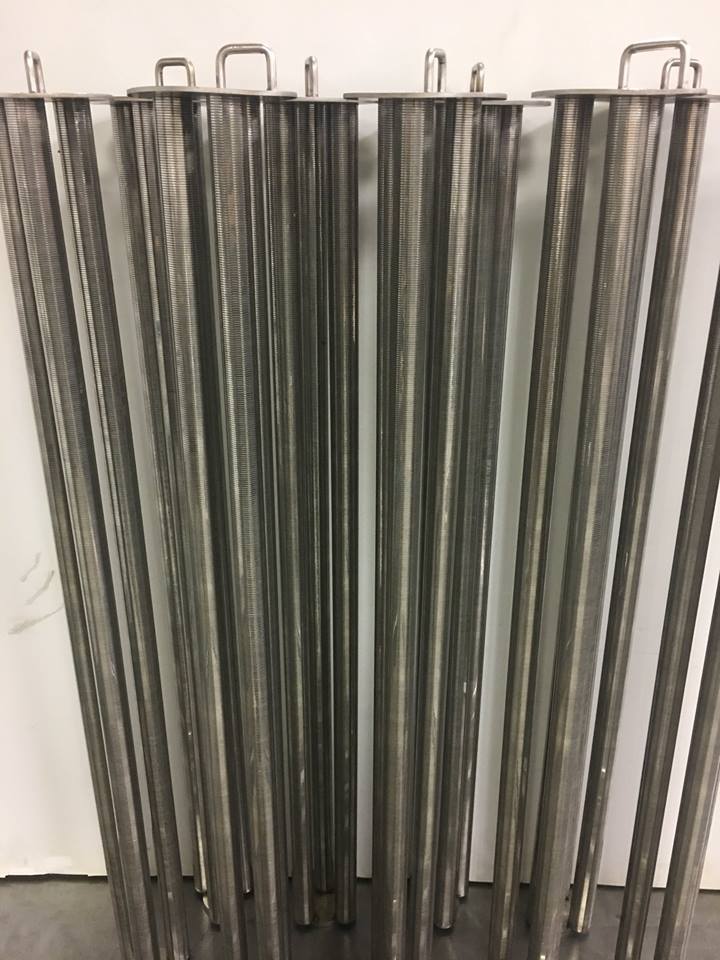

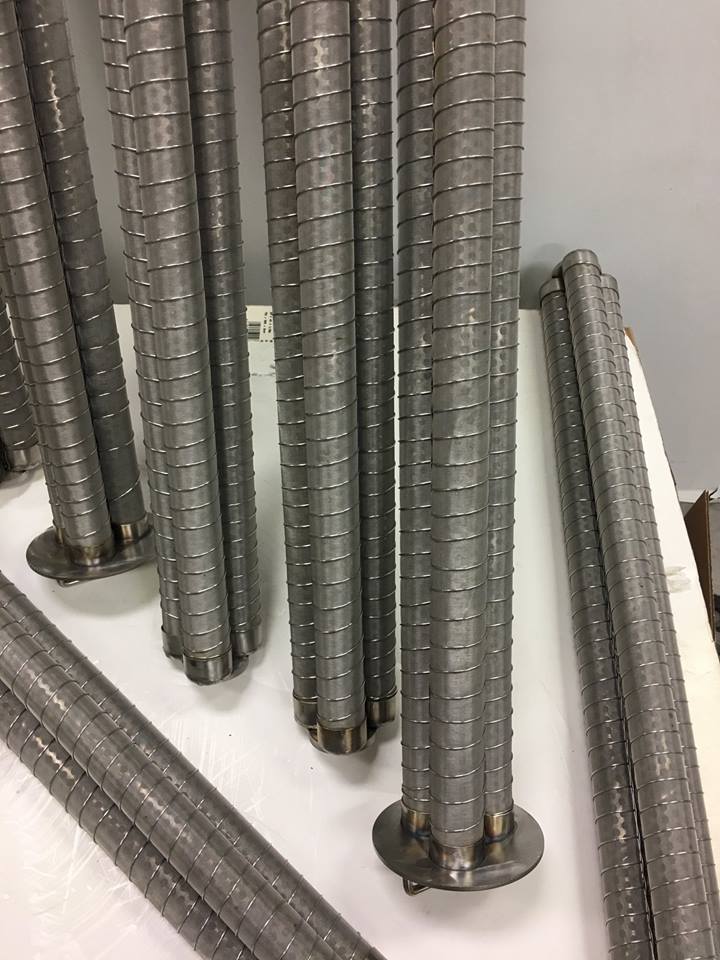

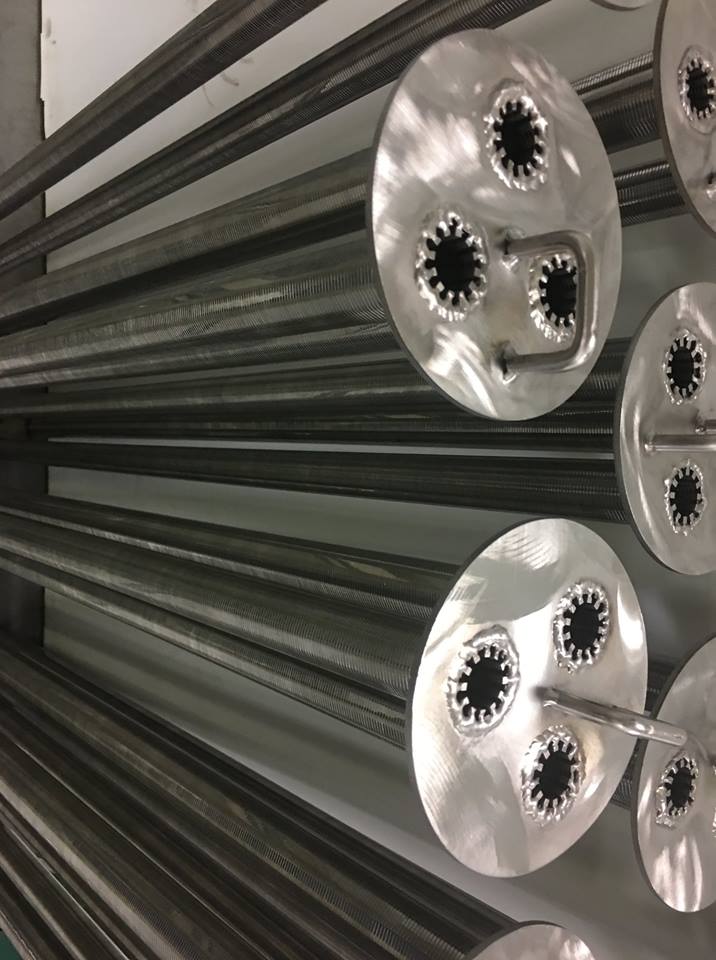

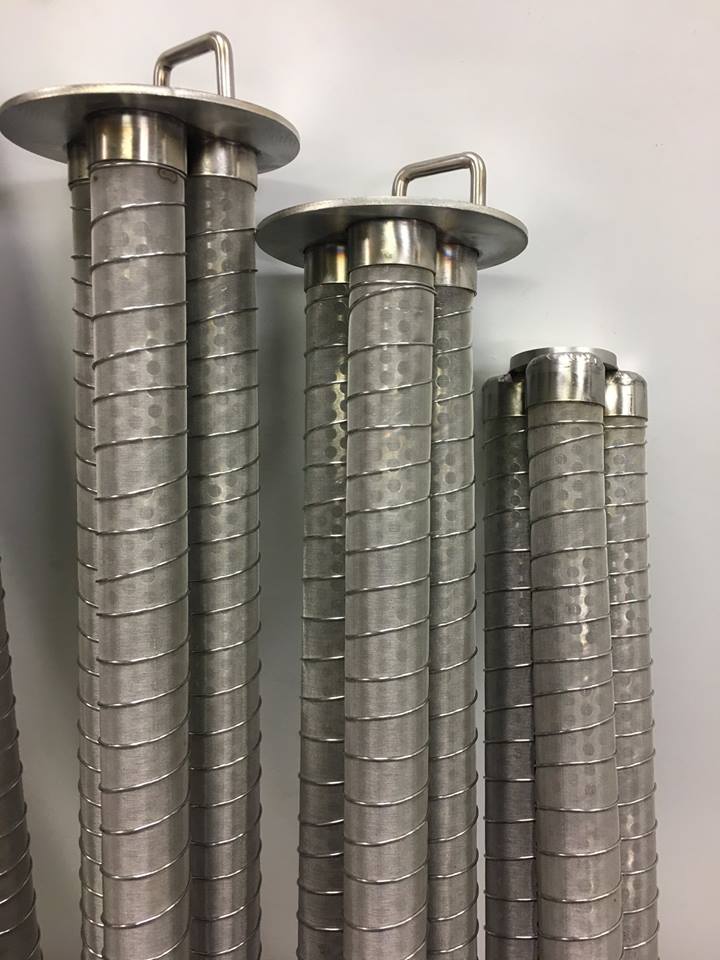

Ronningen-Petter Wedge Wire Screen

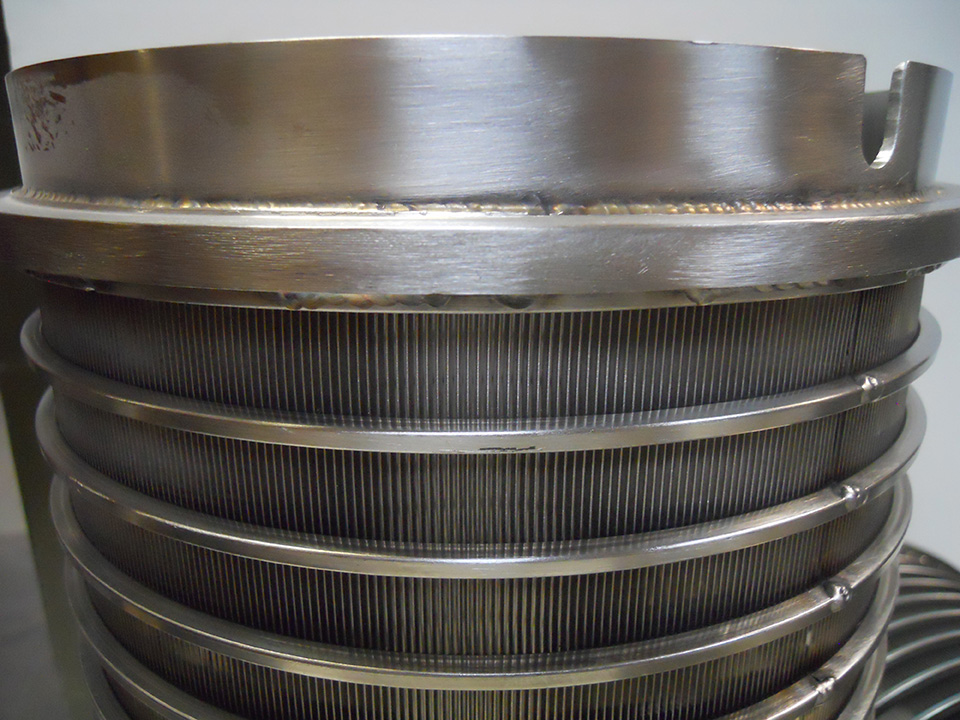

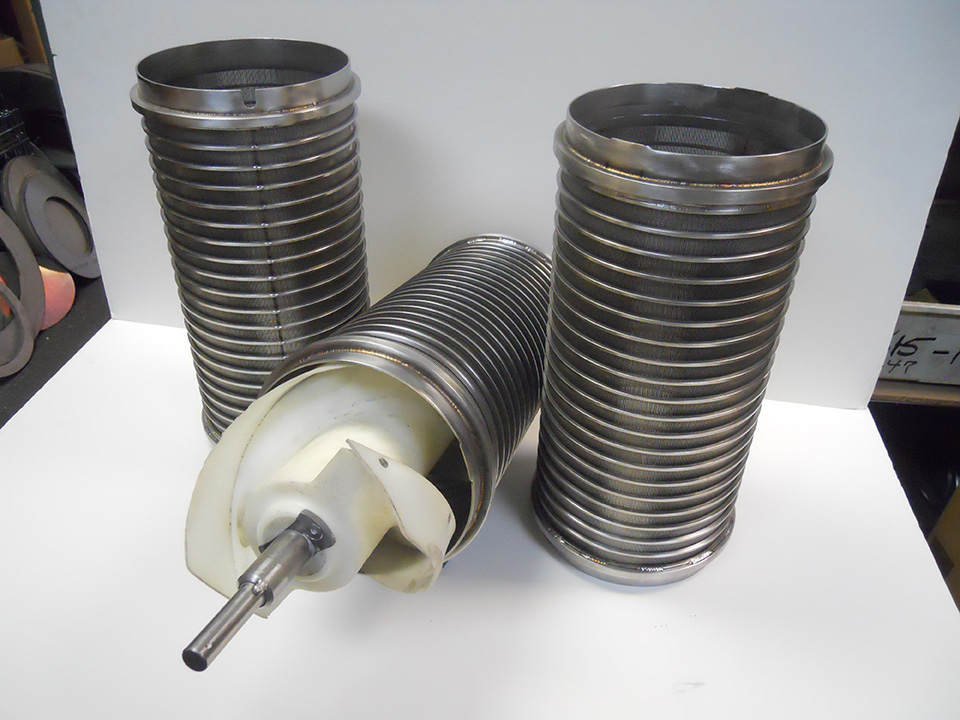

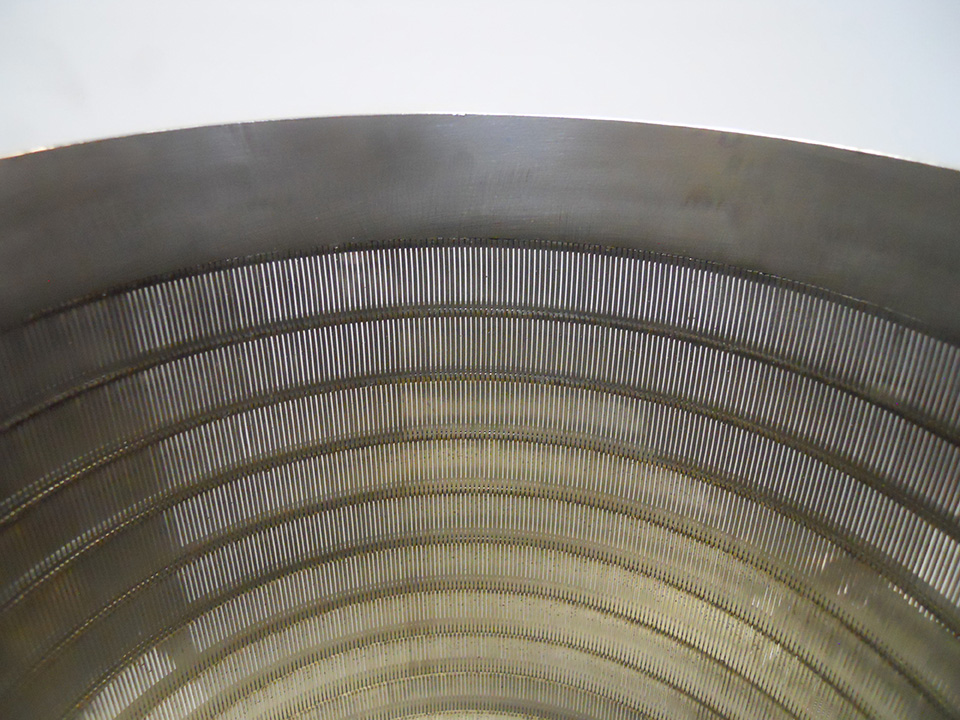

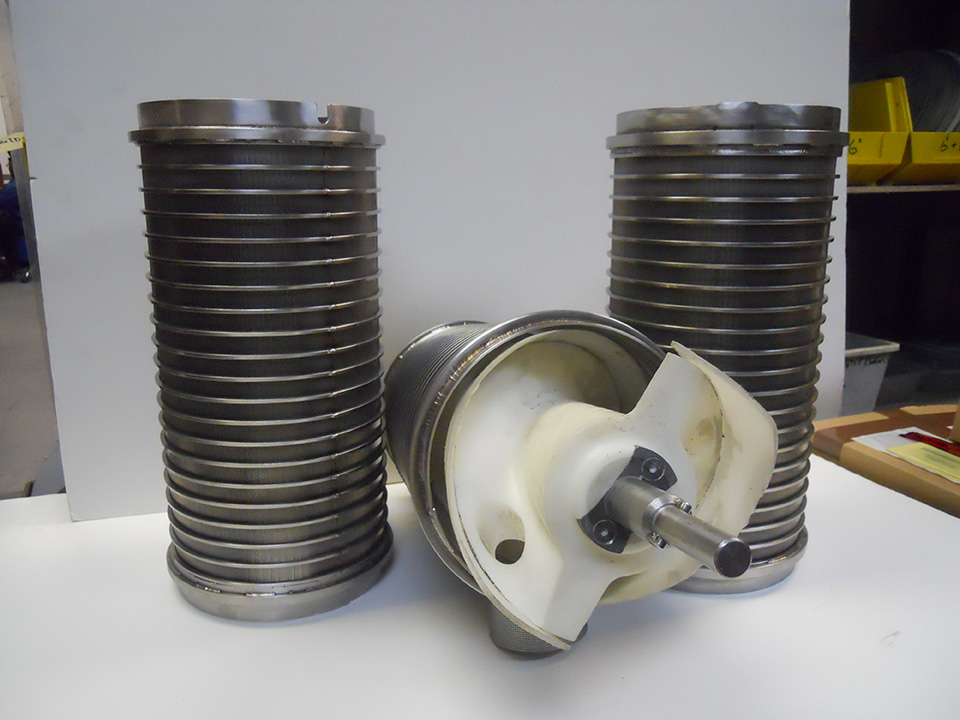

Russell Finex Wedge Wire Replacement Screen
347 H Stainless Steel Wedge Wire Screens with solid tops and bottoms for Heat Exchanges

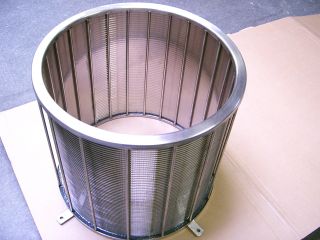

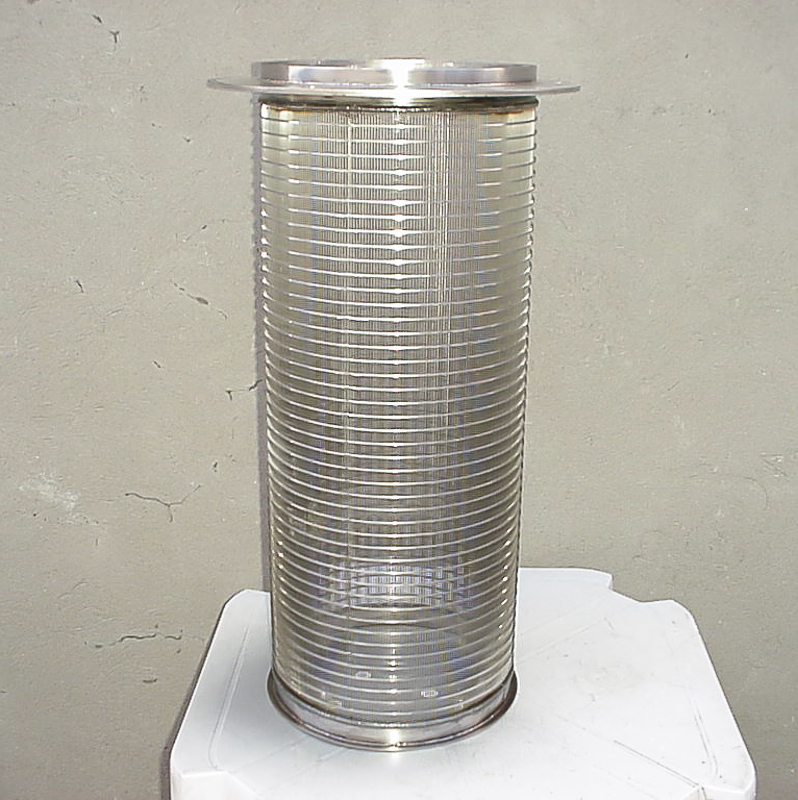

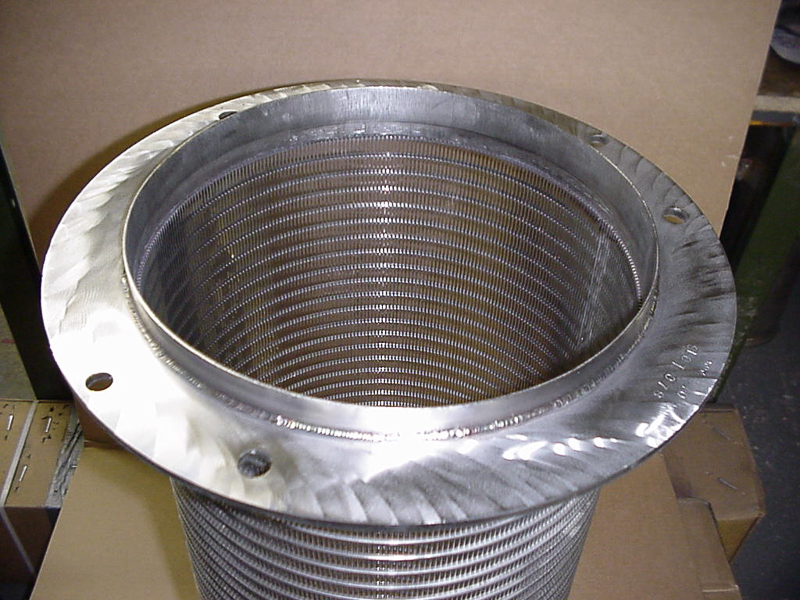

Stainless steel wedge wire flanged baskets.
Stainless steel wedge wire open both ends screen.

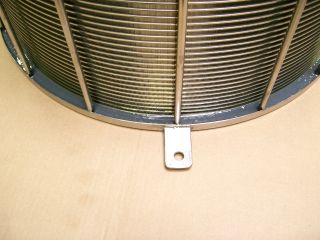

Stainless steel wedge wire open both ends screen with welded legs.

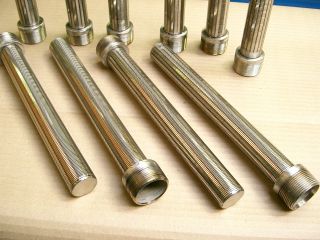

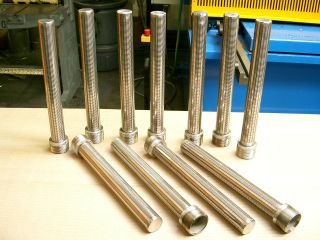

316 stainless steel wedge wires suction strainer with 1.5" male connection.
Sitemap

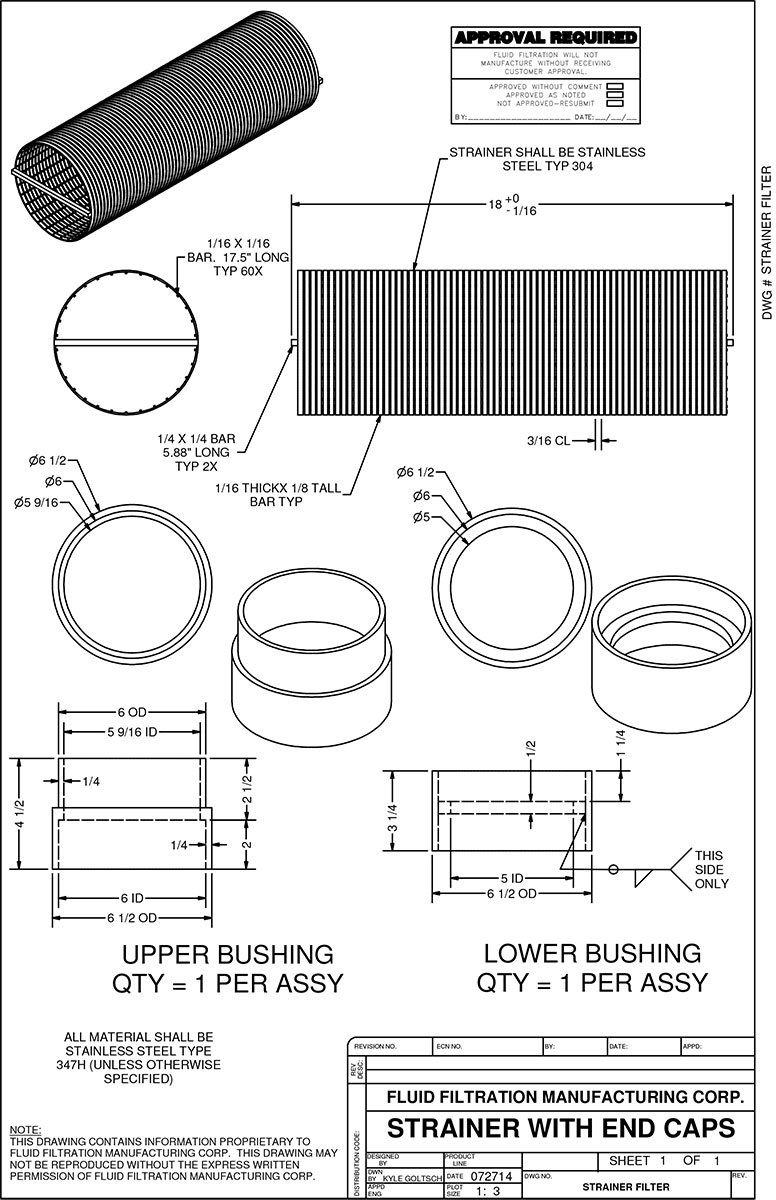

Strainer with End Caps
